BIONIKA DN, Anatomic abutment, angled, 25°, positioned, type-B

Brand characteristics

The BIONIKA DN implant system is compatible with the Dentium® NR Line platform and features a precise conical and hexagonal (Cone & Hex) connection that ensures micromovement-free fitting and stable load transfer.

The 22° cone angle directs forces deep into the implant body, thereby minimising bone stress and enhancing long-term bone preservation.

The spirally micro-grooved, self-locking thread structure provides excellent engagement in the cortical layer, while the self-compressing, self-cutting thread profile ensures outstanding primary stability in the spongy bone.

The platform switching design supports the natural adaptation of soft tissues, creating a biological seal around the implant shoulder.

With its anatomical root-shaped design, bone-condensing thread geometry, and rounded apex, the DN system offers rapid osseointegration, precise placement, and long-term reliability across all clinical indications.

Geometry characteristics

Customisable Abutment for Significant Angle Correction with Natural Contours and Precise Orientation

The Anatomic abutment, angled, 25°, positioned, type-B is an implant-level, customisable (grindable) abutment designed for use in cases involving greater implant angulation. The 25° inclination enables the correction of substantial deviations between the implant and prosthetic axes, while the anatomical form supports the creation of a natural gingival profile and aesthetic appearance.

The Type B indexing means that a defined point on the connection surface is always oriented in the same direction relative to the top of the abutment. This precise orientation allows the abutment to be repositioned accurately every time, which is crucial for the coordinated and functionally reliable construction of multi-implant restorations.

Main Advantages:

• 25° angle correction: Compensates for significant implant axis deviations.
• Anatomical design: Preformed geometry supports natural soft tissue contouring and appearance.
• Indexed orientation (Type B): Defined apex ensures accurate repositioning every time.
• Customisable form: Suitable for individual adjustment in clinical and laboratory settings.
• Implant-level connection: Stable and direct fit to the implant.
• Biocompatible titanium: Sterilisable, durable, and suitable for long-term clinical application.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-B is the ideal choice in situations where the implant axis significantly deviates from the prosthetic axis, and precise orientation is required for both functional reliability and aesthetic results.

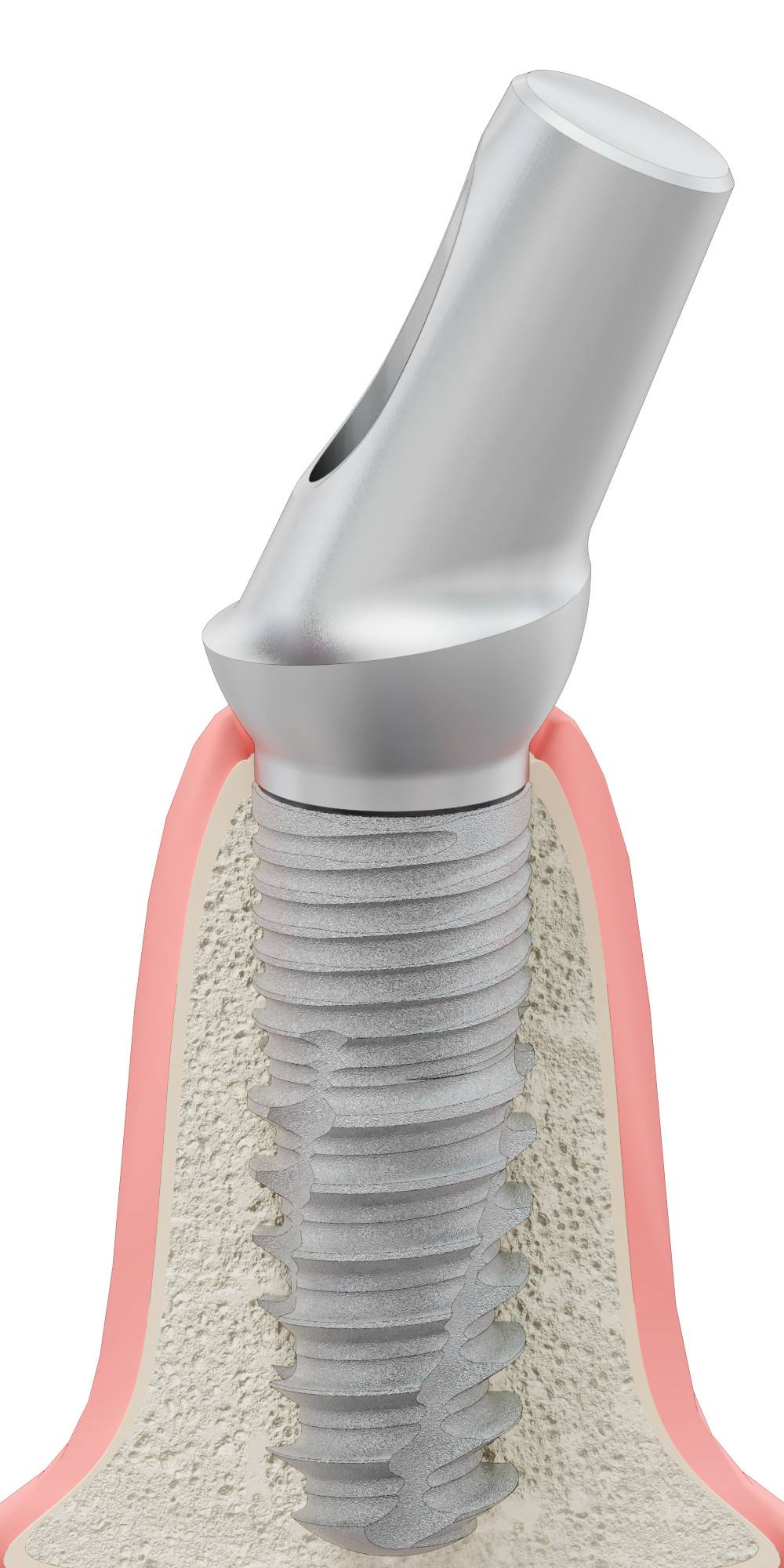

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
