BIONIKA DI UF, Temporary abutment, implant level, non-positioned

Brand characteristics

The BIONIKA DI-UF implant system is compatible with the DIO® UF platform and features an advanced conical connection (Conical-Connection) combined with a hexagonal fit, ensuring micromovement-free load transfer and exceptional stability.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term osseointegration.

The spirally micro-grooved, self-locking, and self-compressing thread structure provides enhanced primary stability, especially in softer bone conditions.

The platform switching design supports the natural adaptation and biological sealing of soft tissues around the implant shoulder, ensuring an aesthetic and hygienic result.

Following the anatomical root shape, the self-cutting and bone-condensing thread profile, together with the rounded implant apex, ensures optimal placement and long-term, stable osseointegration for the DI-UF system.

Geometry characteristics

Non-indexed temporary abutment for implant-level connection

The Temporary abutment, implant level, non-positioned is designed for use with temporary crowns or bridges during the healing period. It can be screwed directly into the implant, providing a stable yet provisional solution until the final prosthetic restoration is ready.

The non-indexed design allows free rotation upon insertion, offering flexibility when exact orientation is not required. This is particularly useful in clinical cases where aesthetic or functional adjustments are needed. The temporary abutment also supports soft tissue contouring and maintains masticatory function during the interim phase.

Main Benefits:

• Implant-level connection: Direct attachment to the implant without the need for an adapter.
• Non-indexed design: Freely rotatable for easier clinical insertion and adjustment.
• Intended for temporary use: Supports tissue shaping, function, and aesthetics before final restoration.
• Biocompatible material: Durable, sterilisable, and safe for short-term clinical use.
• The product includes the screw.

Application:

The Temporary abutment, implant level, non-positioned is an ideal solution in cases where a provisional restoration and soft tissue management are needed during the healing phase, particularly in aesthetically critical areas.

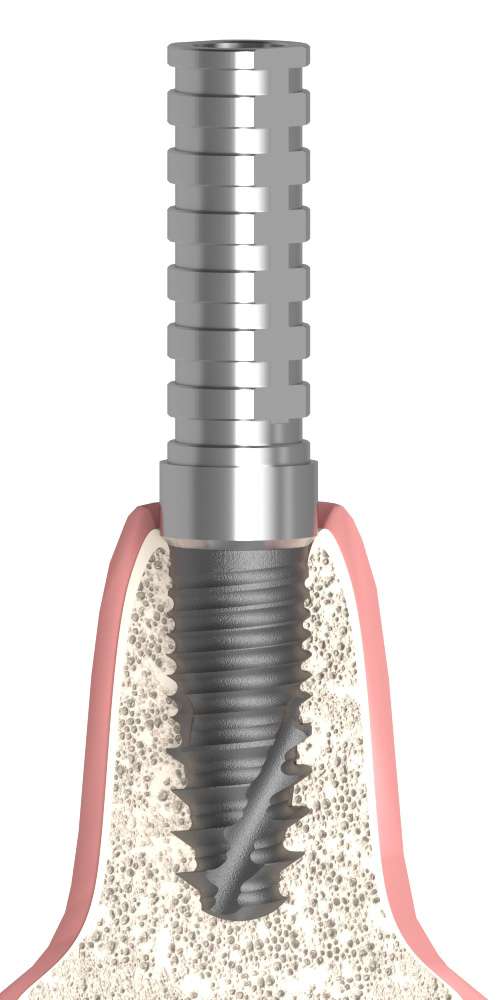

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
