BIONIKA DI UF, Multi-unit SR abutment, straight, screwable

Brand characteristics

The BIONIKA DI-UF implant system is compatible with the DIO® UF platform and features an advanced conical connection (Conical-Connection) combined with a hexagonal fit, ensuring micromovement-free load transfer and exceptional stability.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term osseointegration.

The spirally micro-grooved, self-locking, and self-compressing thread structure provides enhanced primary stability, especially in softer bone conditions.

The platform switching design supports the natural adaptation and biological sealing of soft tissues around the implant shoulder, ensuring an aesthetic and hygienic result.

Following the anatomical root shape, the self-cutting and bone-condensing thread profile, together with the rounded implant apex, ensures optimal placement and long-term, stable osseointegration for the DI-UF system.

Geometry characteristics

Straight SR-Type Multi-Unit Abutment with Screw-In Design for Cement-Free Prosthetic Systems

The Multi-unit SR abutment, straight, screwable is a self-engaging, screw-in prosthetic abutment with a straight profile, designed to connect to an implant or intermediate SR (Screw-Retained) multi-unit system. Its screw-in design enables secure fixation to the platform without the need for an additional retaining screw, while the straight geometry makes it an ideal solution when the implant axis is well aligned and no angulation correction is required.

This SR-type abutment is particularly well-suited for fully screw-retained restorations where the final prosthesis is accessible and cement-free. This significantly simplifies potential removal, maintenance, and reinsertion, especially in restorations involving multiple implants.

Main Advantages:

• SR system compatibility: Ideal for cement-free, screw-retained restorations.
• Straight alignment: Easy and direct fit when angulation correction is not necessary.
• Screw-in design: The abutment features an internal thread and does not require a separate retaining screw.
• Suitable for multi-unit restorations: Especially recommended for full-arch and implant-supported bridges.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Indications:

The Multi-unit SR abutment, straight, screwable is an excellent choice for cement-free, screw-retained prosthetic restorations on multiple implants where the implant angulation allows for straight insertion. It offers a stable, easy-to-use solution that supports efficient and reliable clinical workflows.

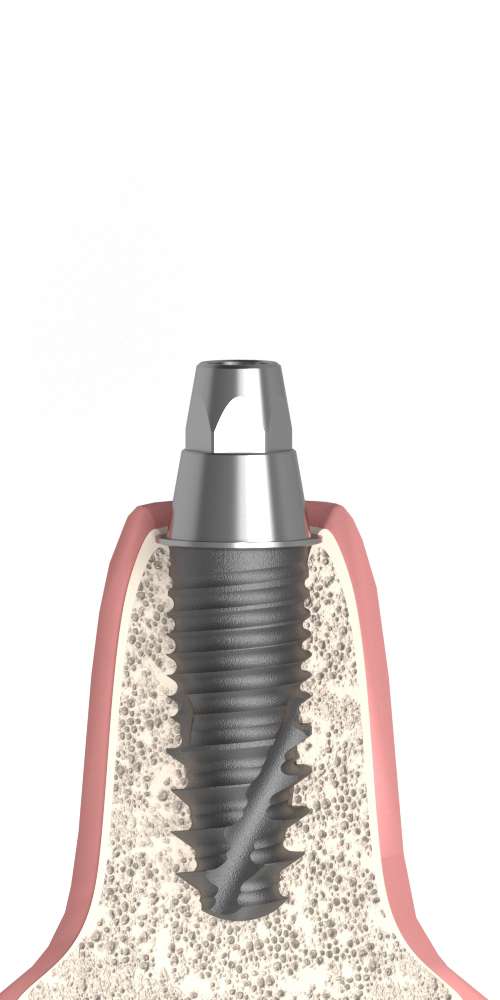

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected specifications.
