BIONIKA DI UF, Multi-unit SR abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA DI-UF implant system is compatible with the DIO® UF platform and features an advanced conical connection (Conical-Connection) combined with a hexagonal fit, ensuring micromovement-free load transfer and exceptional stability.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term osseointegration.

The spirally micro-grooved, self-locking, and self-compressing thread structure provides enhanced primary stability, especially in softer bone conditions.

The platform switching design supports the natural adaptation and biological sealing of soft tissues around the implant shoulder, ensuring an aesthetic and hygienic result.

Following the anatomical root shape, the self-cutting and bone-condensing thread profile, together with the rounded implant apex, ensures optimal placement and long-term, stable osseointegration for the DI-UF system.

Geometry characteristics

Angled, Indexed SR-Type Abutment for Screw-Retained Restorations with B-Type Orientation

The Multi-unit SR abutment, angled, positioned, type-B is an angulated prosthetic abutment for the SR (Screw-Retained) system, designed to compensate for non-ideal implant angulation. Its angled form allows alignment of the prosthetic axis with functional and aesthetic requirements, while providing precise indexed positioning.

The B-Type orientation ensures that a specific point (corner) on the connection surface always returns to the same position relative to the top of the abutment upon reinsertion. This guarantees consistent and repeatable positioning of the restoration, which is particularly important in multi-implant, screw-retained solutions.

A key benefit of the SR system is that the entire prosthetic structure can be screw-retained without cement, allowing restorations to remain accessible and removable for maintenance or servicing. The lower part of the abutment fits the SR-compatible multi-unit platform, while the upper part is designed to accept the screw-retained prosthetic component.

Main Advantages:

• Angulation correction: Enables compensation for implant misalignment.
• B-Type orientation: The connector’s corner always aligns in the same direction on reinsertion.
• SR system compatibility: Suitable for cement-free, screw-retained restorations.
• Precise positioning: Ensures optimal fit for multi-implant prosthetics.
• Biocompatible titanium: Durable, sterilisable, and tissue-friendly material.
• The product includes the retaining screw.

Indications:

The Multi-unit SR abutment, angled, positioned, type-B is the ideal solution for screw-retained, angulated restorations supported by multiple implants, where precise orientation, removability, and full system compatibility are essential.

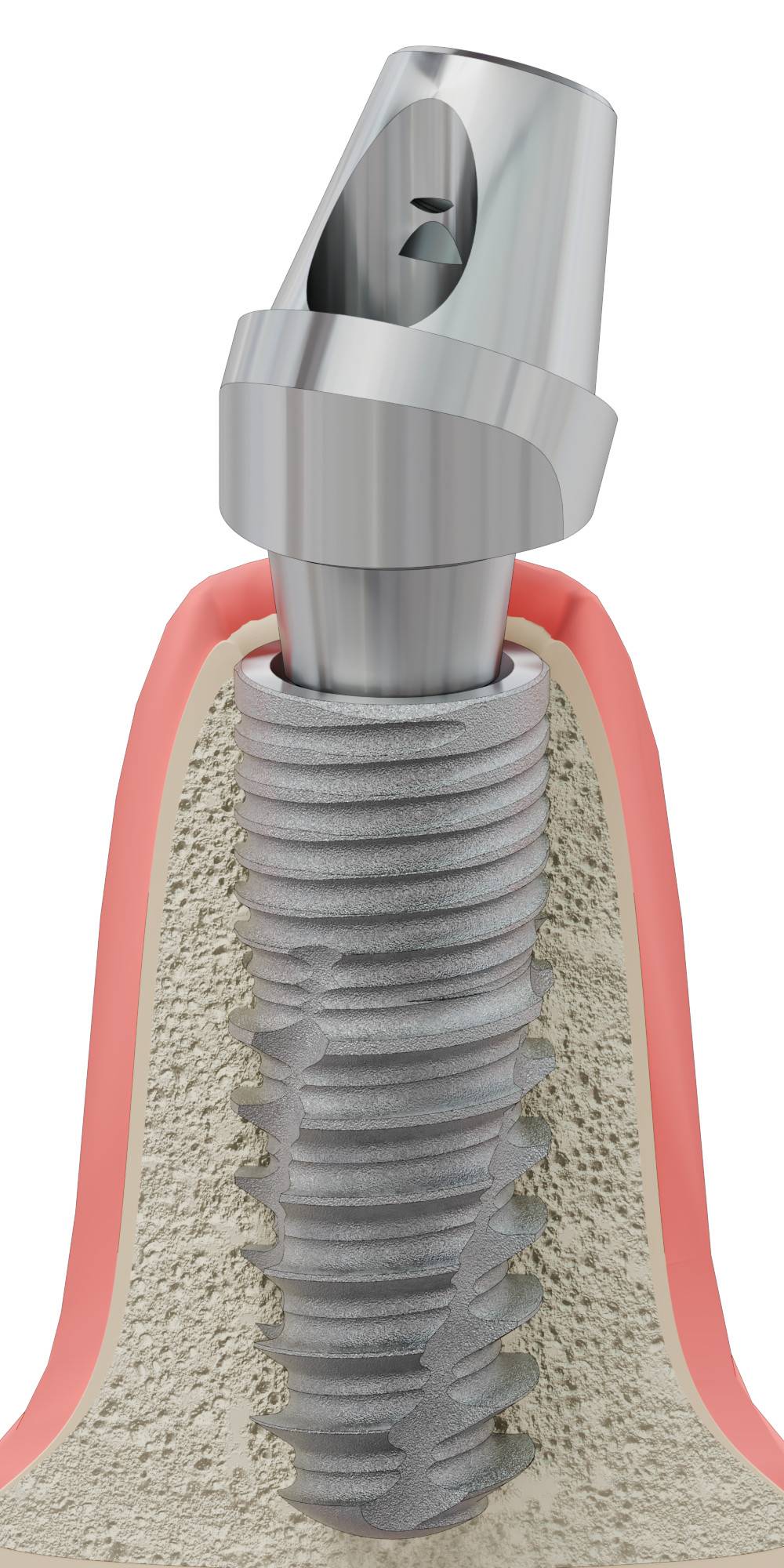

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected specifications.
