BIONIKA DI UF, Multi-Compact abutment, positioned, type-B

Brand characteristics

The BIONIKA DI-UF implant system is compatible with the DIO® UF platform and features an advanced conical connection (Conical-Connection) combined with a hexagonal fit, ensuring micromovement-free load transfer and exceptional stability.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term osseointegration.

The spirally micro-grooved, self-locking, and self-compressing thread structure provides enhanced primary stability, especially in softer bone conditions.

The platform switching design supports the natural adaptation and biological sealing of soft tissues around the implant shoulder, ensuring an aesthetic and hygienic result.

Following the anatomical root shape, the self-cutting and bone-condensing thread profile, together with the rounded implant apex, ensures optimal placement and long-term, stable osseointegration for the DI-UF system.

Geometry characteristics

Positioned Type B Multi-Compact Base for Use with Replaceable Prosthetic Components

The Multi-Compact abutment, positioned, type-B is an advanced prosthetic component within the Multi-Compact system. Its internally threaded base design allows various threaded prosthetic tops to be attached, enabling a single lower unit to serve as the foundation for multiple restorative options. This modular design is particularly valuable in complex cases where prosthetic requirements may vary.

The Positioned Type B variant ensures that a designated peak of the connection surface aligns identically with the upper part of the abutment upon every reinsertion. This ensures precise orientation, which is critical in multi-implant, screw-retained restorations—especially when symmetry and axis alignment are essential for optimal aesthetic and functional outcomes.

A key advantage of the Multi-Compact system is that the base remains a fixed component, while the upper element can be freely selected or replaced based on the clinical situation. This allows for simplified inventory and fast, customized prosthetic solutions.

Main Advantages:

• Internally threaded design: Compatible with a variety of replaceable top components.
• Type B positioning: A specific peak of the connection interface always aligns consistently.
• Flexible system: A single base supports multiple clinical applications.
• Stable, low-profile design: Reliable foundation for hybrid or full-arch prosthetics.
• Biocompatible titanium: Durable, tissue-friendly, and sterilizable material.
• Includes fixation screw.

Indications:

The Multi-Compact abutment, positioned, type-B is an ideal choice for multi-implant screw-retained restorations where angle correction, modularity, and reinsertion accuracy are essential. It is particularly advantageous in cases requiring coordinated multi-component restorations with customizable top geometries.

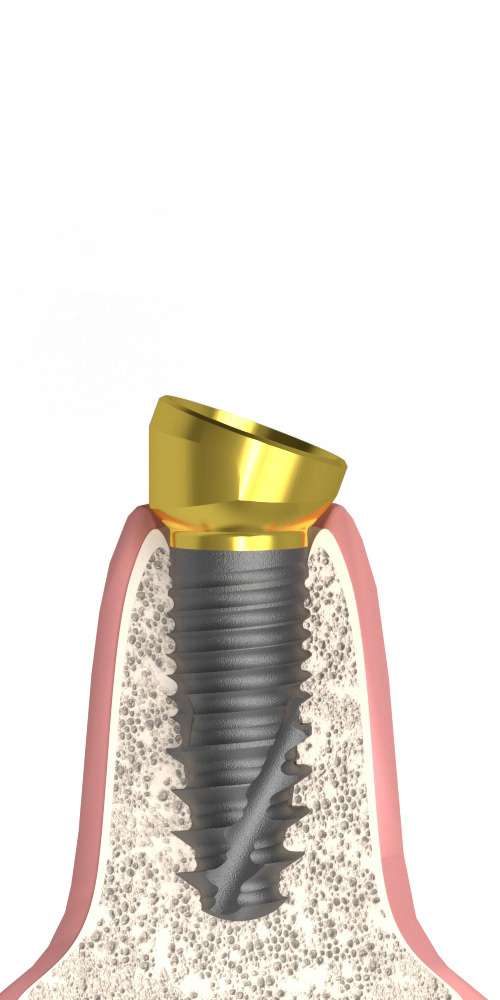

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
