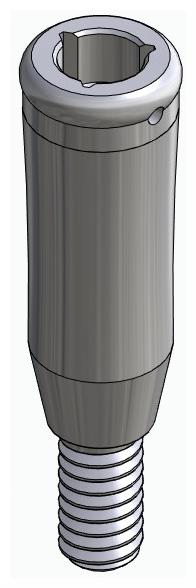

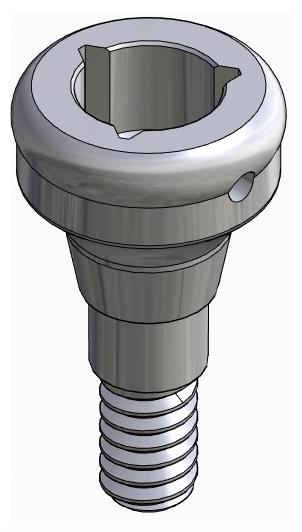

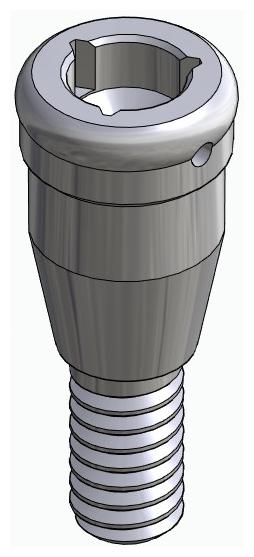

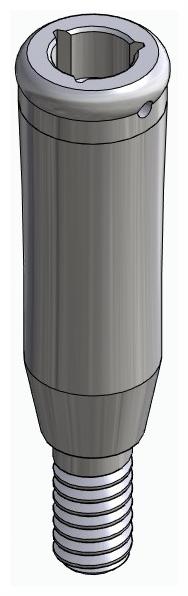

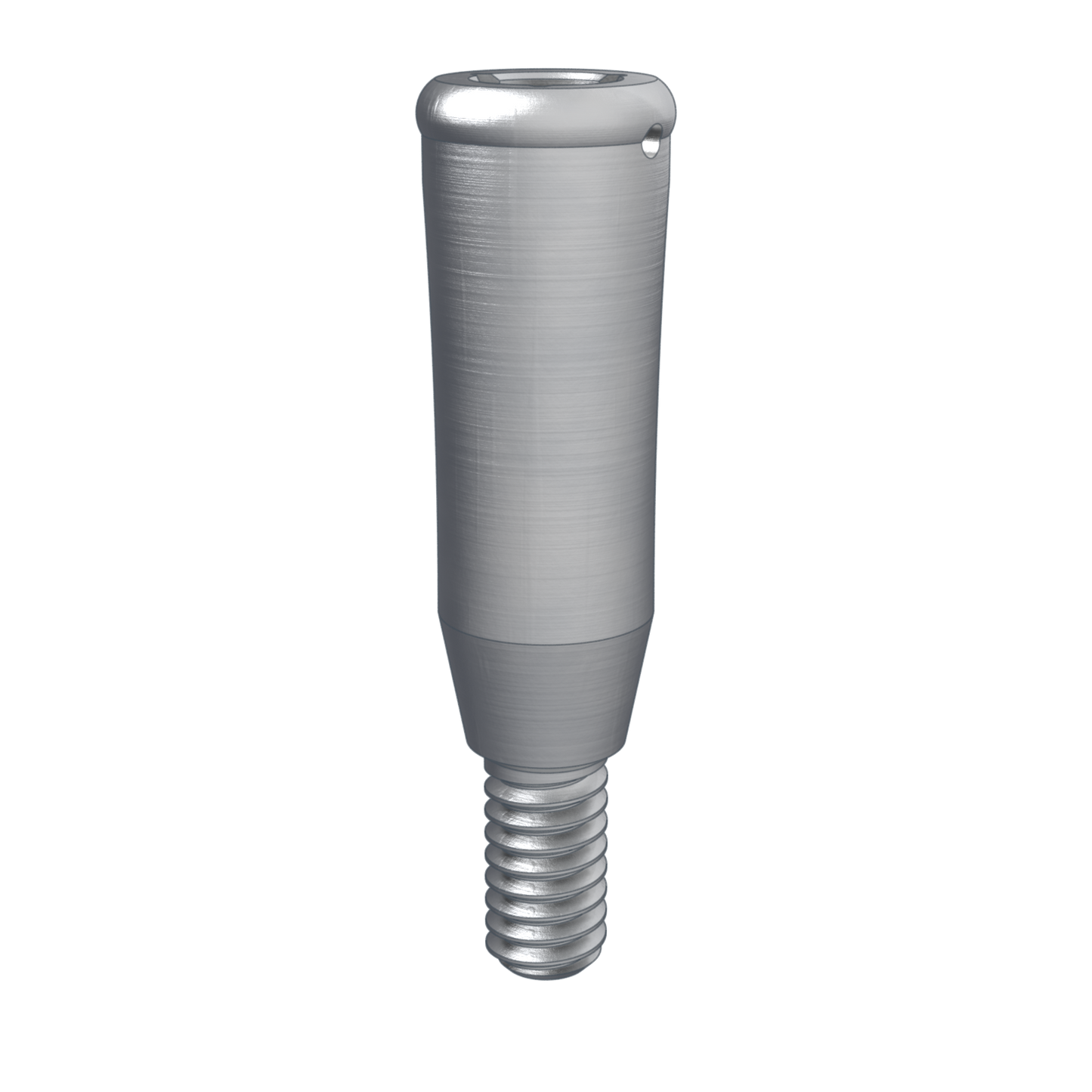

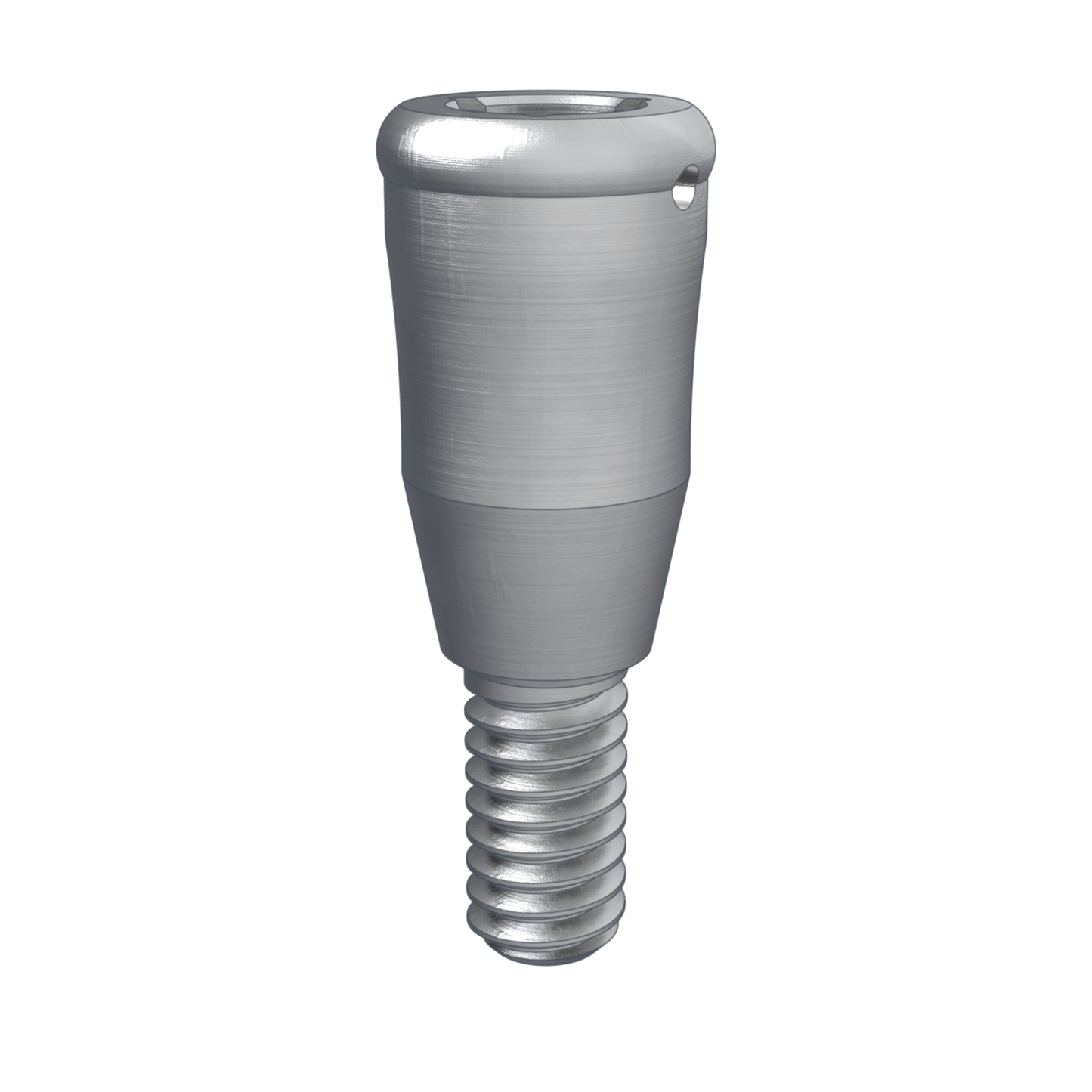

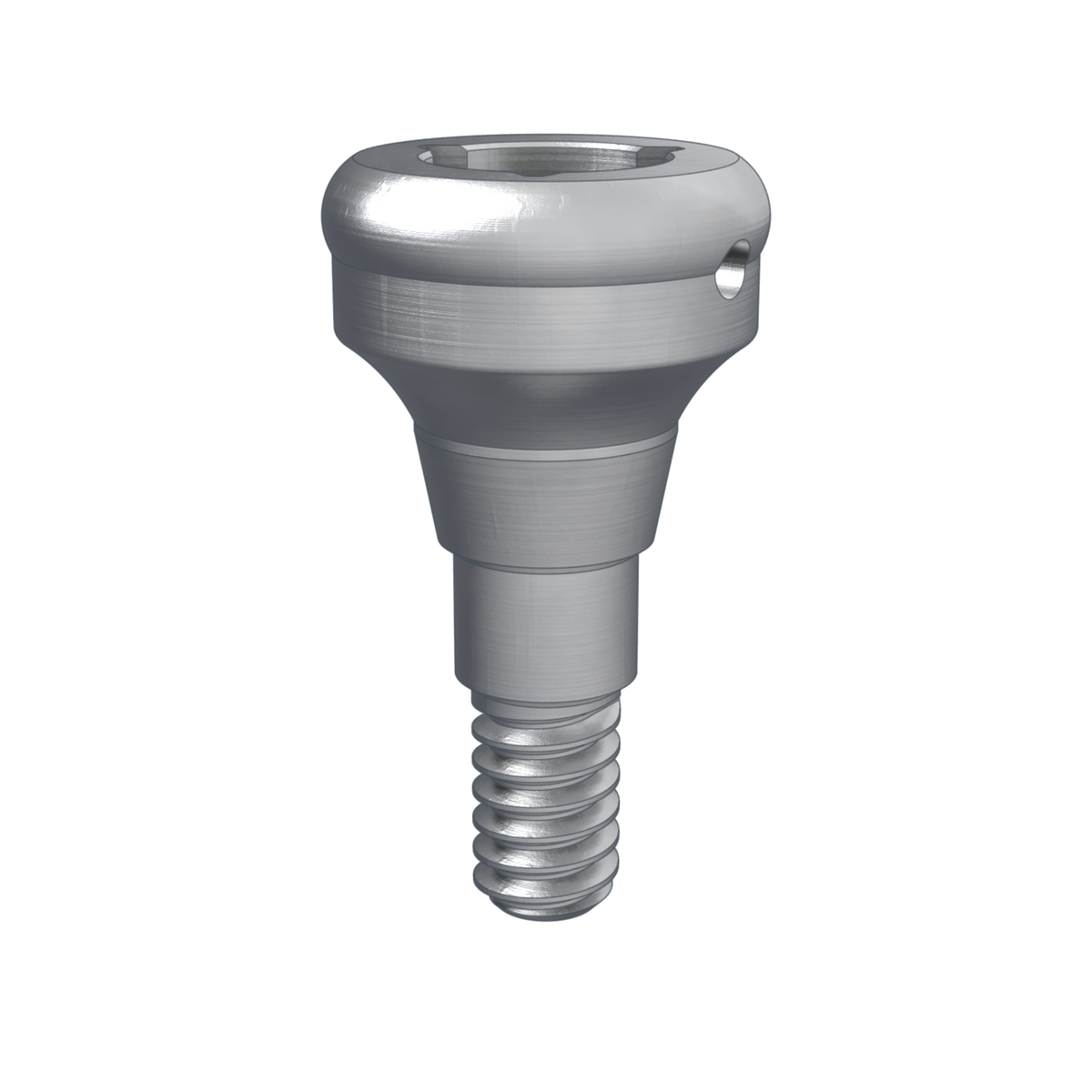

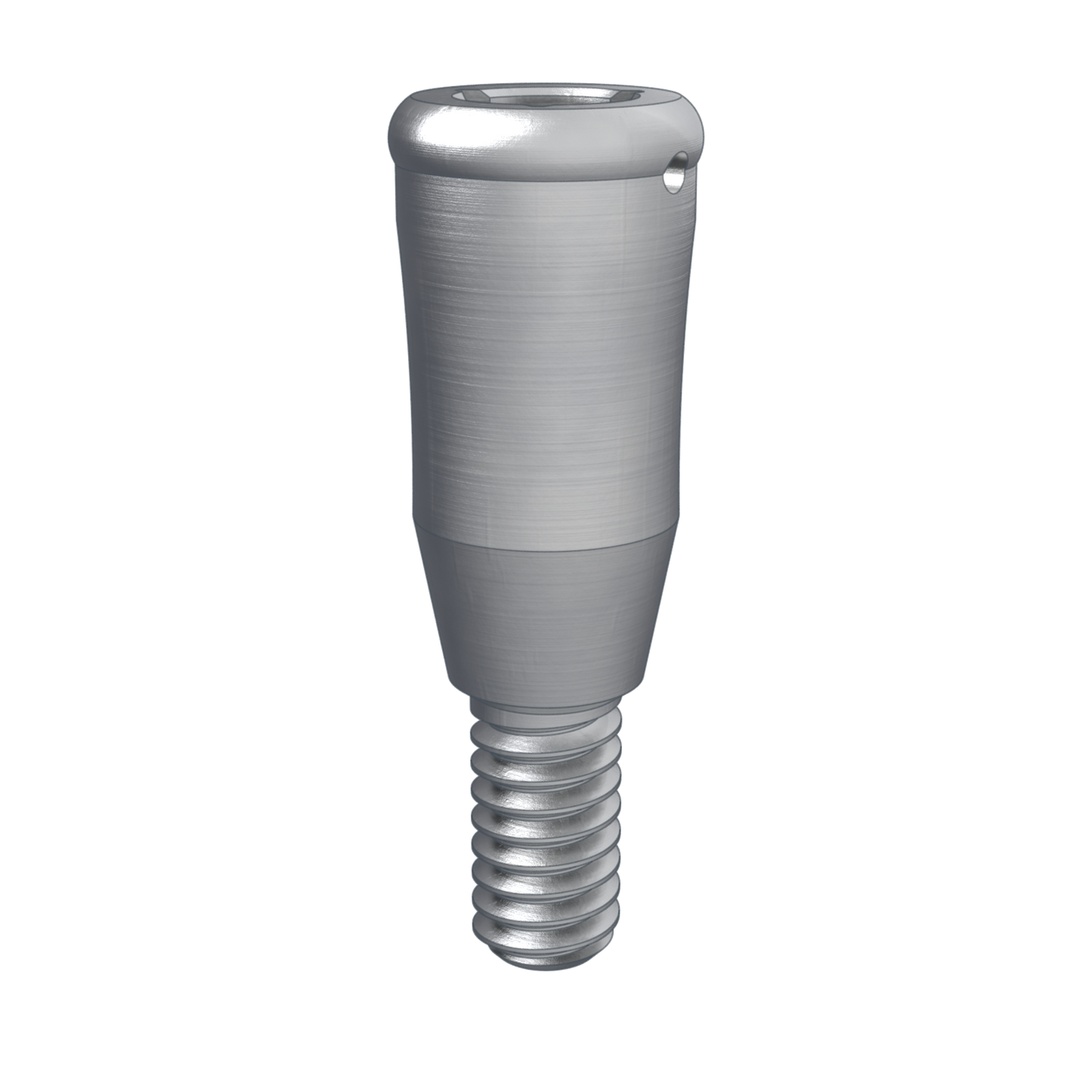

BIONIKA DI UF, Locator abutment, straight

Brand characteristics

The BIONIKA DI-UF implant system is compatible with the DIO® UF platform and features an advanced conical connection (Conical-Connection) combined with a hexagonal fit, ensuring micromovement-free load transfer and exceptional stability.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term osseointegration.

The spirally micro-grooved, self-locking, and self-compressing thread structure provides enhanced primary stability, especially in softer bone conditions.

The platform switching design supports the natural adaptation and biological sealing of soft tissues around the implant shoulder, ensuring an aesthetic and hygienic result.

Following the anatomical root shape, the self-cutting and bone-condensing thread profile, together with the rounded implant apex, ensures optimal placement and long-term, stable osseointegration for the DI-UF system.

Geometry characteristics

Precision Attachment with Low Profile Design for Removable Dentures

The Locator abutment, straight is an implant-level precision component designed for securing removable prostheses, compatible with the well-established Locator retention system. Its straight configuration is ideal when the implant and prosthesis axes are well aligned, and no angulation correction is required.

The low-profile design enhances patient comfort, especially in cases with limited interocclusal space. The Locator system functions with flexible retention inserts that are interchangeable and available in various retention strengths, allowing customisation of retention and removability to suit individual anatomical and clinical needs.

Main Advantages:

• Implant-level connection: Provides a stable, direct fit to the implant.
• Straight design: Suitable for cases without the need for angulation correction.
• Locator compatibility: Works with proven, replaceable retention inserts.
• Low profile: Ideal for limited vertical space and ensures patient comfort.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Application Area:

The Locator abutment, straight is an excellent solution for retaining removable dentures where reliable retention, low profile, and user-friendly handling are key. It is suitable for both fully and partially edentulous cases.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
