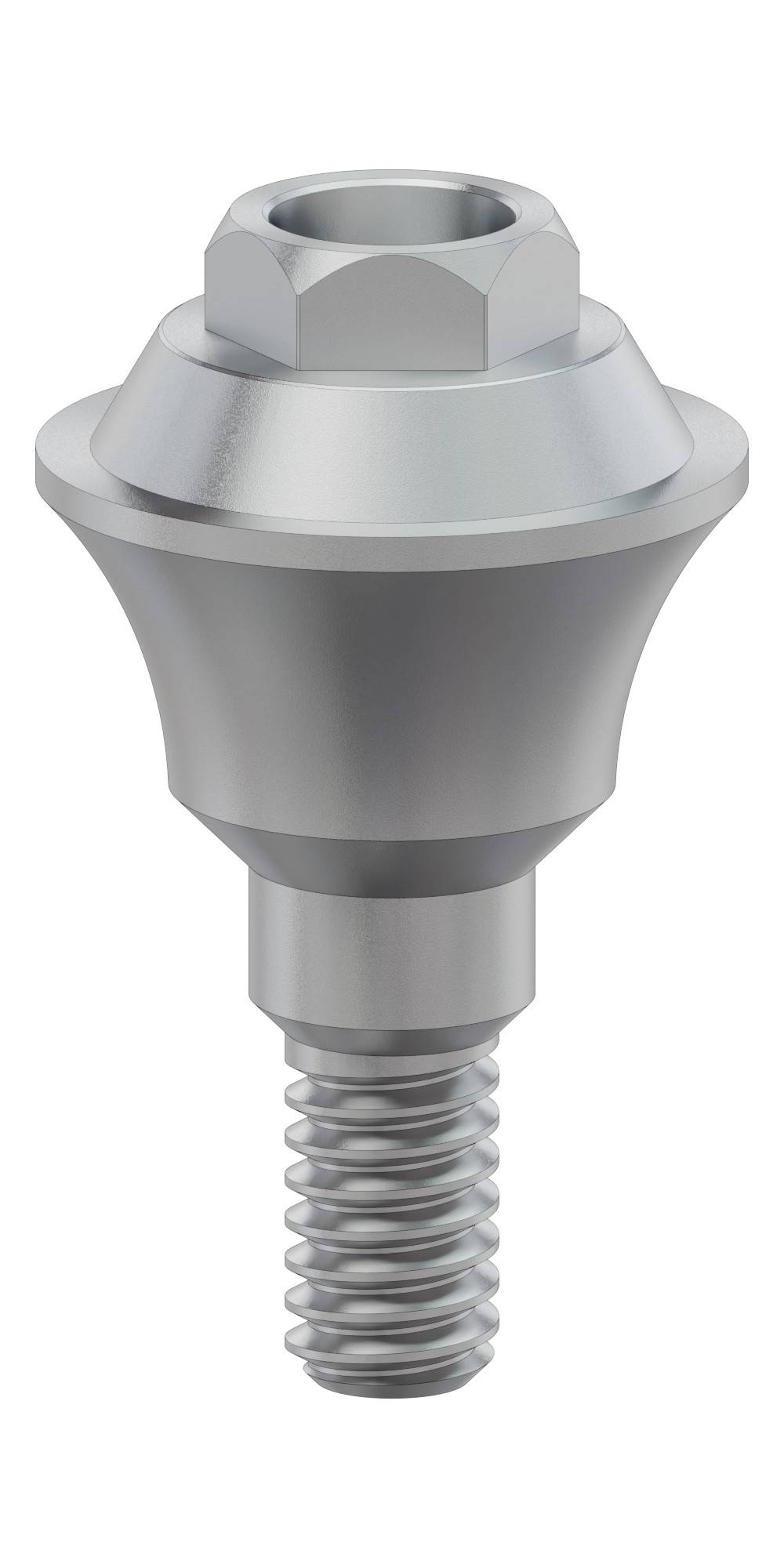

BIONIKA DI UF, Bite regsitration abutment, screwable, implant level

Brand characteristics

The BIONIKA DI-UF implant system is compatible with the DIO® UF platform and features an advanced conical connection (Conical-Connection) combined with a hexagonal fit, ensuring micromovement-free load transfer and exceptional stability.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term osseointegration.

The spirally micro-grooved, self-locking, and self-compressing thread structure provides enhanced primary stability, especially in softer bone conditions.

The platform switching design supports the natural adaptation and biological sealing of soft tissues around the implant shoulder, ensuring an aesthetic and hygienic result.

Following the anatomical root shape, the self-cutting and bone-condensing thread profile, together with the rounded implant apex, ensures optimal placement and long-term, stable osseointegration for the DI-UF system.

Geometry characteristics

Screw-Retained Bite Registration Abutment for Implant-Level Use

The Bite regsitration abutment, screwable, implant level is a specialised component used to determine maxillomandibular relations during implant-supported prosthetic procedures. It is directly screwed into the implant, providing stable fixation throughout the bite registration process, eliminating inaccuracies caused by displacement.

The bite record enables the dental laboratory to produce a model that accurately reflects the patient’s oral anatomy—essential for creating a well-fitting, functional, and aesthetic restoration. The implant-level design allows for direct connection without the need for additional adapters.

Main Benefits:

• Implant-level retention: Direct connection to the implant – no accessories required.
• Screw-retained design: Provides a stable, non-moving position during registration.
• Accurate position transfer: Registered occlusion can be reliably transferred to the lab process.
• Biocompatible material: Sterilisable and suitable for clinical applications.
• The product includes the screw.

Application:

The Bite regsitration abutment, screwable, implant level is the ideal solution for single or multi-unit implant cases where a precise maxillomandibular registration is essential for fabricating the final prosthesis.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
