BIONIKA DI UF, Ball abutment, OC, normal

Brand characteristics

The BIONIKA DI-UF implant system is compatible with the DIO® UF platform and features an advanced conical connection (Conical-Connection) combined with a hexagonal fit, ensuring micromovement-free load transfer and exceptional stability.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term osseointegration.

The spirally micro-grooved, self-locking, and self-compressing thread structure provides enhanced primary stability, especially in softer bone conditions.

The platform switching design supports the natural adaptation and biological sealing of soft tissues around the implant shoulder, ensuring an aesthetic and hygienic result.

Following the anatomical root shape, the self-cutting and bone-condensing thread profile, together with the rounded implant apex, ensures optimal placement and long-term, stable osseointegration for the DI-UF system.

Geometry characteristics

Implant-level ball abutment designed for securing removable dentures with OT-CAP retention

The Ball abutment, OC, normal is an implant-level attachment for removable prostheses, fully compatible with the OT-CAP retention system. The standard version features a 2.5 mm diameter ball head, offering reliable retention for most clinical scenarios and ensuring long-term stability for the denture during daily use.

OC-type ball abutments are used in combination with the OT-CAP system’s specialized plastic matrices, which are designed to fit the ball head precisely. This configuration allows the patient to easily remove and reinsert the prosthesis, while maintaining secure retention throughout daily wear.

Main Benefits:

• Standard ball size (Ø2.5 mm): Excellent retention force and broad clinical applicability.
• OT-CAP compatibility: Proven and user-friendly retention system.
• Implant-level connection: Secure and precise fit with the implant.
• Ideal for removable prostheses: Easy for the patient to manage, yet stable and reliable.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Application:

The Ball abutment, OC, normal is an excellent solution for retaining full or partial removable dentures when strong and reliable retention is required, and the implant angulation is suitable for ball attachment use.

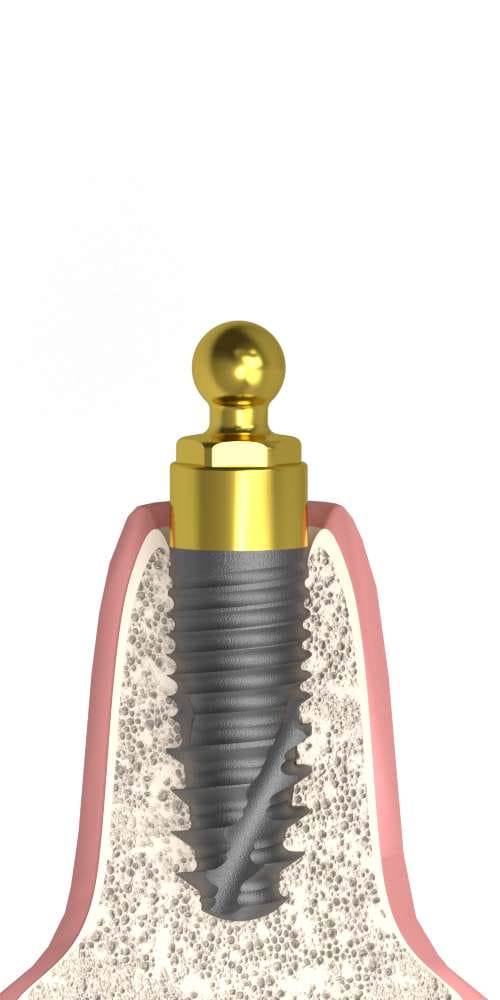

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
