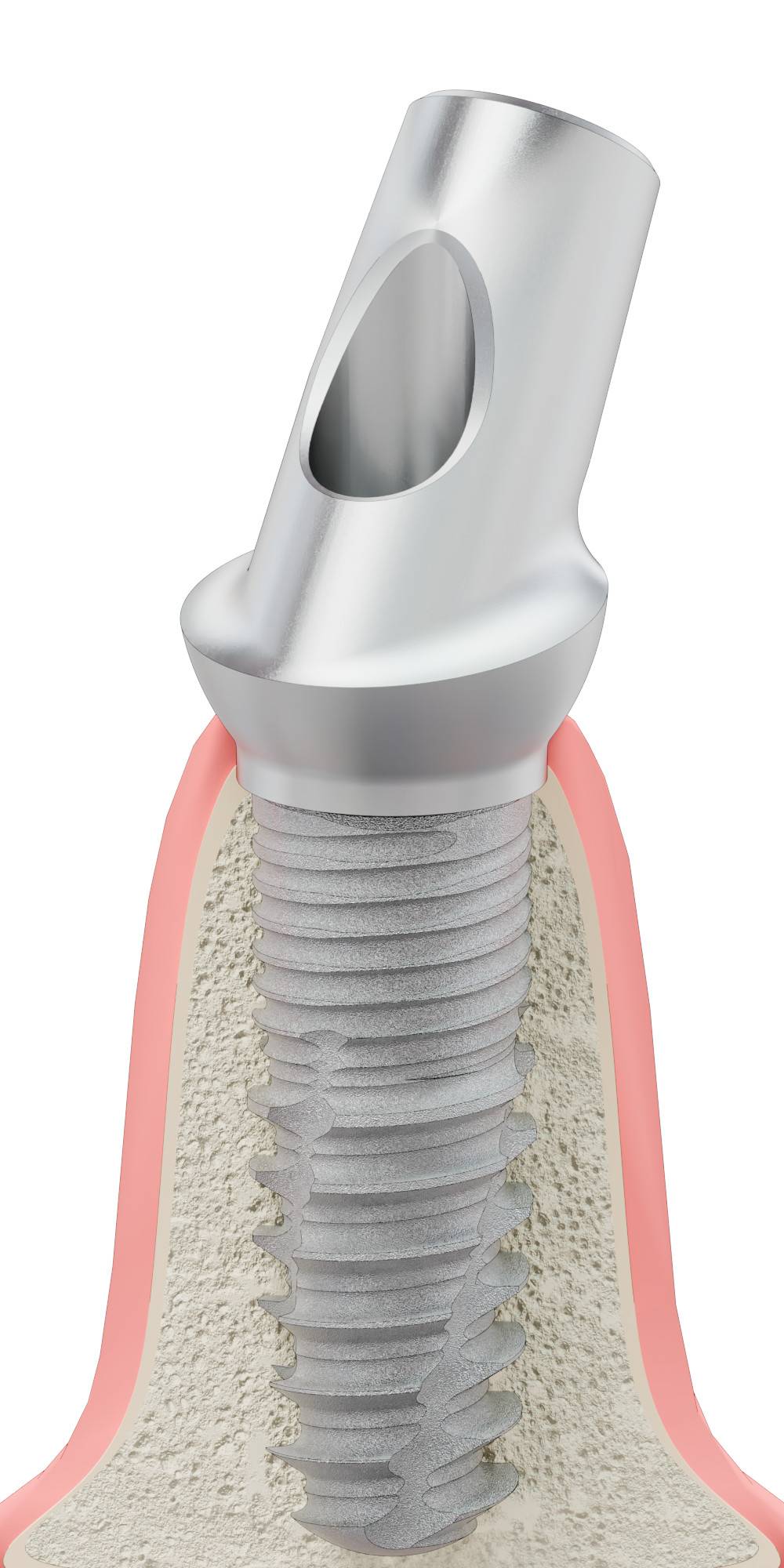

BIONIKA DI UF, Anatomic abutment, angled, 35°, positioned, type-A

Brand characteristics

The BIONIKA DI-UF implant system is compatible with the DIO® UF platform and features an advanced conical connection (Conical-Connection) combined with a hexagonal fit, ensuring micromovement-free load transfer and exceptional stability.

The 22° cone angle directs forces deep into the implant body, reducing cortical bone stress and promoting long-term osseointegration.

The spirally micro-grooved, self-locking, and self-compressing thread structure provides enhanced primary stability, especially in softer bone conditions.

The platform switching design supports the natural adaptation and biological sealing of soft tissues around the implant shoulder, ensuring an aesthetic and hygienic result.

Following the anatomical root shape, the self-cutting and bone-condensing thread profile, together with the rounded implant apex, ensures optimal placement and long-term, stable osseointegration for the DI-UF system.

Geometry characteristics

Customisable Abutment for High-Angle Correction with Natural Contour and Precise Orientation

The Anatomic abutment, angled, 35°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for implants exhibiting significant axial deviation. The 35° angulation allows for the correction of major discrepancies between the implant and prosthetic axes without compromising aesthetics or functionality.

The Type A indexed design ensures that the abutment is always repositioned in the same orientation. In this design, a specific flat surface of the connection consistently aligns with the same direction relative to the top of the abutment. This guarantees precise orientation, which is essential in multi-implant restorations.

Main Advantages:

• 35° angle correction: Outstanding capability to correct major axial deviations.
• Anatomical shape: Preformed design promotes natural appearance and gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures precise repositioning.
• Customisable design: Individually shapeable according to clinical or laboratory needs.
• Implant-level connection: Stable and reliable fit to the implant.
• Biocompatible titanium: Durable, tissue-friendly, and sterilisable material.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-A is the ideal solution when the implant is significantly misaligned with the desired prosthetic axis and precise orientation along with a natural appearance are key—such as in restorations involving multiple implants.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
