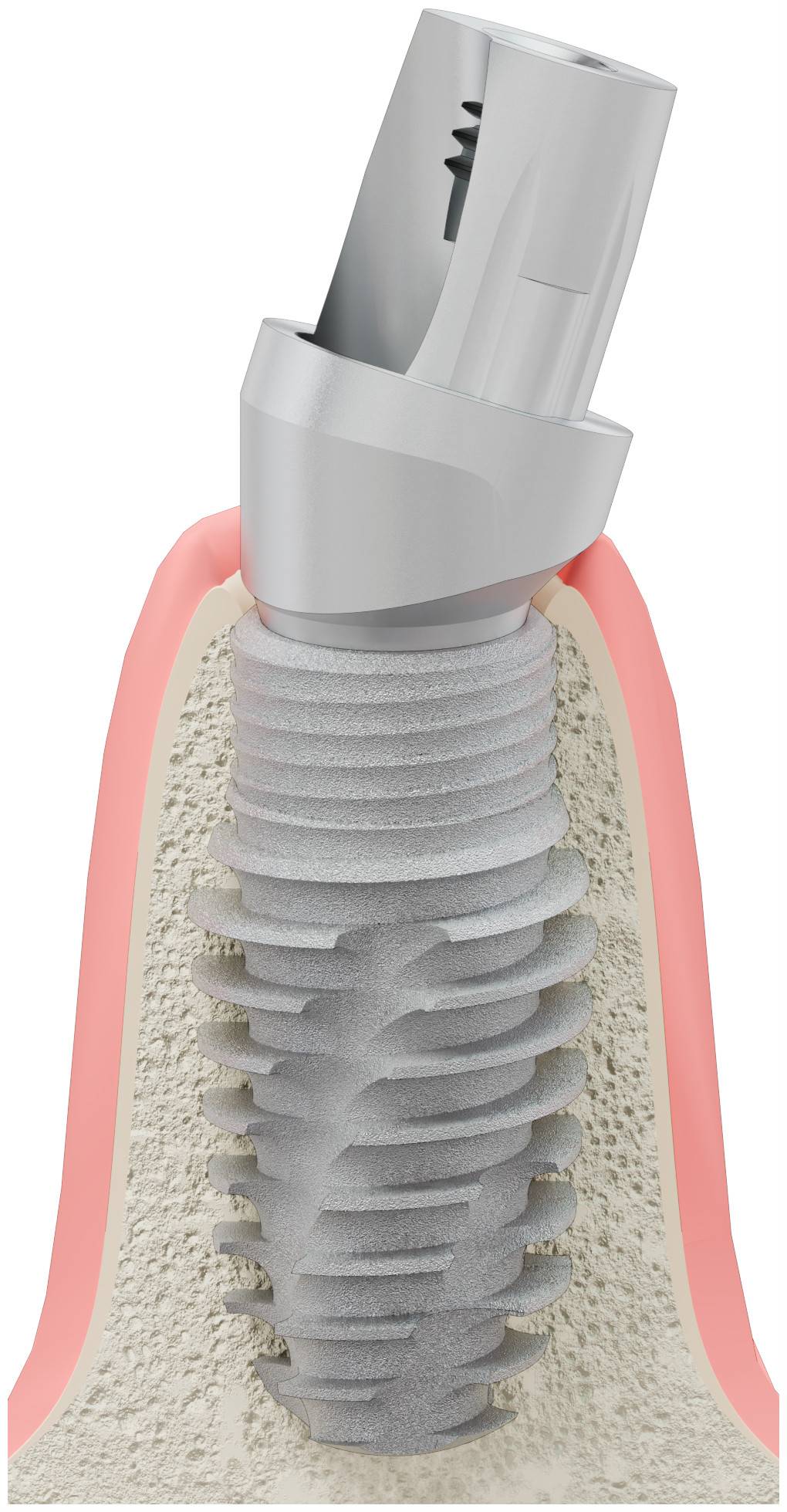

BIONIKA DI SM, Titanium base, angled, positioned, type-B

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

The angled titanium base is an implant-level abutment that provides a prosthetic solution for tilted implants. Its indexed (anti-rotational) design enables a precise fit and unambiguous placement. The Type B design matches a specific connection system that features a different geometry from Type A.

Features:

• Implant-level titanium base
• Angled orientation for tilted implants
• Indexed, anti-rotational connection
• Type B compatibility
• Ideal for CAD/CAM technologies

This type is particularly useful in cases where implant angulation deviates from an axial abutment, while still requiring a precise, stable fit.

The product image is for illustration only; the colour and geometry of the product may vary depending on the selected dimensions.
