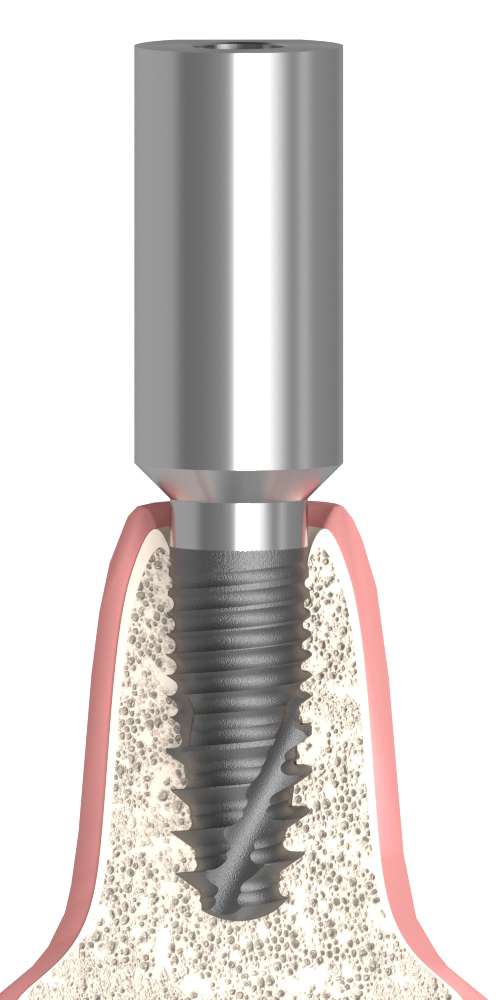

BIONIKA DI SM, Scanbody, screw-retained, positioned, narrow

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

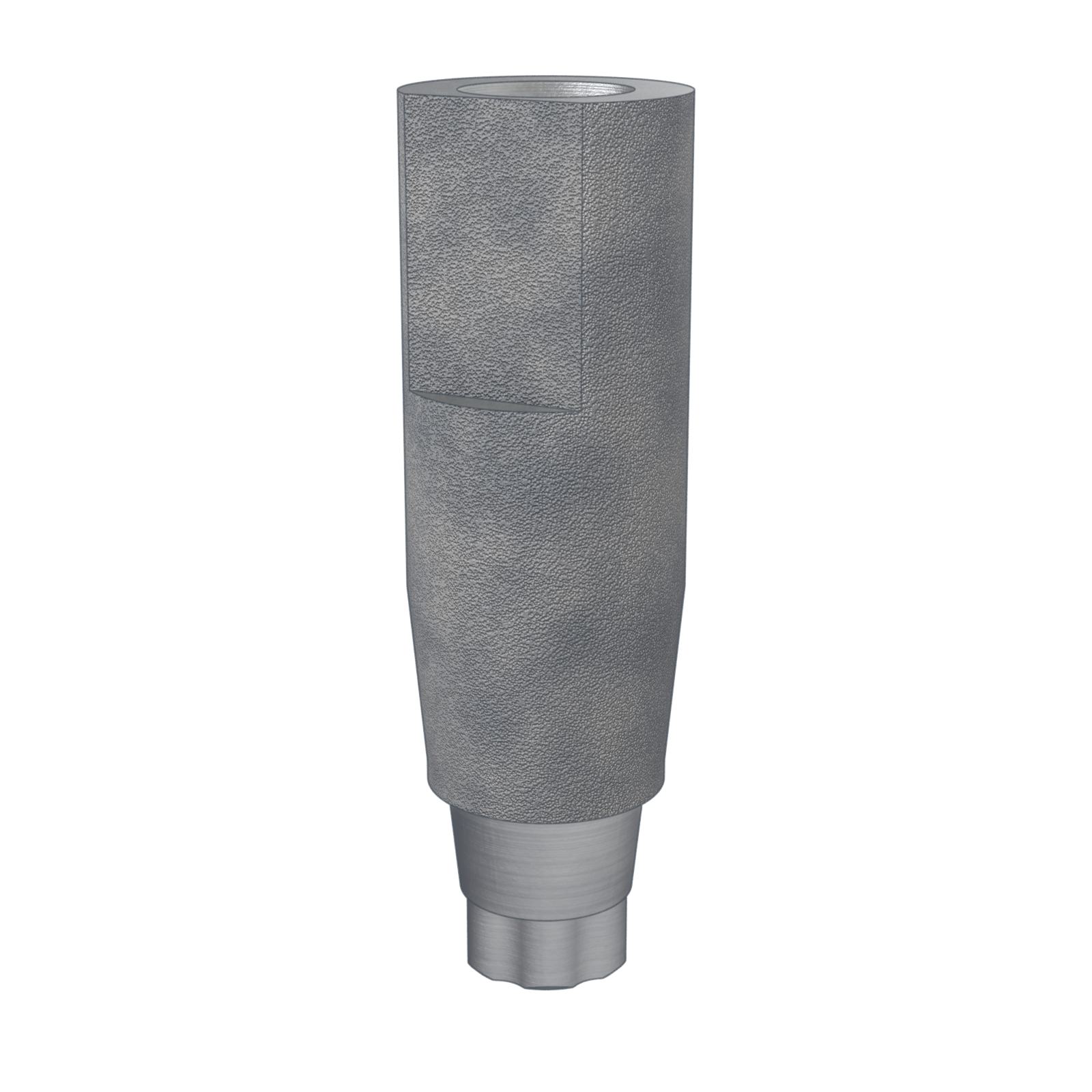

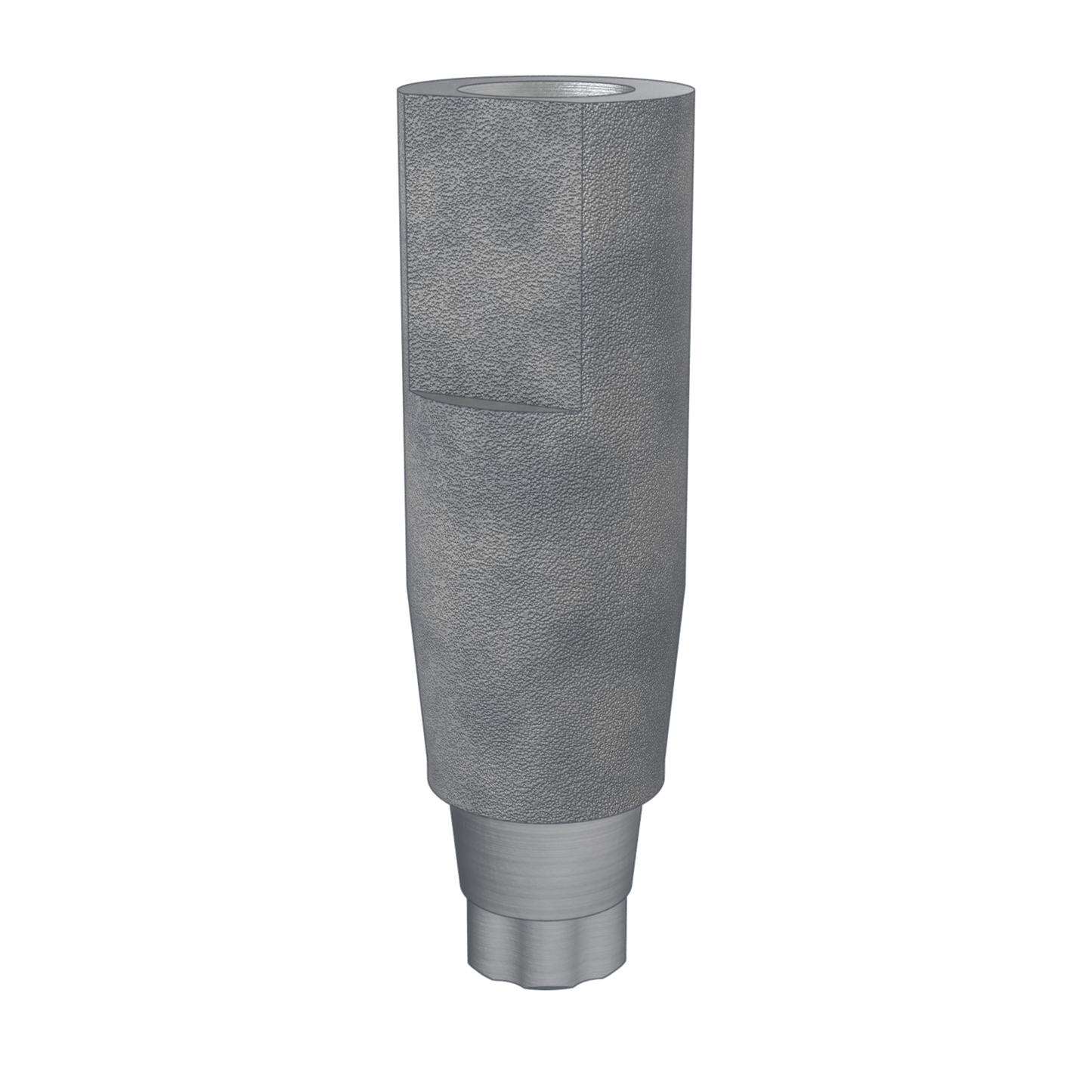

Compact, indexed scanbody for digital impressions with pass-through screw retention

The Scanbody, screw-retained, positioned, narrow is a digital impression component specifically designed for limited spaces, used to capture the precise 3D position of implants or prosthetic interfaces in CAD/CAM workflows. Its narrow profile is especially advantageous in anterior regions or when multiple implants are placed in close proximity. The indexed design ensures consistent orientation of the final restoration.

The pass-through screw retention provides secure and accurate connection during the scanning process, eliminating the risk of displacement or scanning errors. The scanbody geometry is compatible with most open-system intraoral and laboratory scanners, as well as digital design software.

Main benefits:

• Narrow profile: Ideal for limited space situations and use in the aesthetic zone.
• Indexed design: Repeatable orientation for precise restoration alignment.
• Pass-through screw retention: Ensures stability and reliability during scanning.
• Optimised for digital impressions: Suitable for intraoral and lab scanners.
• CAD/CAM compatible: Works with most open-architecture design and manufacturing systems.

Application:

The Scanbody, screw-retained, positioned, narrow is the ideal choice for digital workflows where space-saving design and precise restoration orientation are essential—particularly in multi-implant cases, anterior restorations, or aesthetic zones.

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected dimensions.
