BIONIKA DI SM, Scanbody, screw-retained, non-positioned, narrow

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Narrow non-indexed scanbody for digital impressions with pass-through screw retention

The Scanbody, screw-retained, non-positioned, narrow is an implant-level digital impression component used for the precise planning of CAD/CAM-based custom restorations. Its narrow design allows for use in tight spaces, such as anterior regions or cases with closely positioned implants. The non-indexed configuration offers full freedom to define the restoration’s final orientation during the digital design process.

The pass-through screw retention ensures stable and accurate connection to the implant or interface, preventing any movement during scanning. The scanbody geometry is compatible with both intraoral and laboratory scanners and supports most open CAD systems, making it an excellent fit for modern digital dental workflows.

Main benefits:

• Narrow design: Ideal for limited spaces and aesthetic zones.
• Non-indexed version: Flexible orientation during digital planning.
• Pass-through screw retention: Ensures stability and precision throughout the scan.
• Optimised for digital impressions: Suitable for intraoral and laboratory scanners.
• CAD/CAM compatible: Supports contemporary digital design and manufacturing processes.

Application:

The Scanbody, screw-retained, non-positioned, narrow is the ideal choice for digital implant-level impressions, especially in clinical situations with limited space where restoration orientation is to be defined during the digital design phase.

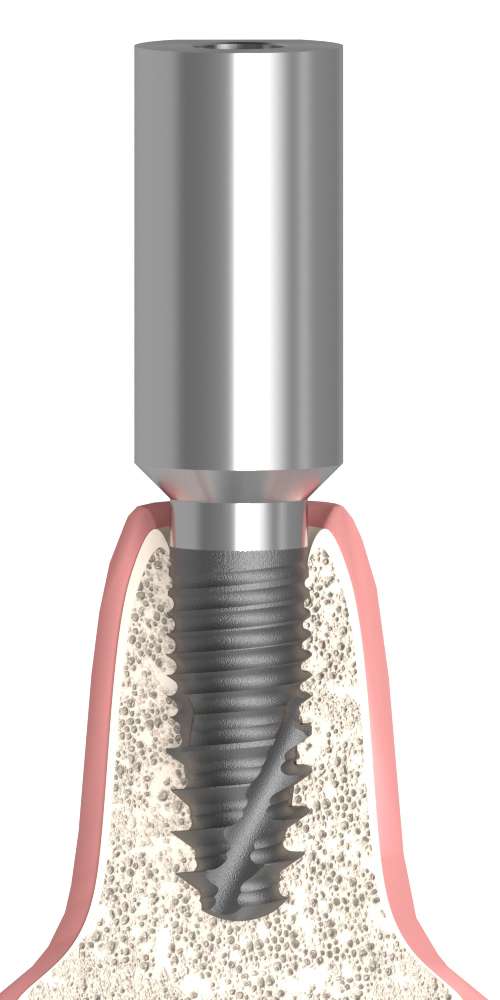

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected dimensions.
