BIONIKA DI SM, Scanbody, screw-retained, non-positioned

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Non-indexed scanbody for digital impressions with pass-through screw retention

The Scanbody, screw-retained, non-positioned is a device used for intraoral or laboratory digital impressions, designed to capture the precise implant position and platform geometry for CAD/CAM workflows. Its non-indexed design allows for flexible use in cases where the final restoration does not require a predetermined orientation or when the orientation is determined during the digital design phase after scanning.

The pass-through screw retention ensures secure and stable fixation to the implant platform or compatible interface, minimising the risk of displacement, inaccurate data capture, or the need for rescan. The scanbody is compatible with most open CAD software systems, facilitating smooth integration into digital workflows.

Main benefits:

• Non-indexed design: Flexible application for custom or free-orientation restorations.
• Pass-through screw fixation: Secure and reliable connection to the implant or interface.
• For digital impressions: Accurate transmission of 3D position and platform data to CAD/CAM systems.
• Compatibility: Suitable for open-system intraoral and lab scanners.
• Ease of use: Easy insertion and removal without the need for auxiliary tools.

Application:

The Scanbody, screw-retained, non-positioned is ideal for digital workflows, especially for implant-level restorations where a predefined orientation is not required and the final alignment is determined during software-based planning.

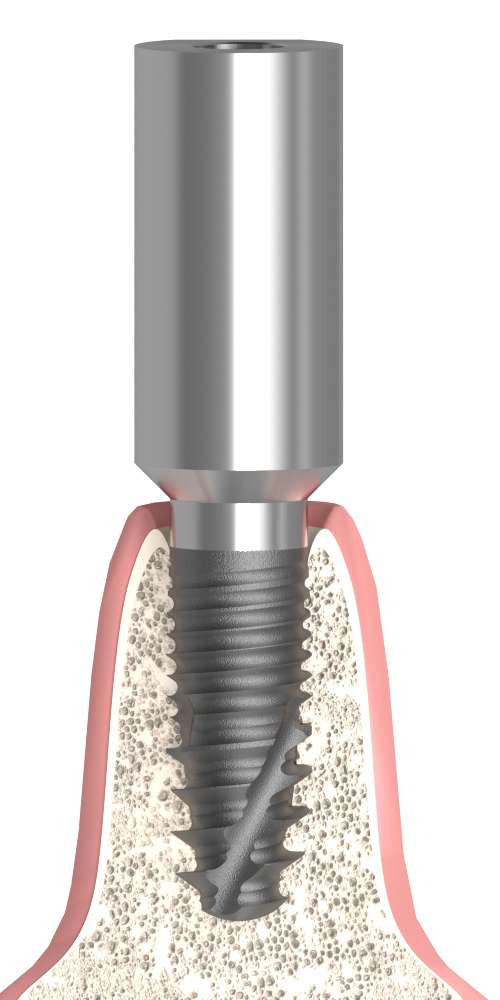

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected dimensions.
