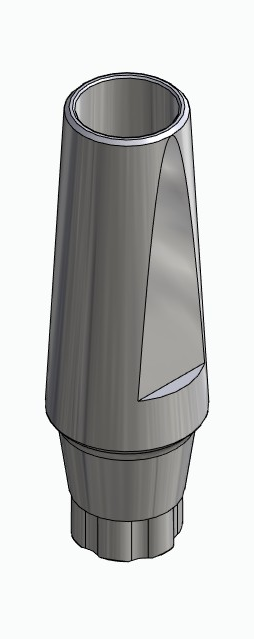

BIONIKA DI SM, Narrow abutment, straight, positioned

Brand characteristics

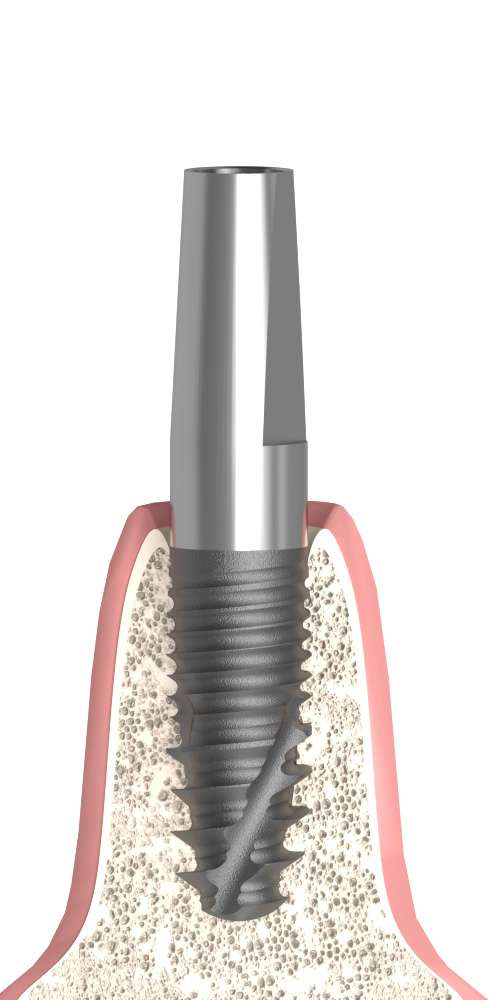

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

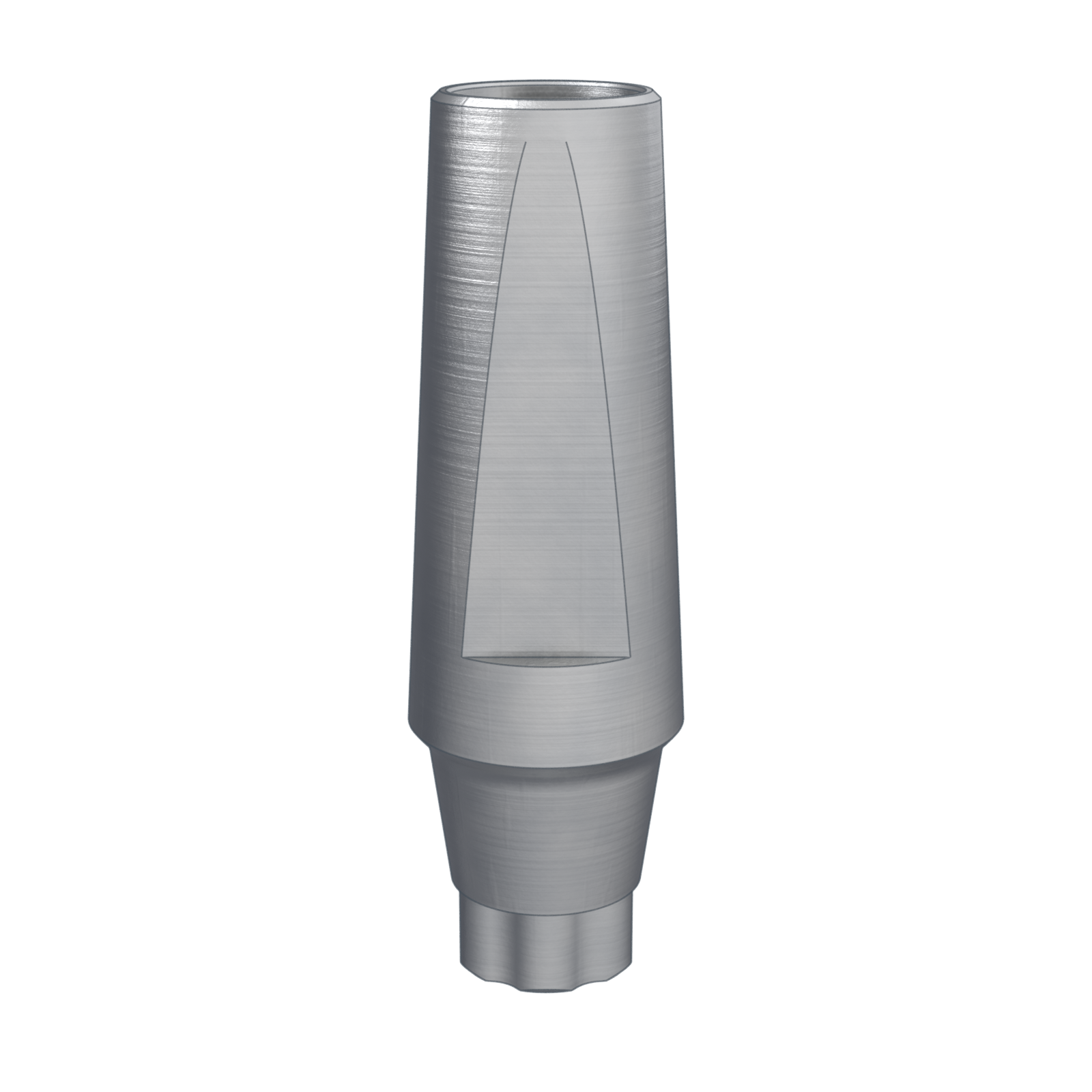

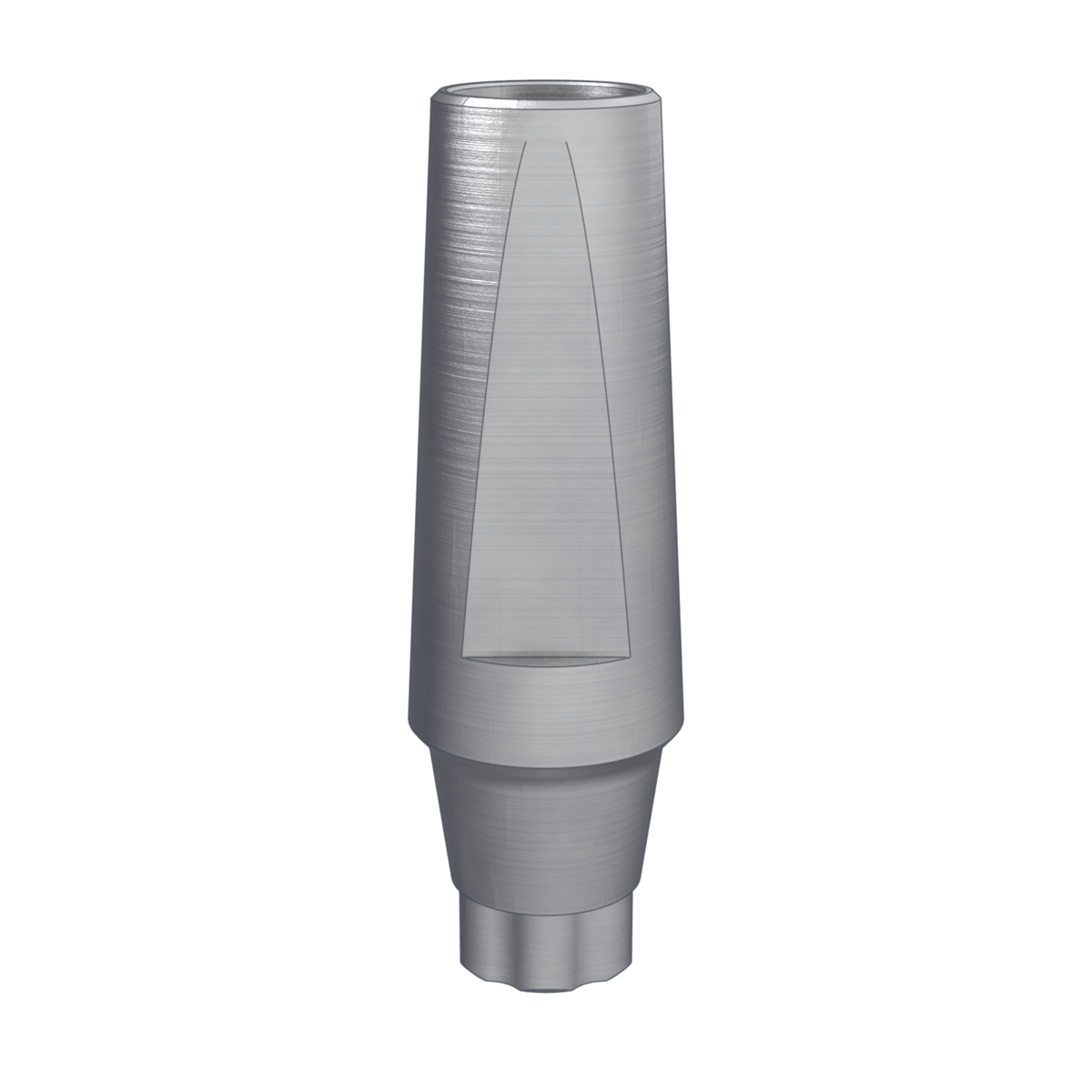

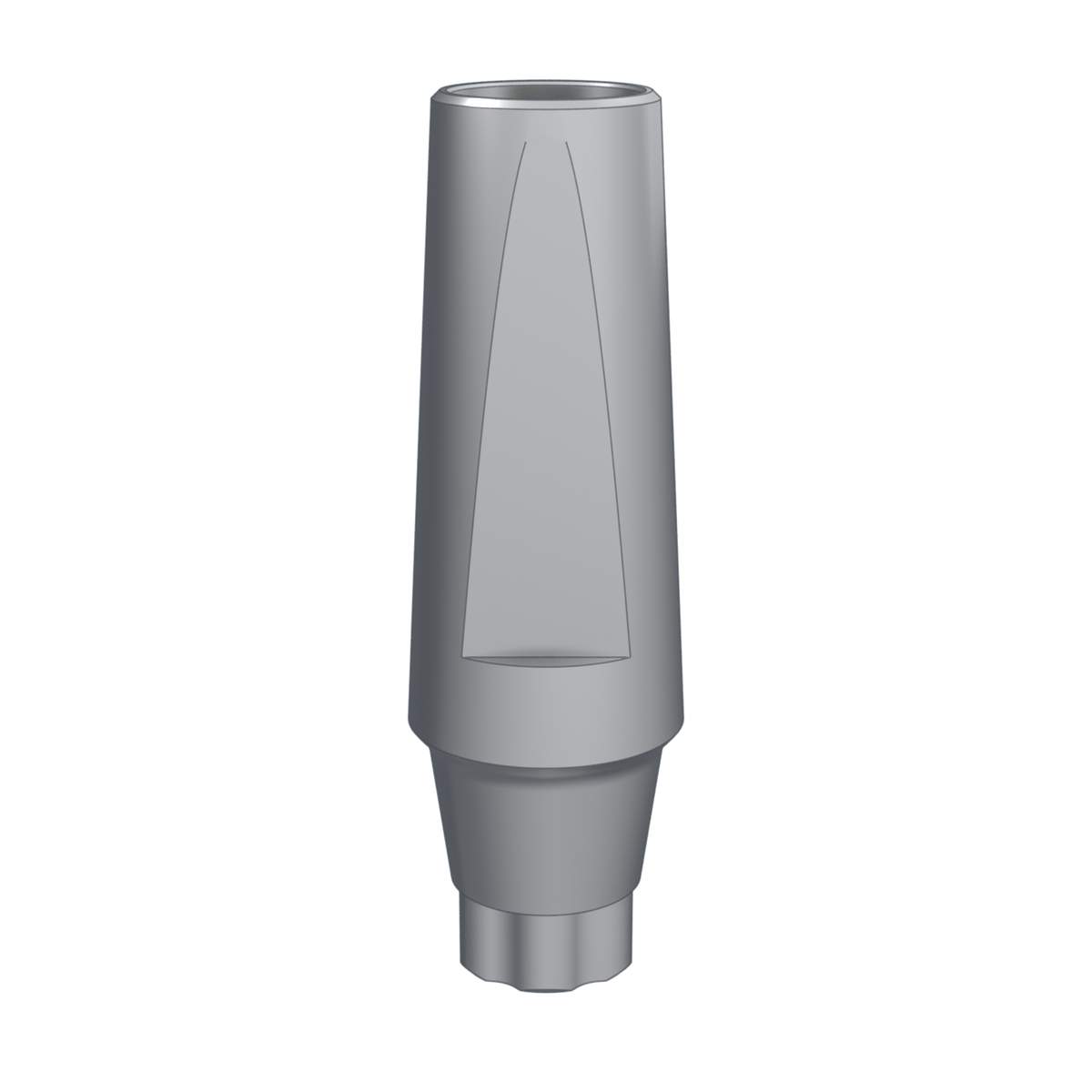

Precision Abutment for Narrow Implant Sites with Indexed Connection

The Narrow abutment, straight, positioned is an implant-level component specifically designed for use in narrow interproximal spaces. Its straight profile facilitates prosthetic procedures, while the narrow shape allows precise placement even in anatomically limited areas.

The indexed design ensures that the abutment consistently aligns in the same orientation upon insertion. This is particularly important in cases involving multiple implants, where consistent orientation plays a key role in achieving proper fit, aesthetics, and functionality of the prosthetic restoration.

Main Advantages:

• Narrow profile: Ideal for tight spaces, anterior regions, or limited gingival height.
• Straight shape: Simplifies prosthetic preparation and provides easy access.
• Indexed connection: Precise repositioning and prosthetic alignment across multiple implants.
• Implant-level fit: Secure and stable connection to the implant.
• Biocompatible titanium: Safe, sterilizable, and suitable for long-term clinical use.
• The product includes the screw.

Application Area:

The Narrow abutment, straight, positioned is an excellent choice in the aesthetic zone and narrow implant sites, where minimal spatial requirements and accurate repositioning are both essential.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
