BIONIKA DI SM, Multi-unit SR abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Angled, Indexed SR-Type Abutment for Screw-Retained Restorations with B-Type Orientation

The Multi-unit SR abutment, angled, positioned, type-B is an angulated prosthetic abutment for the SR (Screw-Retained) system, designed to compensate for non-ideal implant angulation. Its angled form allows alignment of the prosthetic axis with functional and aesthetic requirements, while providing precise indexed positioning.

The B-Type orientation ensures that a specific point (corner) on the connection surface always returns to the same position relative to the top of the abutment upon reinsertion. This guarantees consistent and repeatable positioning of the restoration, which is particularly important in multi-implant, screw-retained solutions.

A key benefit of the SR system is that the entire prosthetic structure can be screw-retained without cement, allowing restorations to remain accessible and removable for maintenance or servicing. The lower part of the abutment fits the SR-compatible multi-unit platform, while the upper part is designed to accept the screw-retained prosthetic component.

Main Advantages:

• Angulation correction: Enables compensation for implant misalignment.
• B-Type orientation: The connector’s corner always aligns in the same direction on reinsertion.
• SR system compatibility: Suitable for cement-free, screw-retained restorations.
• Precise positioning: Ensures optimal fit for multi-implant prosthetics.
• Biocompatible titanium: Durable, sterilisable, and tissue-friendly material.
• The product includes the retaining screw.

Indications:

The Multi-unit SR abutment, angled, positioned, type-B is the ideal solution for screw-retained, angulated restorations supported by multiple implants, where precise orientation, removability, and full system compatibility are essential.

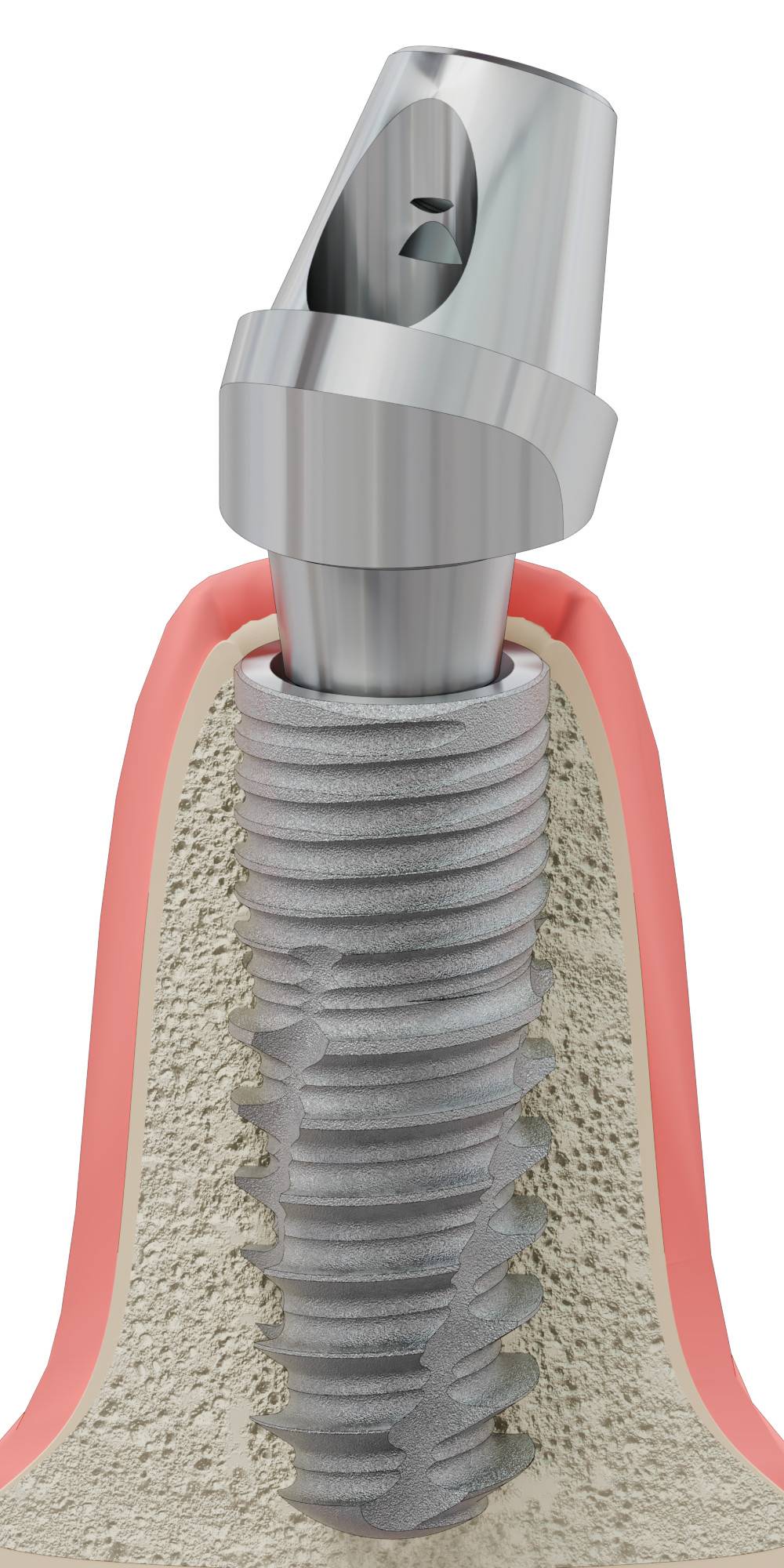

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected specifications.
