BIONIKA DI SM, Multi-unit SR abutment, angled, positioned, type-A

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Angled, Indexed SR-Type Multi-Unit Abutment with A-Type Orientation for Screw-Retained Restorations

The Multi-unit SR abutment, angled, positioned, type-A is an angulated prosthetic abutment designed for the SR (Screw-Retained) system, which allows for correction of implant angulation while ensuring precise orientation of the final restoration. The angled design is ideal in cases where implants are not placed parallel and require angular compensation.

The A-Type indexing ensures that a specific flat surface of the abutment's connection always returns to the same position relative to the top part of the abutment with every reinsertion. This provides precise and repeatable alignment, which is especially important in multi-implant, screw-retained restorations where alignment of prosthetic axes is critical.

A major advantage of the SR system is that it is entirely cement-free, allowing the prosthesis to be easily accessed, removed, and reattached when needed. The lower part of the abutment fits into the compatible multi-unit platform, while the upper section is designed for secure fixation of the prosthetic components using the appropriate system screw.

Main Advantages:

• Angulation correction: Compensates for unfavourable implant angulations.
• A-Type orientation: The flat connection surface always aligns in the same position.
• SR system compatibility: Designed for cement-free, screw-retained restorations.
• Reliable positioning: Ideal for precise fit in multi-implant restorations.
• Biocompatible titanium: Sterilisable, durable, and tissue-friendly material for clinical use.
• The product includes the retaining screw.

Indications:

The Multi-unit SR abutment, angled, positioned, type-A is the ideal choice for full-arch or partial screw-retained restorations where angulation correction, precise orientation, and cement-free prosthetic attachment are of critical importance.

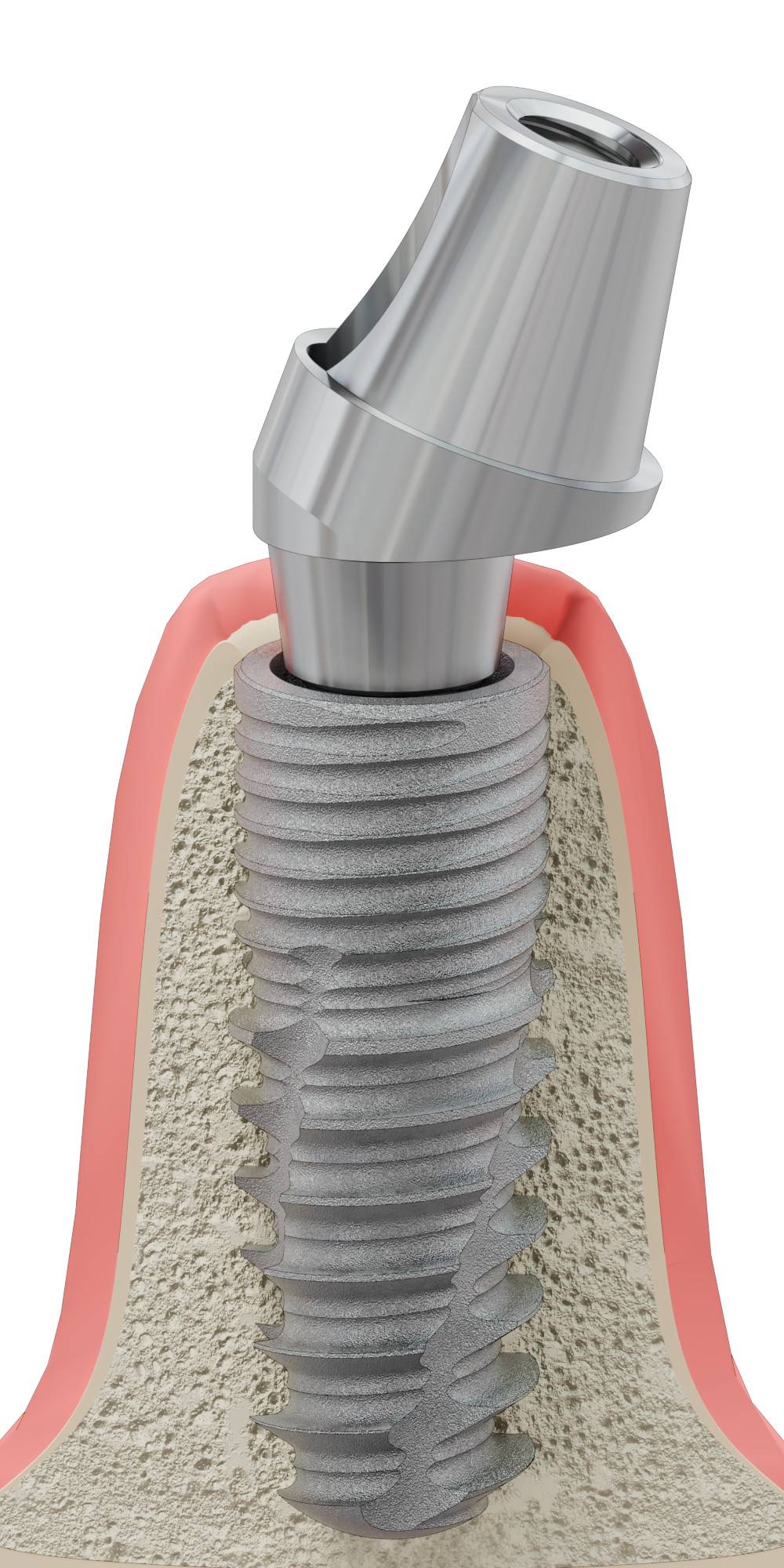

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected specifications.
