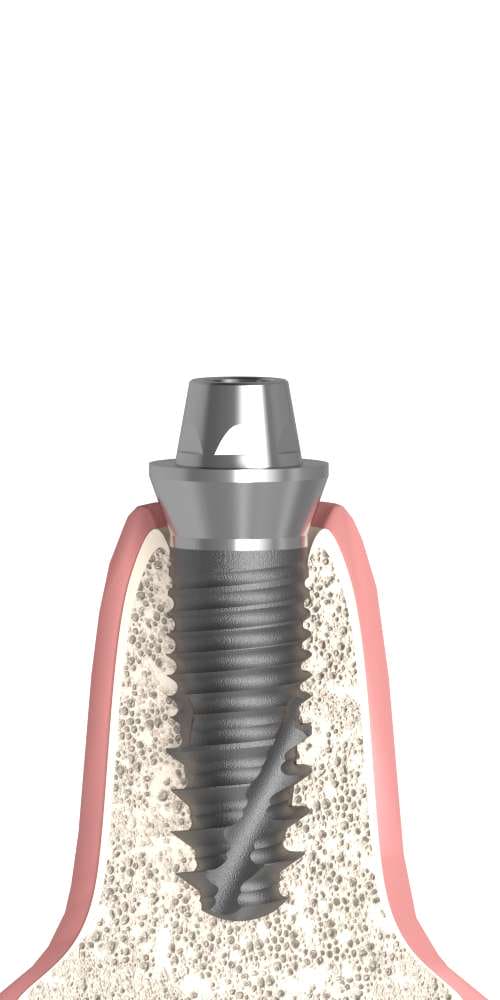

BIONIKA DI SM, Multi-unit abutment, straight with through screw, positioned, wide

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Straight, Wide Multi-Unit Abutment with Indexed Orientation for Screw-Retained Restorations

The Multi-unit abutment, straight with through screw, positioned, wide is a prosthetic component designed to connect to an implant-level or intermediate multi-unit interface. It is developed for screw-retained full or partial restorations. The wide profile provides enhanced stability and superior support for extensive crowns, bridges, and full-arch restorations, especially in posterior regions.

The indexed design ensures the abutment consistently returns to the same orientation upon each reconnection, which is essential for achieving precise prosthetic fit, aesthetic alignment, and functional accuracy. The transversal screw-retained design enables cement-free fixation, facilitating easy removal and maintenance of the restoration.

Main Advantages:

• Wide profile: Increased stability and support for larger prosthetic structures.
• Straight geometry: Balanced insertion path when angulation correction is not required.
• Indexed orientation: Reliable, repeatable positioning during each intervention.
• Transversal screw-retained design: Cement-free restorations with retrievability.
• Multi-unit compatibility: Engineered for secure integration within the system.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material suitable for long-term clinical use.
• The product includes the fixation screw.

Indications:

The Multi-unit abutment, straight with through screw, positioned, wide is ideal for full-arch or extensive screw-retained restorations where enhanced stability, accurate orientation, and convenient access for maintenance are required — especially in posterior zones.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
