BIONIKA DI SM, Multi-unit abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Angled Multi-Unit Abutment with Precise Orientation for Screw-Retained Prosthetic Solutions

The Multi-unit abutment, angled, positioned, type-B is a prosthetic component designed for implant-level or intermediate multi-unit connections. Its angled design enables angular correction between the implant axis and the prosthetic direction, making it especially useful in multi-implant restorations.

The Type B orientation ensures that a specific apex of the connection interface consistently aligns in the same position relative to the top of the abutment upon each insertion. This precise orientation supports seamless alignment of crown shapes, soft tissue contours, and prosthetic elements—crucial in bridge or full-arch restorations.

Main Advantages:

• Angular correction: Compensates for implants placed at suboptimal angles.
• Position-oriented (Type B): A defined apex always aligns in the same direction for reproducible positioning.
• Multi-unit system compatibility: Functions as an intermediate element in multi-unit screw-retained prostheses.
• Implant-level or intermediate connection: Offers flexible integration into various treatment setups.
• Biocompatible titanium: Durable, tissue-friendly, and fully sterilizable material.
• Includes fixation screw.

Indications:

The Multi-unit abutment, angled, positioned, type-B is an ideal solution for full-arch or multi-unit screw-retained restorations requiring angular correction and consistent orientation to ensure accurate prosthetic alignment every time.

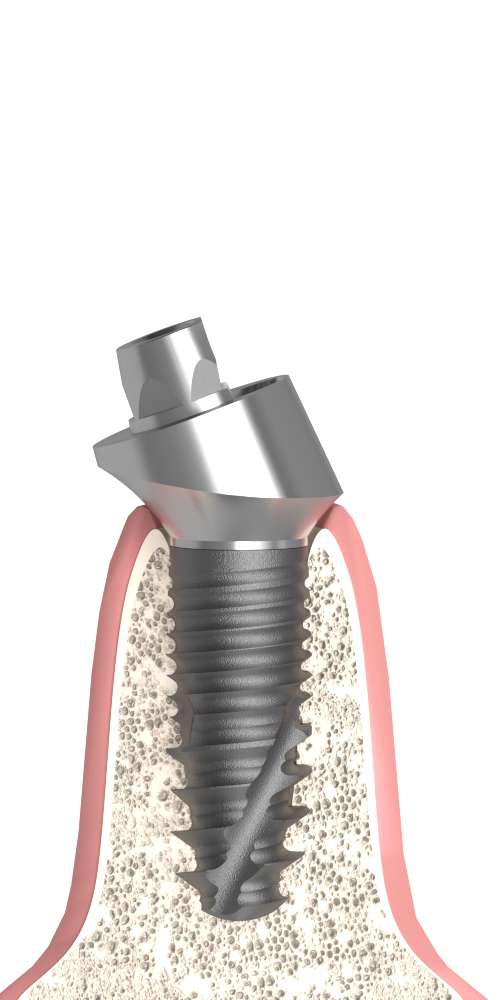

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
