BIONIKA DI SM, Multi-Compact abutment, positioned, type-B

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Positioned Type B Multi-Compact Base for Use with Replaceable Prosthetic Components

The Multi-Compact abutment, positioned, type-B is an advanced prosthetic component within the Multi-Compact system. Its internally threaded base design allows various threaded prosthetic tops to be attached, enabling a single lower unit to serve as the foundation for multiple restorative options. This modular design is particularly valuable in complex cases where prosthetic requirements may vary.

The Positioned Type B variant ensures that a designated peak of the connection surface aligns identically with the upper part of the abutment upon every reinsertion. This ensures precise orientation, which is critical in multi-implant, screw-retained restorations—especially when symmetry and axis alignment are essential for optimal aesthetic and functional outcomes.

A key advantage of the Multi-Compact system is that the base remains a fixed component, while the upper element can be freely selected or replaced based on the clinical situation. This allows for simplified inventory and fast, customized prosthetic solutions.

Main Advantages:

• Internally threaded design: Compatible with a variety of replaceable top components.
• Type B positioning: A specific peak of the connection interface always aligns consistently.
• Flexible system: A single base supports multiple clinical applications.
• Stable, low-profile design: Reliable foundation for hybrid or full-arch prosthetics.
• Biocompatible titanium: Durable, tissue-friendly, and sterilizable material.
• Includes fixation screw.

Indications:

The Multi-Compact abutment, positioned, type-B is an ideal choice for multi-implant screw-retained restorations where angle correction, modularity, and reinsertion accuracy are essential. It is particularly advantageous in cases requiring coordinated multi-component restorations with customizable top geometries.

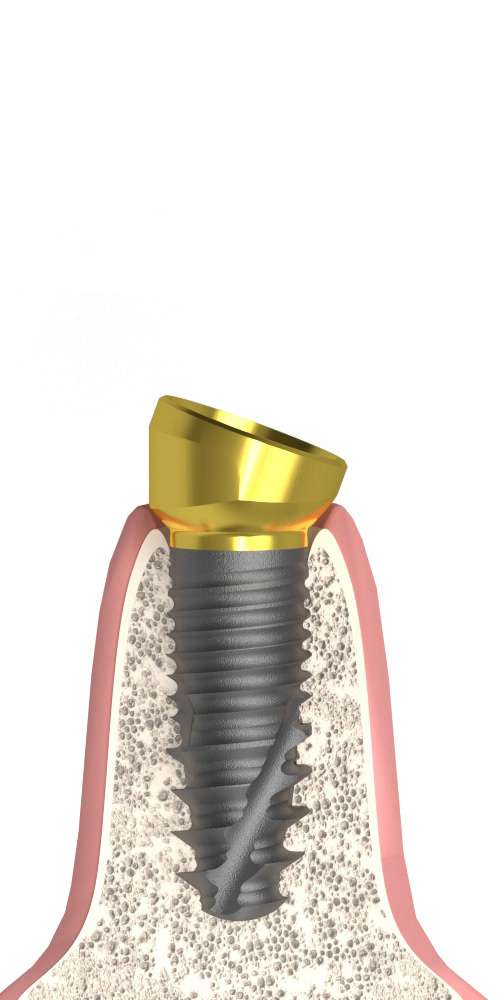

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
