BIONIKA DI SM, MC - multi-unit cone

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Multi-Compact System Conical Prosthetic Connector

The MC - multi-unit cone is a prosthetic connector element belonging to the Multi-Compact system, designed with a conical interface to provide stable and precise connection between the multi-unit platform and the superstructure. The tapered geometry enhances mechanical stability, reduces micromovements, and improves sealing, making it an ideal choice for high-load, multi-implant-supported restorations.

A key advantage of the MC system is its modular design: multiple types of tapered upper components can be screwed into the internal thread of the base cup. The conical connection ensures precise, self-centering fit between components, facilitating clinical procedures and ensuring long-term reliability.

Main Advantages:

• Conical interface: Stable, self-locking connection between the cup and the upper component.
• Part of the Multi-Compact system: Fully compatible with MC cup-type prosthetic bases.
• Modular system: A single base cup can be used with various conical heads.
• Screw-retained design: Easily replaceable and customisable prosthetic solutions.
• Biocompatible titanium: Sterilisable, long-lasting, and tissue-friendly material.

Application:

The MC - multi-unit cone is ideal for clinical situations requiring precise conical connection, prosthetic versatility, and full system compatibility. It is suitable for securing custom abutments, bridge frameworks, and full-arch restorations to Multi-Compact cup elements.

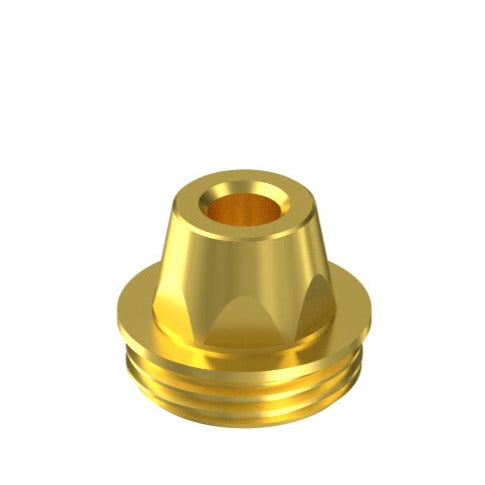

The product image is for illustration purposes only; colour and geometry may vary depending on selected dimensions.
