BIONIKA DI SM, Locator abutment, straight, mini

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Compact Abutment for Locator System with Low Vertical Profile

The Locator abutment, straight, mini is an implant-level component designed for securing removable dentures, fully compatible with the widely used Locator retention system. The "mini" version offers an optimal solution in cases with limited interocclusal space, where the standard Locator abutment dimensions are not suitable.

Its straight design allows easy insertion when the implant axis is favourable. Thanks to the replaceable retention inserts of the Locator system, customisable retention strength can be achieved to suit individual patient needs. The reduced height of the mini version provides added flexibility for prosthetic and aesthetic planning in confined vertical spaces.

Main Advantages:

• Mini design: Extremely low vertical profile, ideal for space-limited cases.
• Implant-level connection: Provides direct and stable fixation to the implant.
• Straight form: Simple placement when no angulation correction is needed.
• Locator compatibility: Works with the proven system using replaceable retention inserts.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Application Area:

The Locator abutment, straight, mini is an excellent choice when a removable prosthesis must be retained but vertical space is limited. It is particularly recommended for fully edentulous cases requiring implant-supported overdenture solutions.

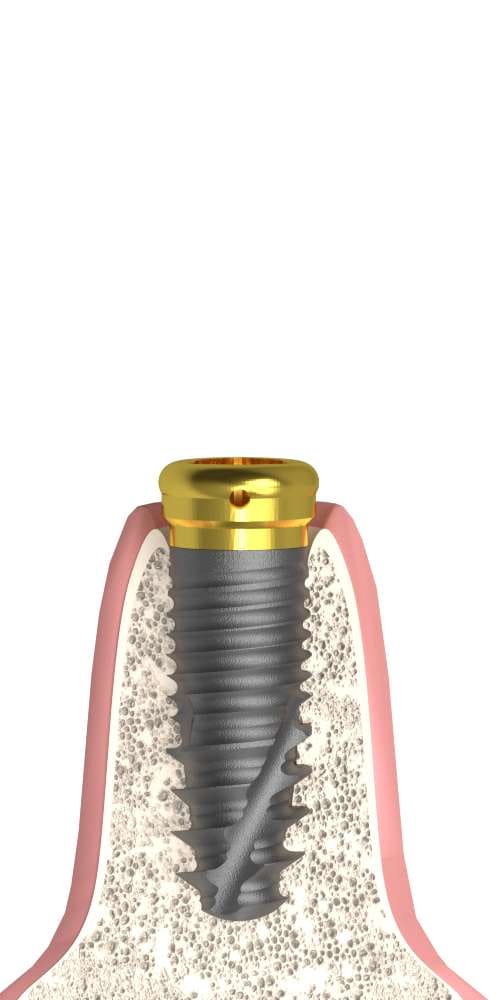

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
