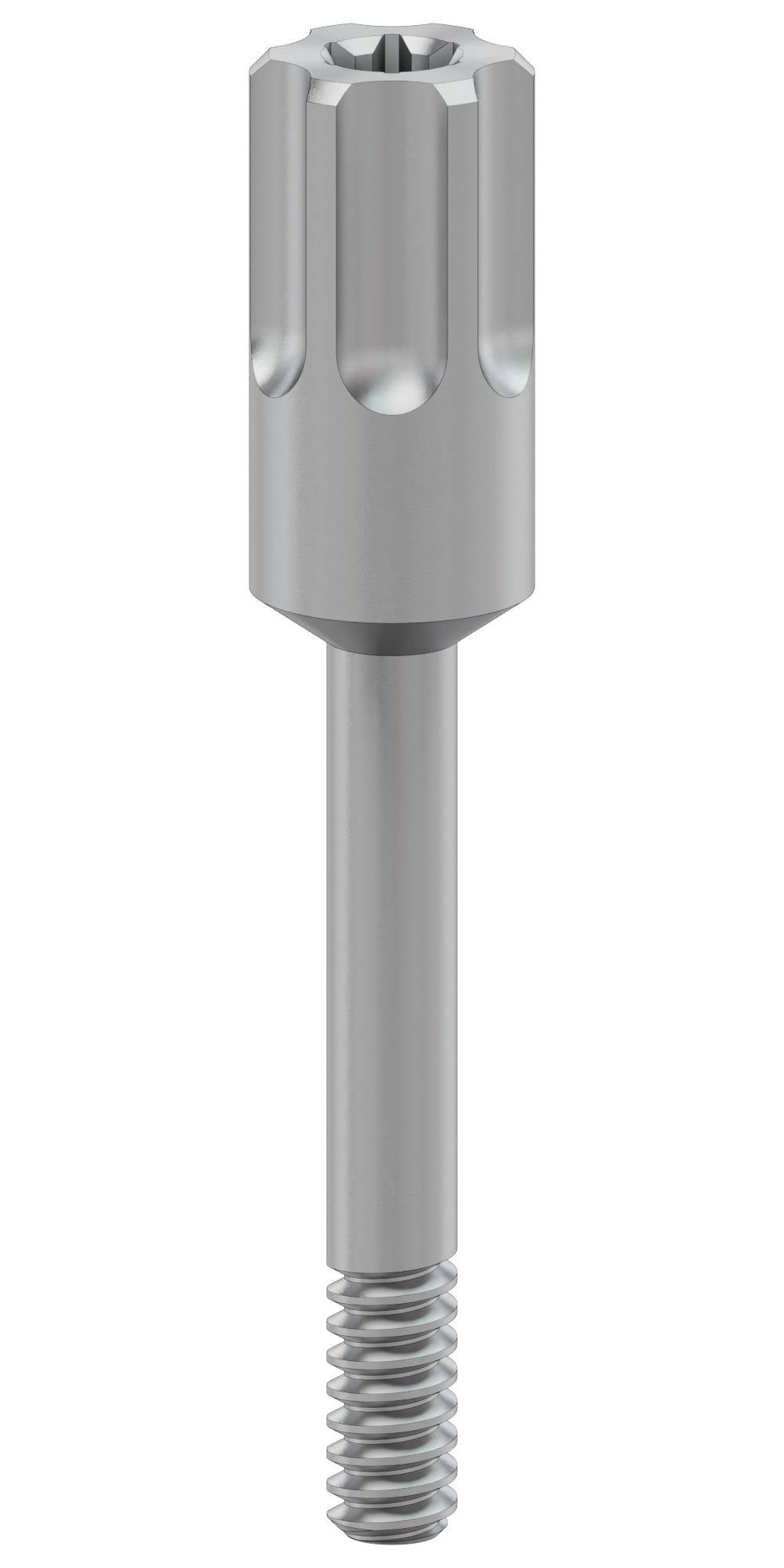

BIONIKA DI SM, Impression coping screw, open tray, multi-unit level

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Fixation Screw for Open Tray Impressions – Designed for Multi-Unit Abutments

The Impression coping screw, open tray, multi-unit level is a precision fixation screw specifically designed to secure multi-unit level impression copings during open tray impression procedures. Its geometry ensures convenient access through the impression tray and allows vibration-free, accurate seating of the coping onto the multi-unit platform.

Manufactured from biocompatible titanium, the screw is corrosion-resistant, sterilizable, and suitable for repeated clinical or laboratory use. Secure fixation contributes to impression accuracy, which is essential for the precise fit of the final restoration—particularly in screw-retained prosthetics involving multiple implants.

Main Advantages:

• Multi-unit level compatibility: Ensures a precise fit with multi-unit platform impression copings.
• Designed for open tray technique: Provides easy access and secure fixation during impression taking.
• Titanium construction: Biocompatible, corrosion-resistant, sterilizable, and durable.
• Accurate fit: Supports proper axial and positional transfer for final restorations.
• Reusable design: A cost-effective and reliable solution for both clinical and laboratory use.

Indications:

The Impression coping screw, open tray, multi-unit level is ideal for accurate impressions of multi-unit implant systems using the open tray technique, where secure fixation is key to the accuracy of the final prosthetic outcome.

The product image is for illustration purposes only; colour and geometry may vary depending on selected specifications.
