BIONIKA DI SM, Impression coping for open tray, multi-unit level, non-positioned, wide

Brand characteristics

The BIONIKA DI-SM implant system is compatible with the DIO® SM platform and features a conical and hexagonal (Cone & Hex) connection that ensures precise fitting and micromovement-free load transfer.

The 22° cone angle directs forces deep into the implant body, optimising load distribution and contributing to long-term bone preservation.

The spirally micro-grooved, self-locking thread profile provides strong cortical anchorage, while the self-compressing, self-cutting thread design ensures excellent primary stability in the spongy bone.

The platform switching configuration promotes the natural adaptation of bone and soft tissues, forming a biological seal around the implant shoulder.

With its anatomical root-shaped design and rounded apex, the DI-SM implant offers precise placement, aesthetic soft tissue adaptation, and high stability even under immediate loading. This system provides a reliable, long-term stable solution for a wide range of prosthetic applications.

Geometry characteristics

Stable open tray impression coping with wider diameter

The Impression coping for open tray, multi-unit level, non-positioned, wide is a prosthetic component designed for multi-unit systems and open tray impressions. Its wider design provides enhanced stability and better support for the impression material, especially in cases involving wider or longer-span restorations.

The non-indexed version allows for free rotation during insertion, simplifying the procedure in situations where precise orientation is not critical. The open tray technique offers accurate three-dimensional data on implant positioning, which is essential for precise laboratory fabrication.

Main advantages:

• Wide design: Greater stability within the impression material; ideal for multi-unit or full-arch restorations.
• Multi-unit level connection: Compatible with systems linking multiple implants.
• For open tray use: Direct screw-retained fixation ensures precise positioning and impression accuracy.
• Non-indexed design: Flexible insertion with free angulation based on clinical requirements.
• Biocompatible, durable material: Precisely machined and sterilizable construction.

Application:

The Impression coping for open tray, multi-unit level, non-positioned, wide is an excellent choice for full-arch or large-span restorations supported by multiple implants, where stable fit and accurate positional transfer are critical.

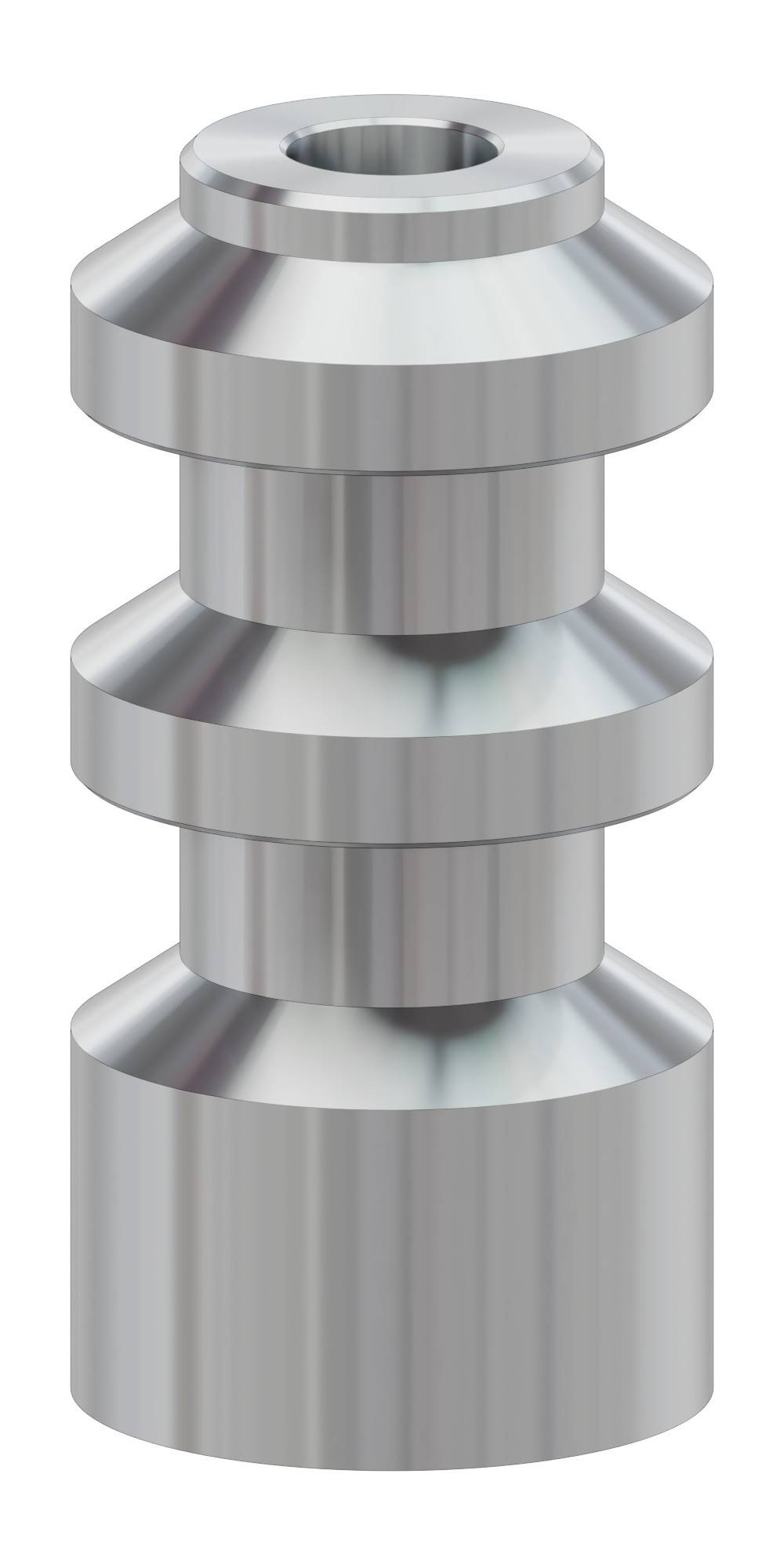

The product image is for illustration purposes only; colour and geometry may vary depending on the selected dimensions.
