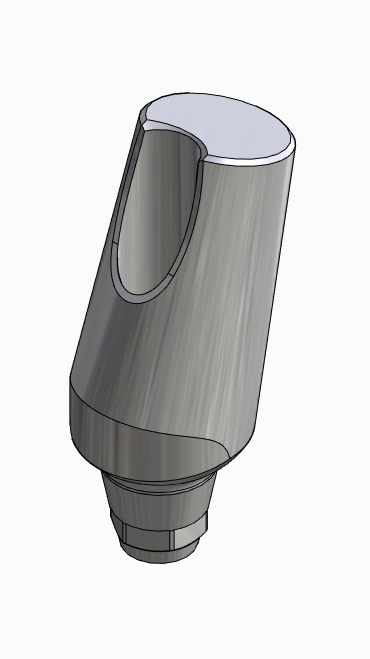

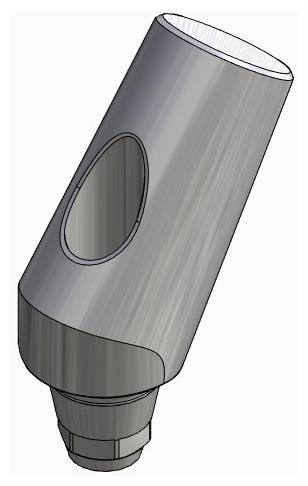

BIONIKA DENTUM, Universal abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA Dentum implant system utilises a Cone & Hex connection geometry that ensures precise alignment and micromovement-free stability.

When placed at or slightly below the cortical level, the implant enhances long-term bone preservation and increases primary stability.

The platform-switching design, with its smaller abutment diameter, allows the bone to naturally grow over the implant shoulder, protecting the bone–soft tissue interface.

The spirally micro-grooved, self-locking thread structure efficiently distributes functional loads, promoting rapid osseointegration and secure, micromovement-free fixation.

Its anatomical root-shaped body, self-cutting and bone-condensing design provide excellent primary stability, enabling immediate loading when clinically appropriate.

The Dentum system is compatible with the following implant platform:

• Dentium® Superline (DM)

It offers a precise fit and a dependable alternative to leading international implant systems, combining Hungarian precision with advanced engineering innovation.

Geometry characteristics

Prepable Abutment for Angular Correction with Indexed Orientation and Implant-Level Connection

The Universal abutment, angled, positioned, type-B is a prepable, implant-level abutment developed for cases where precise spatial orientation and angular correction of the prosthetic restoration are required. Its angled design allows for correction of implant axis deviation, while the prepable shape gives full freedom to customize the final contours in clinical or laboratory settings.

The Type B indexing means that a specific point (apex) of the connection always aligns with the same orientation relative to the top of the abutment. This ensures accurate repositioning and consistent orientation of the prosthetic elements, which is particularly important in multiple-implant restorations.

Main Benefits:

• Prepable design: Custom-shapeable to match anatomical and aesthetic requirements.
• Angled geometry: Enables compensation for non-ideal implant angulation.
• Indexed connection (Type B): A defined apex consistently aligns with the top section of the abutment.
• Implant-level fit: Direct and stable connection to the implant for excellent adaptation.
• Biocompatible titanium: Reliable, long-term material suitable for clinical use.
• The product includes the screw.

Application:

The Universal abutment, angled, positioned, type-B is the ideal choice in cases where the prosthetic abutment must be positioned in a defined spatial orientation and both accurate repositioning and custom shaping are essential.

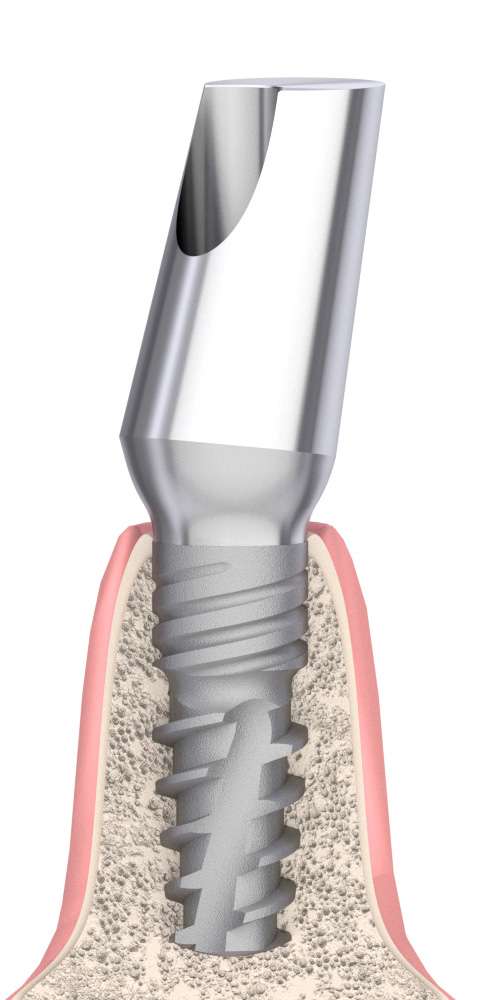

The product image is for illustration purposes only; colour and geometry may vary depending on the selected dimensions.
