BIONIKA DENTUM, Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A

Brand characteristics

The BIONIKA Dentum implant system utilises a Cone & Hex connection geometry that ensures precise alignment and micromovement-free stability.

When placed at or slightly below the cortical level, the implant enhances long-term bone preservation and increases primary stability.

The platform-switching design, with its smaller abutment diameter, allows the bone to naturally grow over the implant shoulder, protecting the bone–soft tissue interface.

The spirally micro-grooved, self-locking thread structure efficiently distributes functional loads, promoting rapid osseointegration and secure, micromovement-free fixation.

Its anatomical root-shaped body, self-cutting and bone-condensing design provide excellent primary stability, enabling immediate loading when clinically appropriate.

The Dentum system is compatible with the following implant platform:

• Dentium® Superline (DM)

It offers a precise fit and a dependable alternative to leading international implant systems, combining Hungarian precision with advanced engineering innovation.

Geometry characteristics

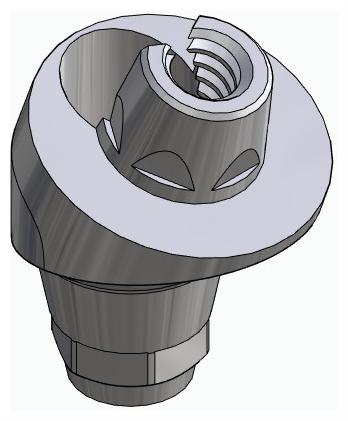

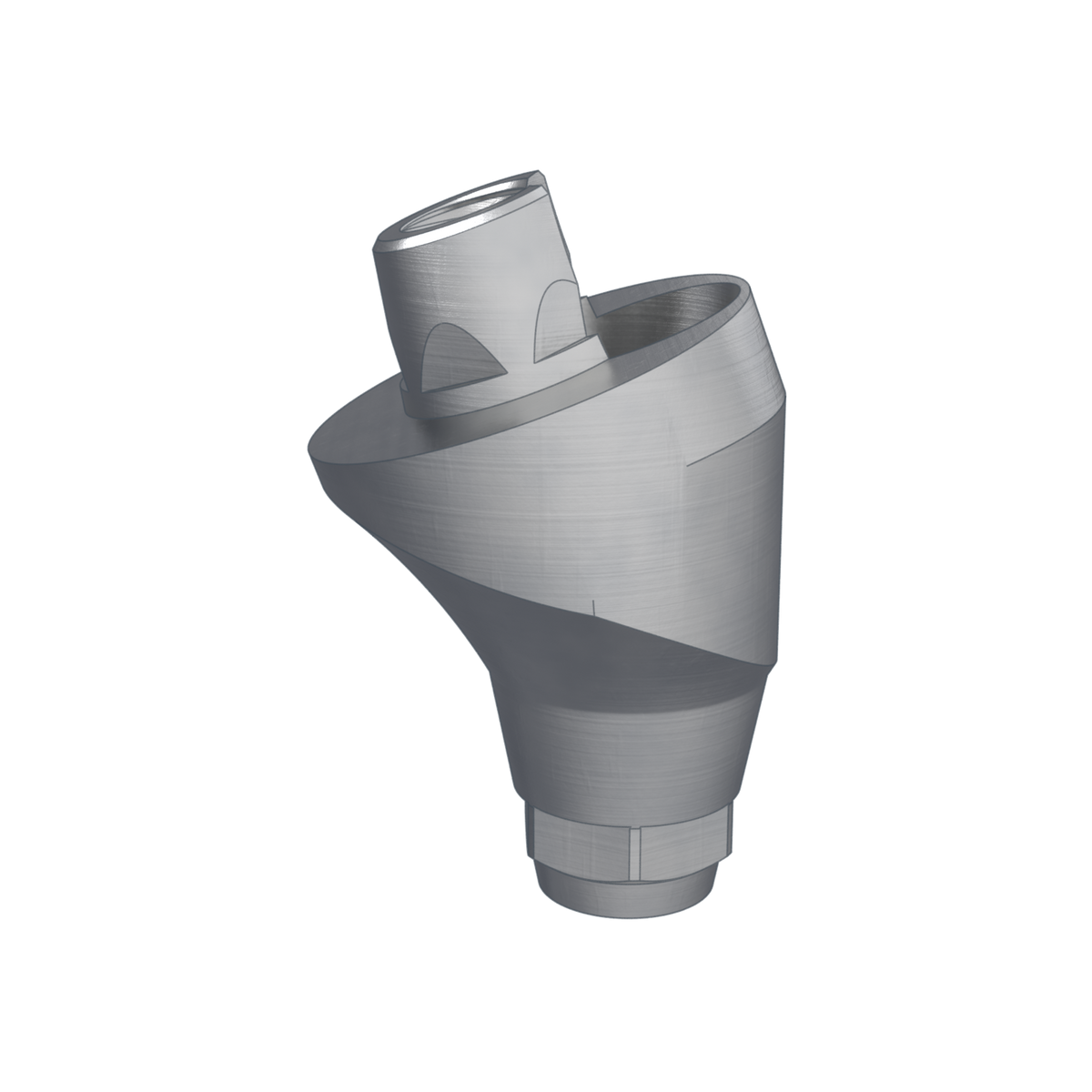

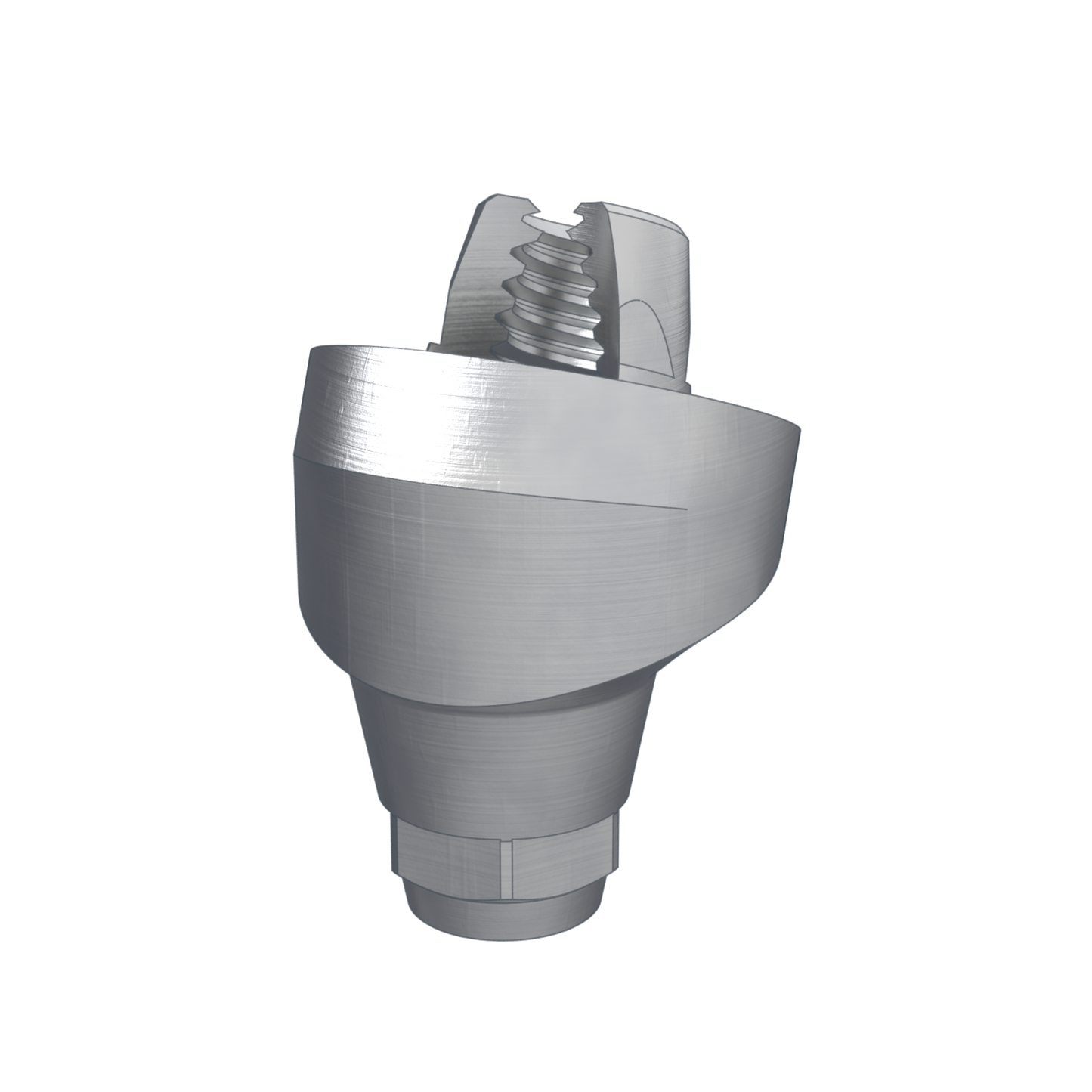

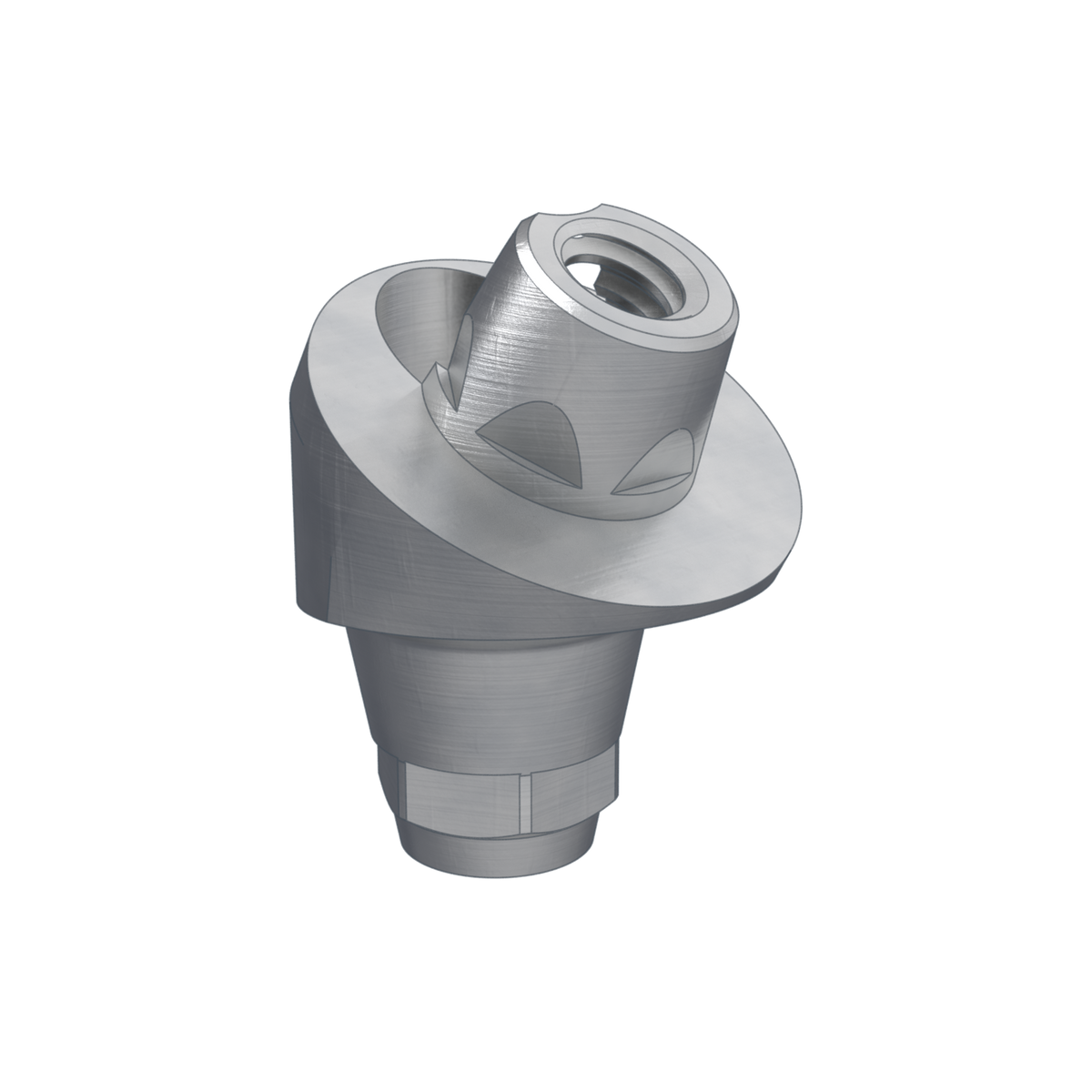

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Narrow Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A is a prosthetic abutment designed to connect to an implant or intermediate multi-unit base, offering angular correction where there is a deviation between the implant axis and the ideal prosthetic axis. Its narrow profile makes it an excellent choice for use in tight interproximal spaces or in the aesthetic zone.

The Type A orientation ensures that a specific flat surface of the connection interface always aligns in the same direction relative to the top of the abutment upon reinsertion. This is particularly advantageous in multi-implant screw-retained restorations where symmetry and axial alignment of prosthetic components are essential.

The M1.6 internal thread located at the top of the abutment enables the secure attachment of various prosthetic components, such as screw-retained bridge frameworks or suprastructures. The bottom of the abutment connects to the multi-unit base via a geometry-based fit, without a retaining screw.

Main Advantages:

• Angular correction: Compensates for deviations in implant angulation.
• Type A orientation: A specific flat surface consistently aligns upon reinsertion.
• Narrow profile: Ideal for limited space and anterior applications.
• LT2.7 compatibility: Ensures precise fit with system-specific multi-unit bases.
• M1.6 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Tissue-friendly, sterilizable, and safe for long-term use.

Indications:

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A is an ideal solution for screw-retained restorations on multiple implants where angular correction, a narrow profile, precise orientation, and compatibility with the LT2.7 system are required.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
