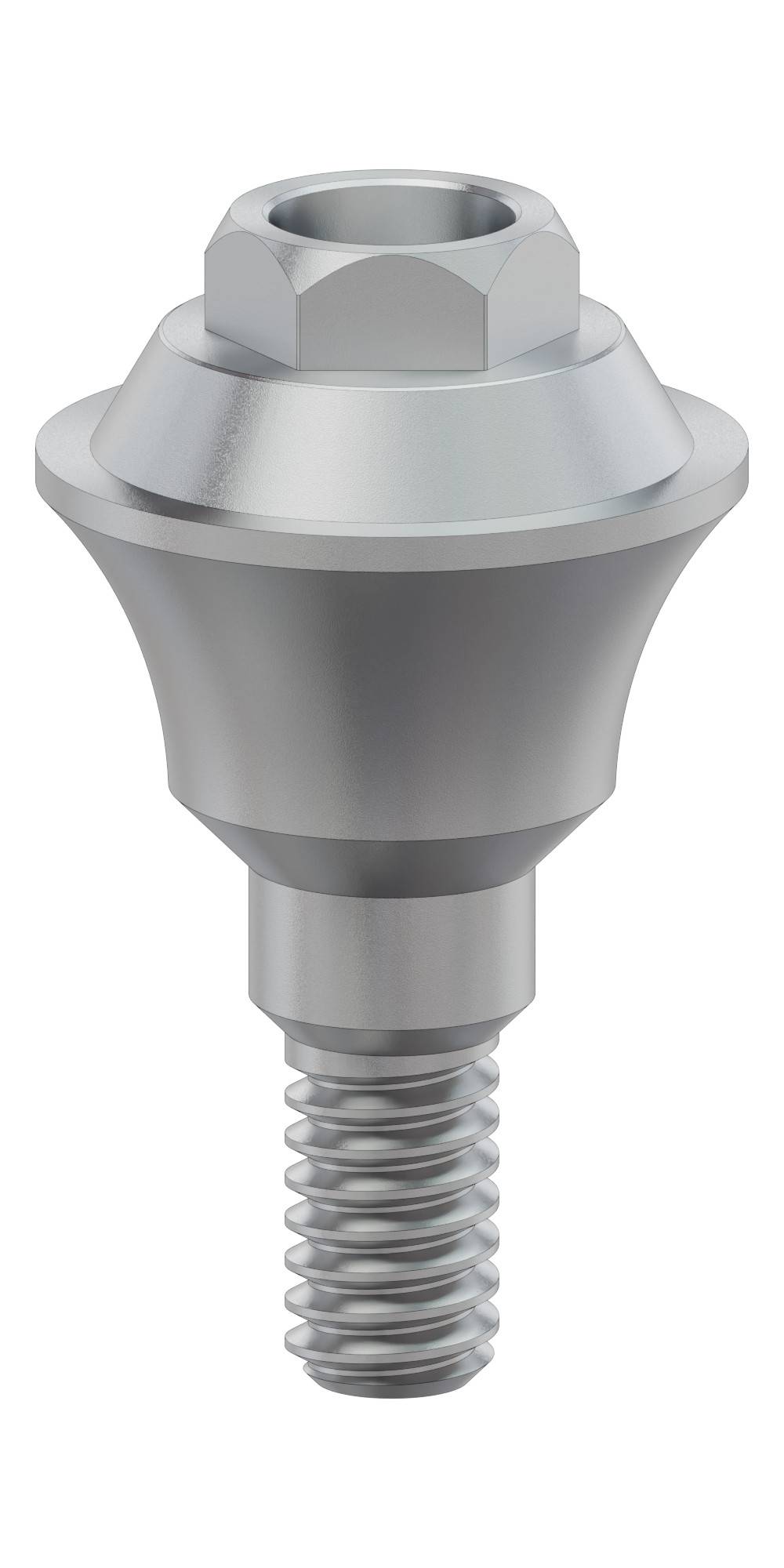

BIONIKA DENTUM, Bite regsitration abutment, screwable, implant level

Brand characteristics

The BIONIKA Dentum implant system utilises a Cone & Hex connection geometry that ensures precise alignment and micromovement-free stability.

When placed at or slightly below the cortical level, the implant enhances long-term bone preservation and increases primary stability.

The platform-switching design, with its smaller abutment diameter, allows the bone to naturally grow over the implant shoulder, protecting the bone–soft tissue interface.

The spirally micro-grooved, self-locking thread structure efficiently distributes functional loads, promoting rapid osseointegration and secure, micromovement-free fixation.

Its anatomical root-shaped body, self-cutting and bone-condensing design provide excellent primary stability, enabling immediate loading when clinically appropriate.

The Dentum system is compatible with the following implant platform:

• Dentium® Superline (DM)

It offers a precise fit and a dependable alternative to leading international implant systems, combining Hungarian precision with advanced engineering innovation.

Geometry characteristics

Screw-Retained Bite Registration Abutment for Implant-Level Use

The Bite regsitration abutment, screwable, implant level is a specialised component used to determine maxillomandibular relations during implant-supported prosthetic procedures. It is directly screwed into the implant, providing stable fixation throughout the bite registration process, eliminating inaccuracies caused by displacement.

The bite record enables the dental laboratory to produce a model that accurately reflects the patient’s oral anatomy—essential for creating a well-fitting, functional, and aesthetic restoration. The implant-level design allows for direct connection without the need for additional adapters.

Main Benefits:

• Implant-level retention: Direct connection to the implant – no accessories required.
• Screw-retained design: Provides a stable, non-moving position during registration.
• Accurate position transfer: Registered occlusion can be reliably transferred to the lab process.
• Biocompatible material: Sterilisable and suitable for clinical applications.
• The product includes the screw.

Application:

The Bite regsitration abutment, screwable, implant level is the ideal solution for single or multi-unit implant cases where a precise maxillomandibular registration is essential for fabricating the final prosthesis.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
