BIONIKA DENTUM, Anatomic abutment, angled, 35°, positioned, type-A

Brand characteristics

The BIONIKA Dentum implant system utilises a Cone & Hex connection geometry that ensures precise alignment and micromovement-free stability.

When placed at or slightly below the cortical level, the implant enhances long-term bone preservation and increases primary stability.

The platform-switching design, with its smaller abutment diameter, allows the bone to naturally grow over the implant shoulder, protecting the bone–soft tissue interface.

The spirally micro-grooved, self-locking thread structure efficiently distributes functional loads, promoting rapid osseointegration and secure, micromovement-free fixation.

Its anatomical root-shaped body, self-cutting and bone-condensing design provide excellent primary stability, enabling immediate loading when clinically appropriate.

The Dentum system is compatible with the following implant platform:

• Dentium® Superline (DM)

It offers a precise fit and a dependable alternative to leading international implant systems, combining Hungarian precision with advanced engineering innovation.

Geometry characteristics

Customisable Abutment for High-Angle Correction with Natural Contour and Precise Orientation

The Anatomic abutment, angled, 35°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for implants exhibiting significant axial deviation. The 35° angulation allows for the correction of major discrepancies between the implant and prosthetic axes without compromising aesthetics or functionality.

The Type A indexed design ensures that the abutment is always repositioned in the same orientation. In this design, a specific flat surface of the connection consistently aligns with the same direction relative to the top of the abutment. This guarantees precise orientation, which is essential in multi-implant restorations.

Main Advantages:

• 35° angle correction: Outstanding capability to correct major axial deviations.
• Anatomical shape: Preformed design promotes natural appearance and gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures precise repositioning.
• Customisable design: Individually shapeable according to clinical or laboratory needs.
• Implant-level connection: Stable and reliable fit to the implant.
• Biocompatible titanium: Durable, tissue-friendly, and sterilisable material.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-A is the ideal solution when the implant is significantly misaligned with the desired prosthetic axis and precise orientation along with a natural appearance are key—such as in restorations involving multiple implants.

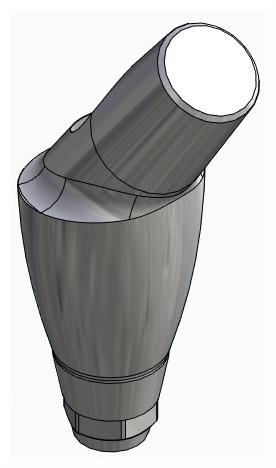

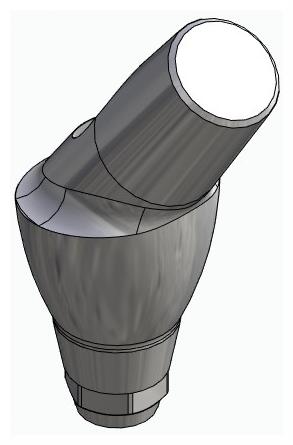

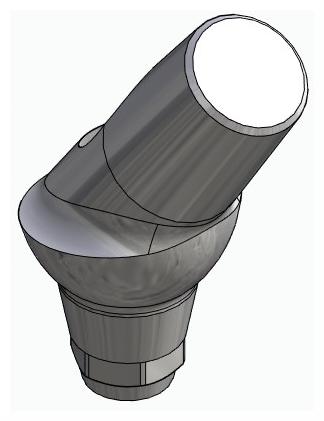

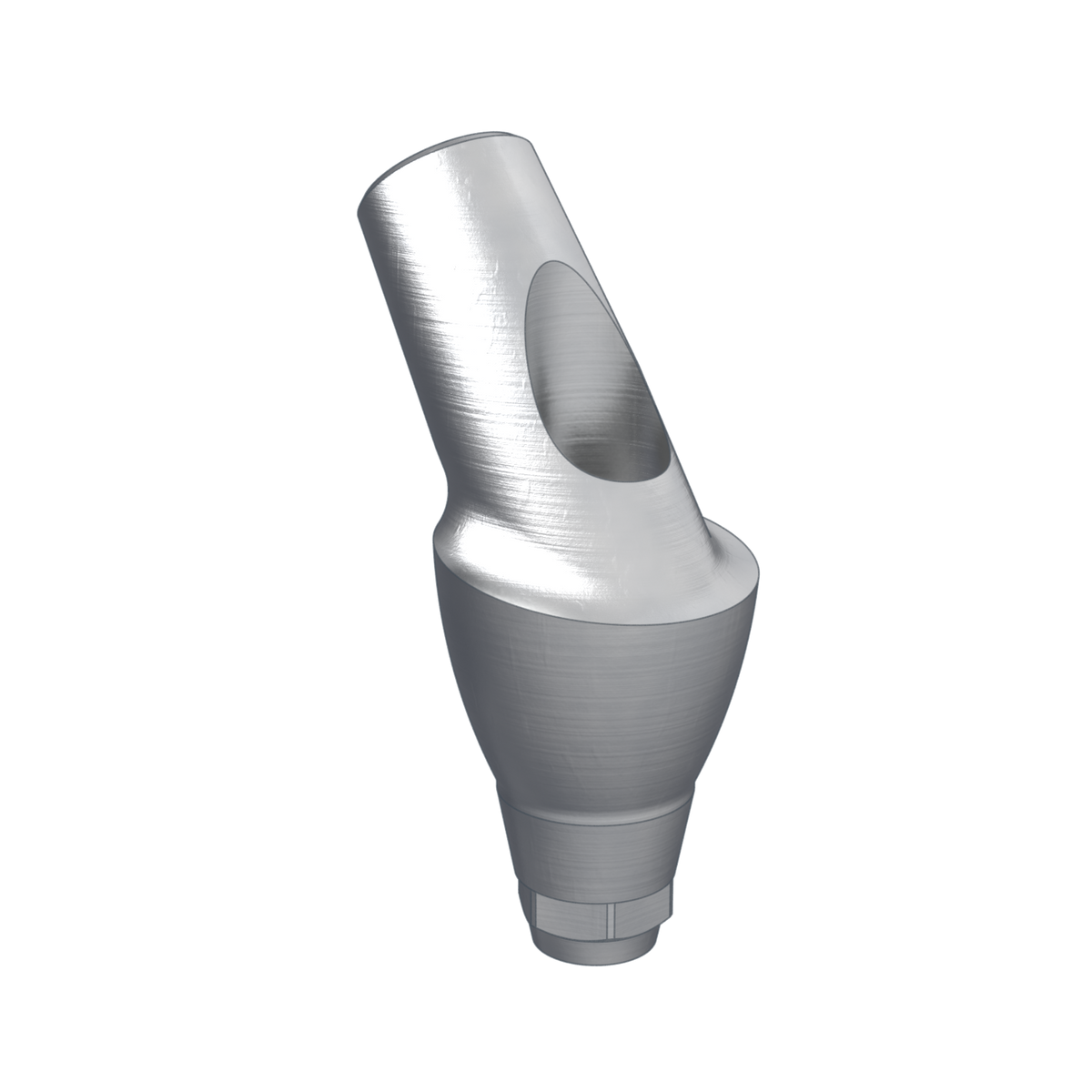

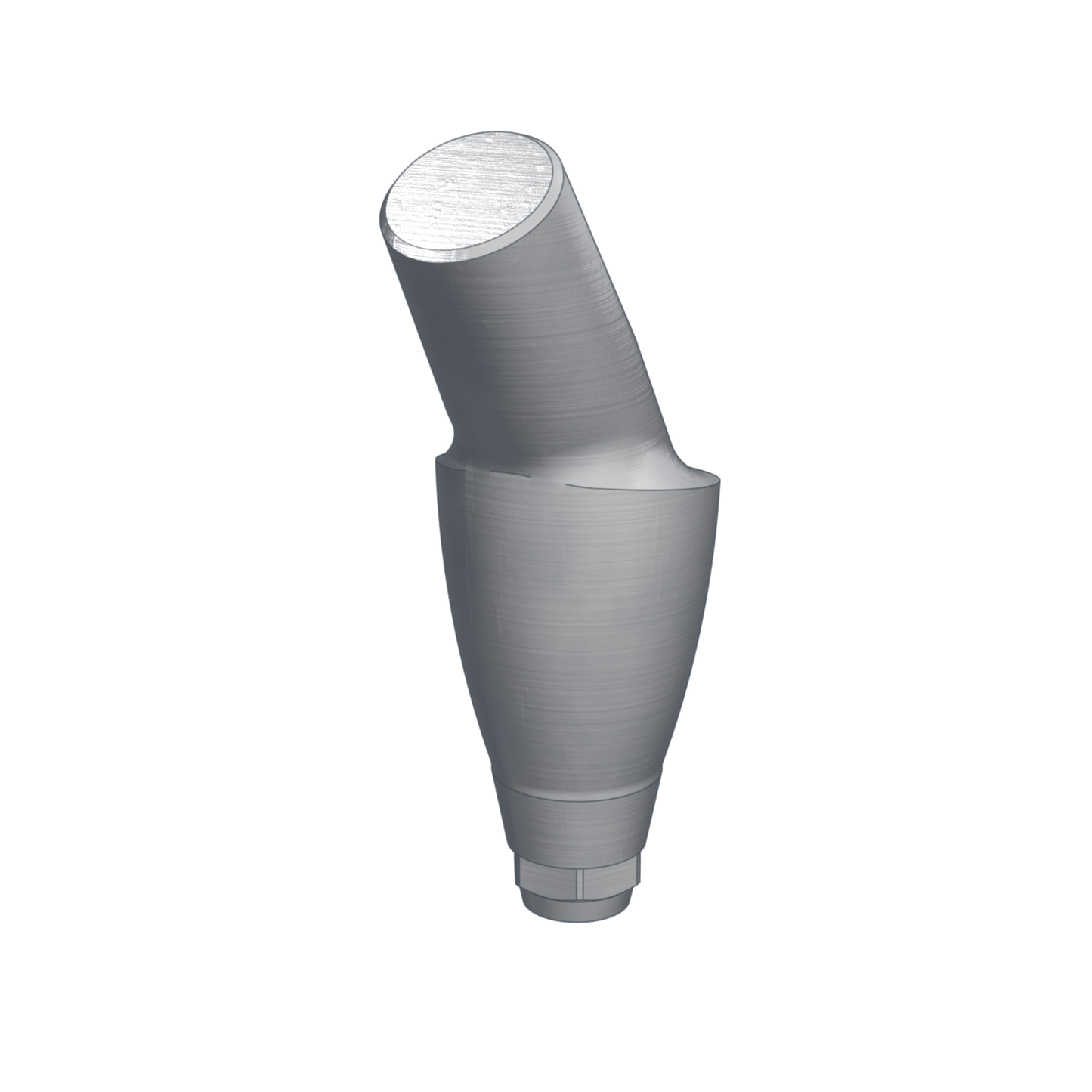

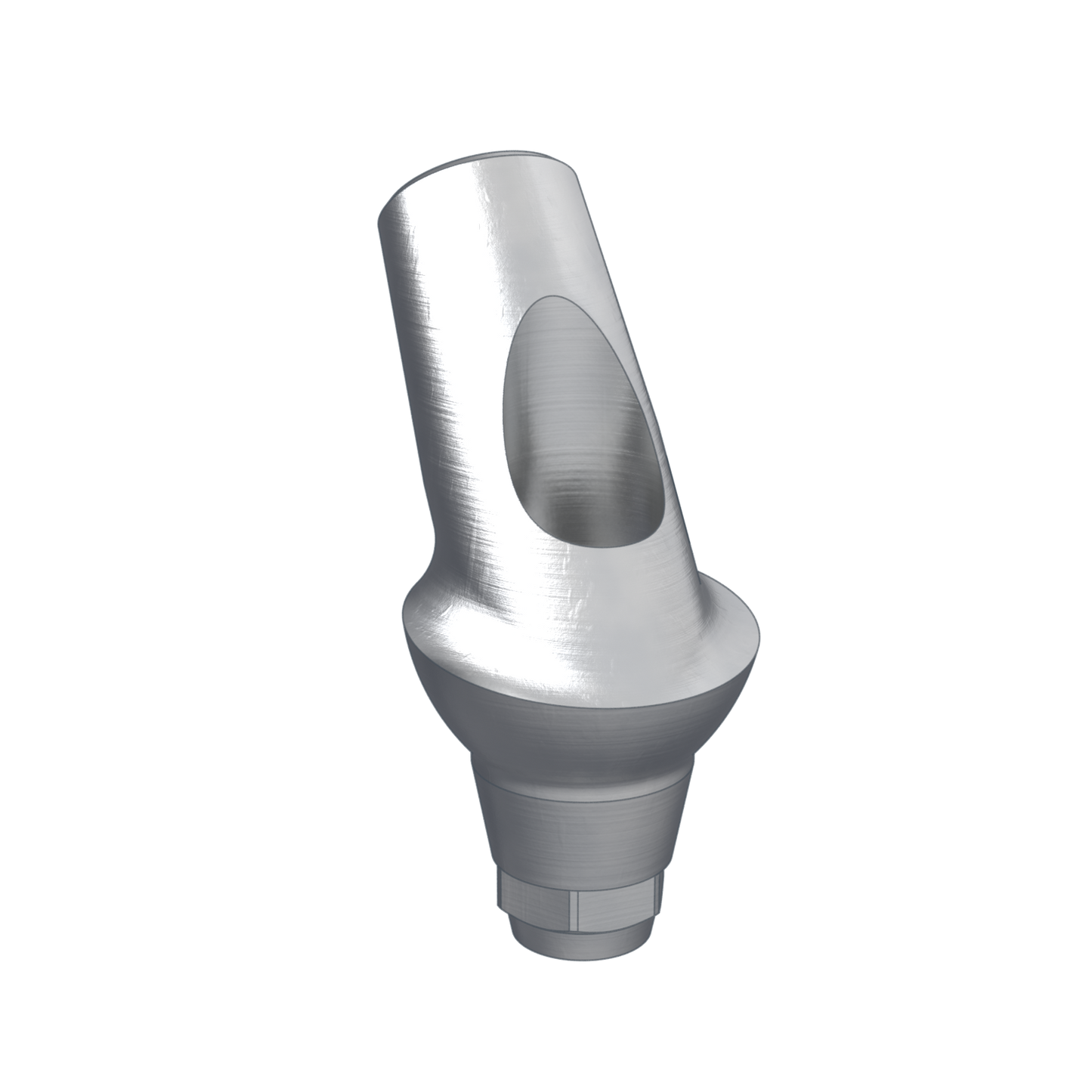

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
