BIONIKA DENTUM, Anatomic abutment, angled, 25°, positioned, type-B

Brand characteristics

The BIONIKA Dentum implant system utilises a Cone & Hex connection geometry that ensures precise alignment and micromovement-free stability.

When placed at or slightly below the cortical level, the implant enhances long-term bone preservation and increases primary stability.

The platform-switching design, with its smaller abutment diameter, allows the bone to naturally grow over the implant shoulder, protecting the bone–soft tissue interface.

The spirally micro-grooved, self-locking thread structure efficiently distributes functional loads, promoting rapid osseointegration and secure, micromovement-free fixation.

Its anatomical root-shaped body, self-cutting and bone-condensing design provide excellent primary stability, enabling immediate loading when clinically appropriate.

The Dentum system is compatible with the following implant platform:

• Dentium® Superline (DM)

It offers a precise fit and a dependable alternative to leading international implant systems, combining Hungarian precision with advanced engineering innovation.

Geometry characteristics

Customisable Abutment for Significant Angle Correction with Natural Contours and Precise Orientation

The Anatomic abutment, angled, 25°, positioned, type-B is an implant-level, customisable (grindable) abutment designed for use in cases involving greater implant angulation. The 25° inclination enables the correction of substantial deviations between the implant and prosthetic axes, while the anatomical form supports the creation of a natural gingival profile and aesthetic appearance.

The Type B indexing means that a defined point on the connection surface is always oriented in the same direction relative to the top of the abutment. This precise orientation allows the abutment to be repositioned accurately every time, which is crucial for the coordinated and functionally reliable construction of multi-implant restorations.

Main Advantages:

• 25° angle correction: Compensates for significant implant axis deviations.
• Anatomical design: Preformed geometry supports natural soft tissue contouring and appearance.
• Indexed orientation (Type B): Defined apex ensures accurate repositioning every time.
• Customisable form: Suitable for individual adjustment in clinical and laboratory settings.
• Implant-level connection: Stable and direct fit to the implant.
• Biocompatible titanium: Sterilisable, durable, and suitable for long-term clinical application.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-B is the ideal choice in situations where the implant axis significantly deviates from the prosthetic axis, and precise orientation is required for both functional reliability and aesthetic results.

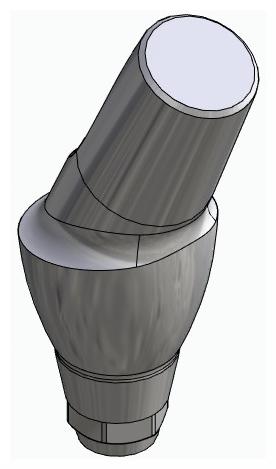

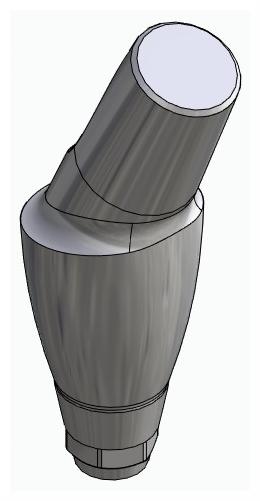

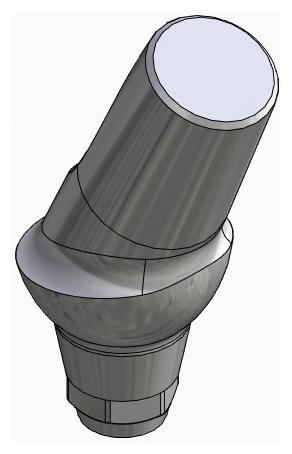

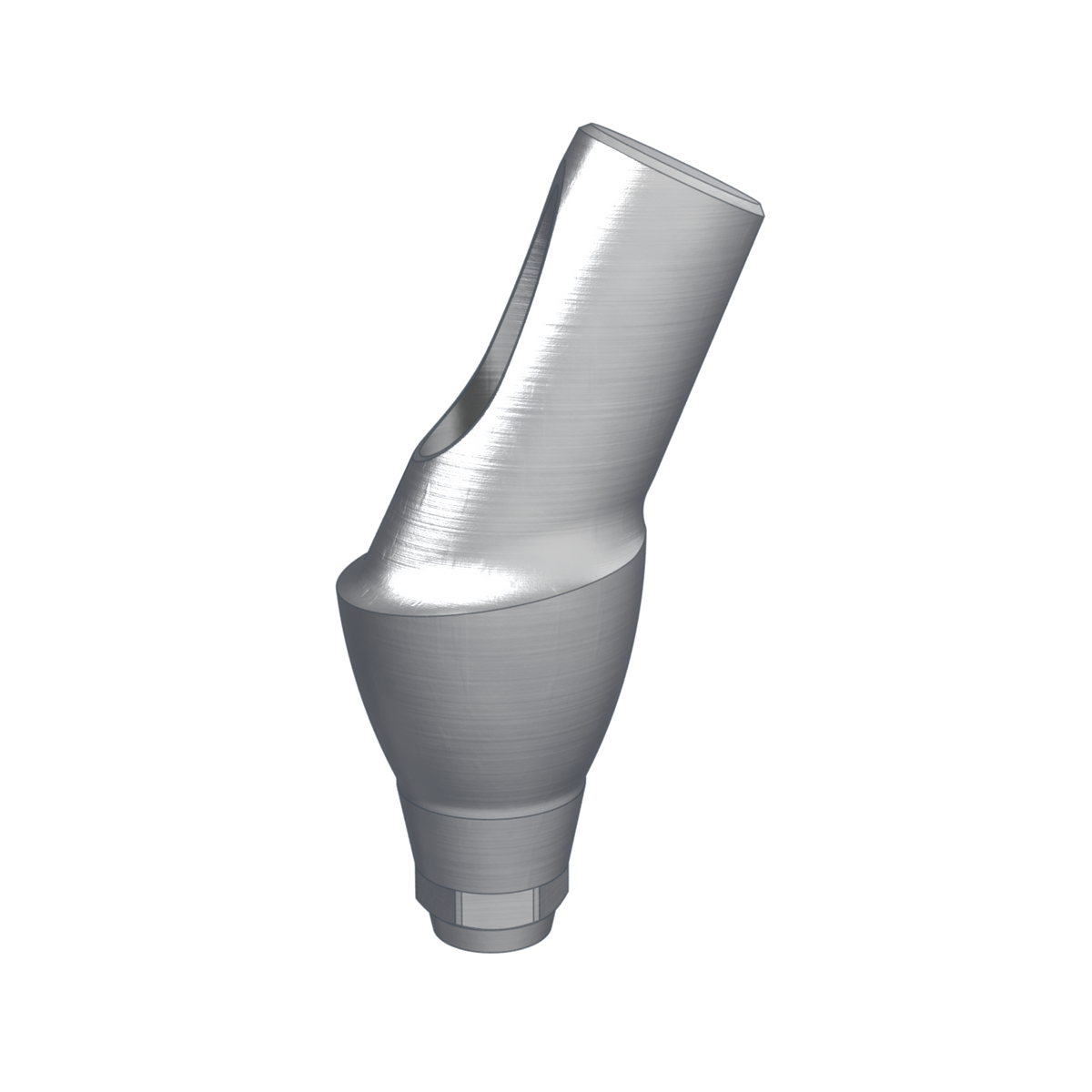

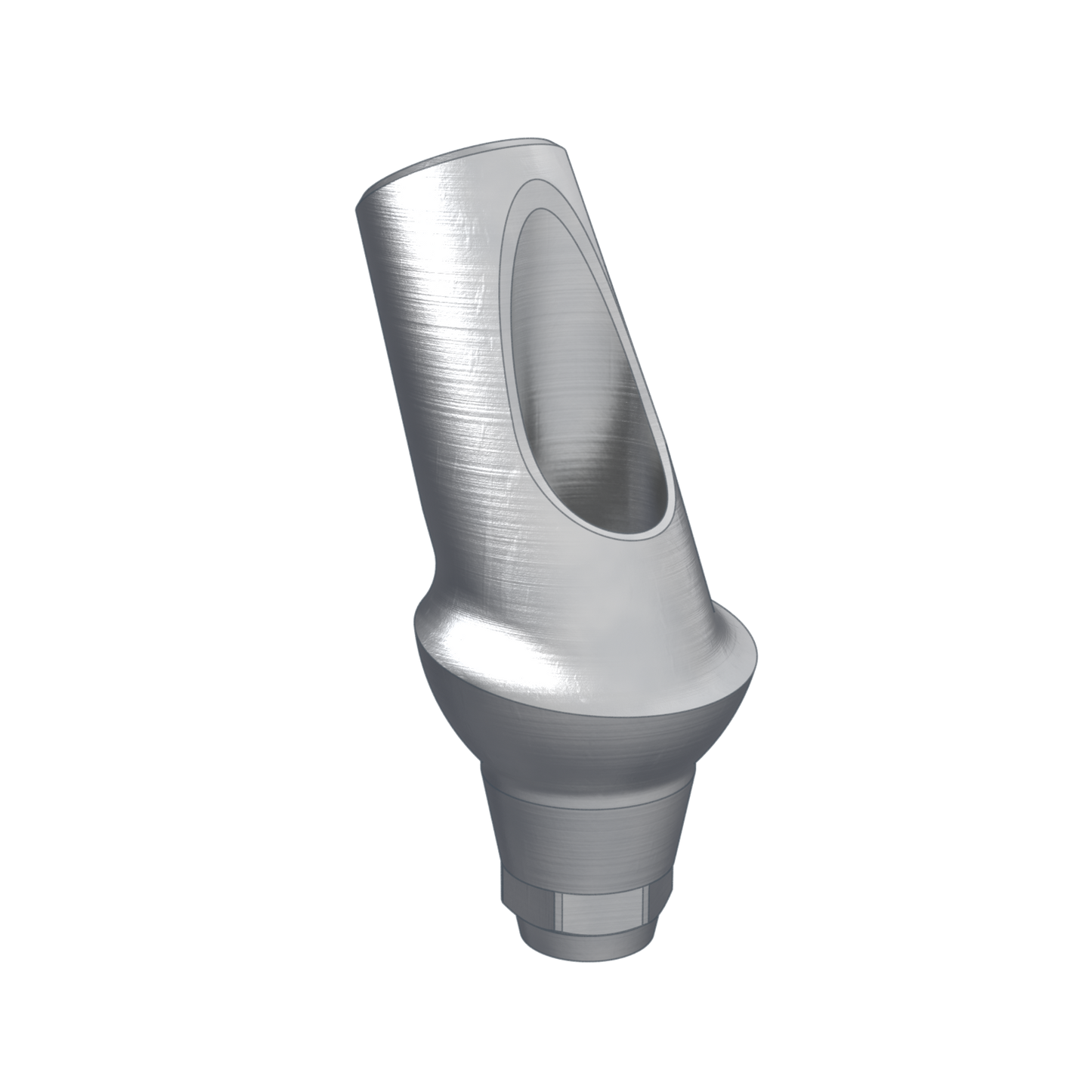

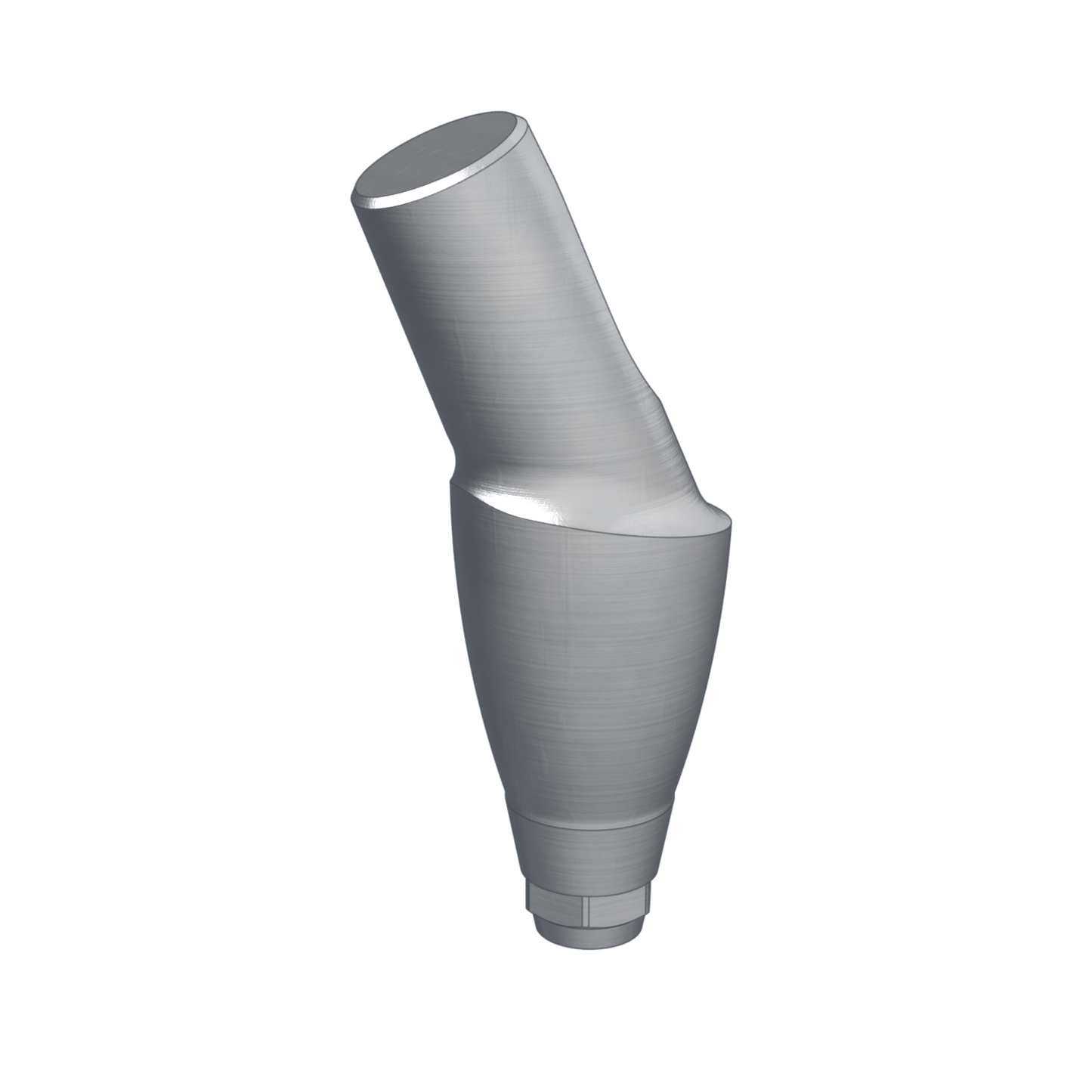

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
