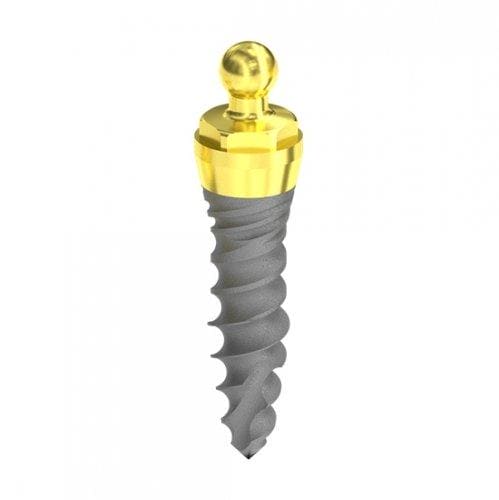

D 2,5 Hybrid mini micro-Patent head Implant

The HYBRID mini implants can be used in case of a thin bone structure and with an average hardness. This is an advantageous choice for an implantation without bone augmentation. The diameter of the ball head is 1.8 mm. The geometry of the HYBRID implant: 1. Brönemark type head part with a hexagonal cross section and with an inner cone and screw thread. 2. Micro thread structure with a four sectioned cortical cord thread. 3. A body part with a two sectioned normal cord thread, for the attenuation of dynamic forces. 4. Cycloid thread structure, giving primary stability, with an increased contour and thread depth, with a self-cutting edge and with a rotation inhibitor groove. According to the natural analogy, each element of the screw thread has a radial design and their cross section is always changing. The diameter of the mark 3 cord-threaded screw section is "k" smaller in diameter than the "m" thread design of the apical part, supplied with a sharper cycloid thread and applied to ensure the primary stability.
