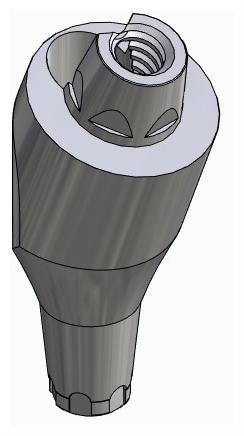

BIONIKA CX, Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A

Brand characteristics

The BIONIKA CX implant system is compatible with the Ankylos® X platform and features an advanced conical connection that ensures complete freedom from micromovement and highly stable load transfer.

The 30° cone angle directs forces deep into the implant body, promoting long-term bone preservation and stable soft tissue integration.

Through its platform switching design, the bone naturally adapts to the implant shoulder, forming a biological seal.

The spirally micro-grooved, self-locking thread profile provides enhanced primary stability, while the conical, self-compressing spongiosa thread allows for rapid osseointegration and uniform stress distribution.

Following the natural root anatomy, the CX implant offers precise placement, aesthetic outcomes, and reliable long-term stability for modern prosthetic applications.

Geometry characteristics

Angled, Position-Oriented Multi-Unit Abutment for LT2.7 System, Narrow Design with M1.6 Internal Thread

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A is a prosthetic abutment designed to connect to an implant or intermediate multi-unit base, offering angular correction where there is a deviation between the implant axis and the ideal prosthetic axis. Its narrow profile makes it an excellent choice for use in tight interproximal spaces or in the aesthetic zone.

The Type A orientation ensures that a specific flat surface of the connection interface always aligns in the same direction relative to the top of the abutment upon reinsertion. This is particularly advantageous in multi-implant screw-retained restorations where symmetry and axial alignment of prosthetic components are essential.

The M1.6 internal thread located at the top of the abutment enables the secure attachment of various prosthetic components, such as screw-retained bridge frameworks or suprastructures. The bottom of the abutment connects to the multi-unit base via a geometry-based fit, without a retaining screw.

Main Advantages:

• Angular correction: Compensates for deviations in implant angulation.
• Type A orientation: A specific flat surface consistently aligns upon reinsertion.
• Narrow profile: Ideal for limited space and anterior applications.
• LT2.7 compatibility: Ensures precise fit with system-specific multi-unit bases.
• M1.6 internal thread: Allows secure fixation of prosthetic components.
• Biocompatible titanium: Tissue-friendly, sterilizable, and safe for long-term use.

Indications:

The Multi-unit abutment, angled, positioned, narrow, LT2.7, type-A is an ideal solution for screw-retained restorations on multiple implants where angular correction, a narrow profile, precise orientation, and compatibility with the LT2.7 system are required.

The product image is for illustration purposes only; actual colour and geometry may vary depending on selected specifications.
