BIONIKA CX, Impression coping for closed tray, angled, type-B

Brand characteristics

The BIONIKA CX implant system is compatible with the Ankylos® X platform and features an advanced conical connection that ensures complete freedom from micromovement and highly stable load transfer.

The 30° cone angle directs forces deep into the implant body, promoting long-term bone preservation and stable soft tissue integration.

Through its platform switching design, the bone naturally adapts to the implant shoulder, forming a biological seal.

The spirally micro-grooved, self-locking thread profile provides enhanced primary stability, while the conical, self-compressing spongiosa thread allows for rapid osseointegration and uniform stress distribution.

Following the natural root anatomy, the CX implant offers precise placement, aesthetic outcomes, and reliable long-term stability for modern prosthetic applications.

Geometry characteristics

Accurate Implant Impression with Angle Correction and Defined Orientation

The Impression coping for closed tray, angled, type-B is an implant-level impression component specifically developed for the closed tray technique. Its angled design enables angle compensation, making it particularly advantageous when the implant axis deviates from the ideal direction.

The Type B positioning ensures that a specific corner of the connecting interface always aligns in the same orientation relative to the top part of the coping. This allows for precise and predictable reproduction during laboratory procedures, which is crucial in multiple-implant restorations where coordinated orientation is essential.

Main Advantages:

• Angled design: Facilitates angle correction for non-ideally positioned implants.
• For closed tray use: Enables impression taking without removing the coping, streamlining clinical workflows.
• Type B positioning: A specific corner of the connector is consistently aligned with the coping’s top for repeatable orientation.
• Implant-level connection: Provides stable, direct engagement with the implant.
• Biocompatible metal: Precisely machined, durable, and sterilisable material for clinical reliability.

Indications:

The Impression coping for closed tray, angled, type-B is the optimal choice in clinical situations requiring both angle correction and reliable orientation — particularly in the case of coordinated restorations involving multiple implants.

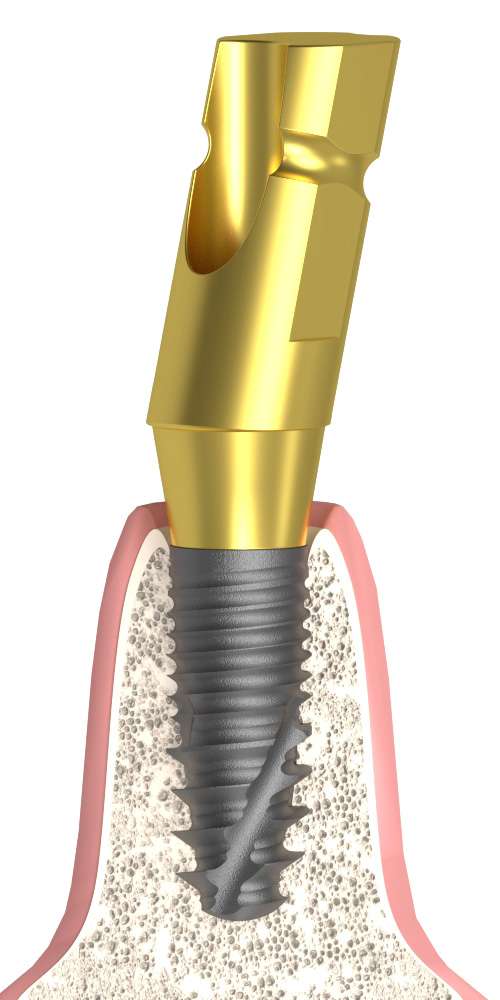

The product image is for illustration purposes only; colour and geometry may vary depending on selected parameters.
