BIONIKA CX, Anatomic abutment, angled, 25°, positioned, type-A

Brand characteristics

The BIONIKA CX implant system is compatible with the Ankylos® X platform and features an advanced conical connection that ensures complete freedom from micromovement and highly stable load transfer.

The 30° cone angle directs forces deep into the implant body, promoting long-term bone preservation and stable soft tissue integration.

Through its platform switching design, the bone naturally adapts to the implant shoulder, forming a biological seal.

The spirally micro-grooved, self-locking thread profile provides enhanced primary stability, while the conical, self-compressing spongiosa thread allows for rapid osseointegration and uniform stress distribution.

Following the natural root anatomy, the CX implant offers precise placement, aesthetic outcomes, and reliable long-term stability for modern prosthetic applications.

Geometry characteristics

Customisable Abutment with Natural Contour and Precise Orientation for Extended Angle Correction

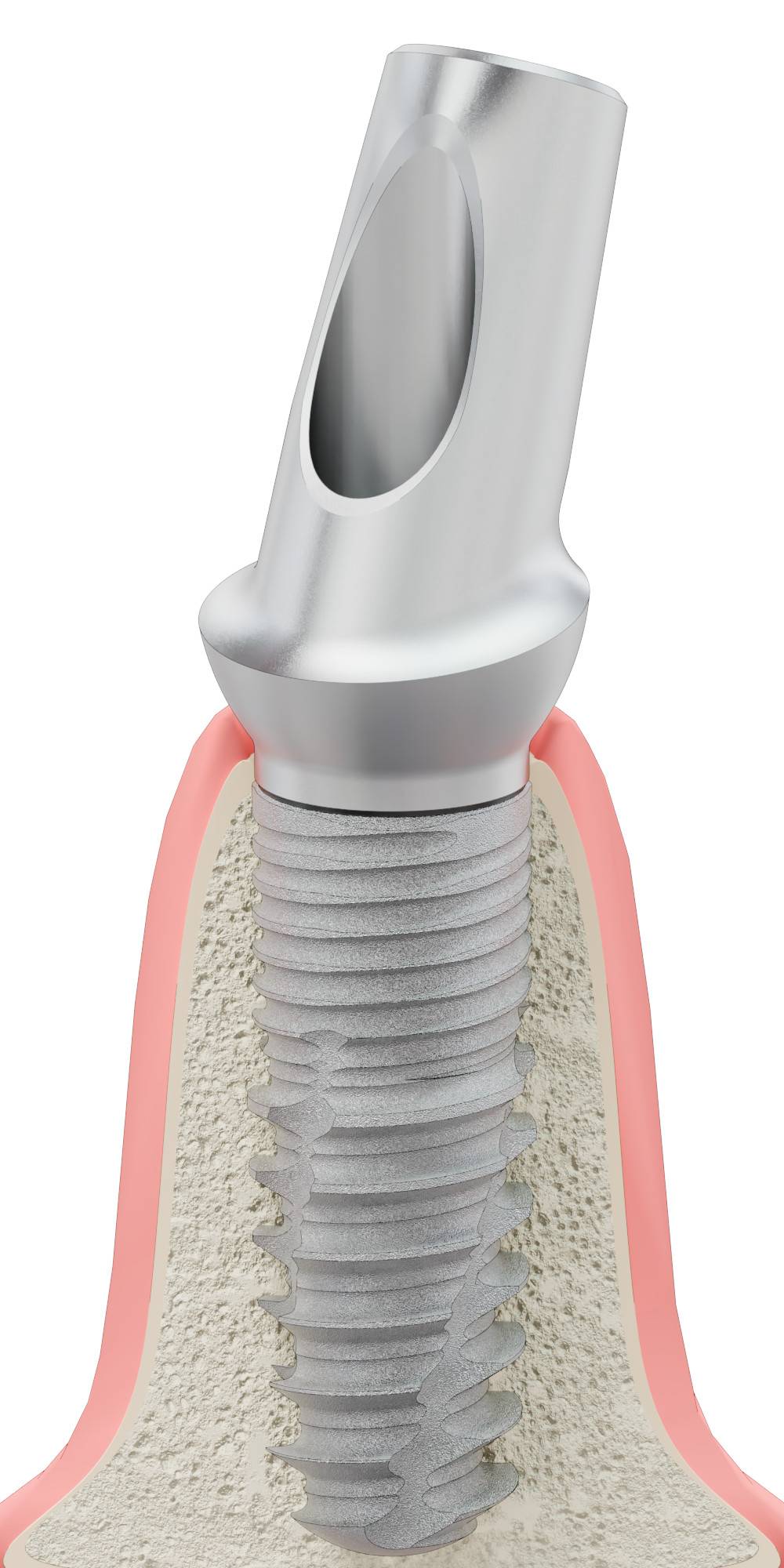

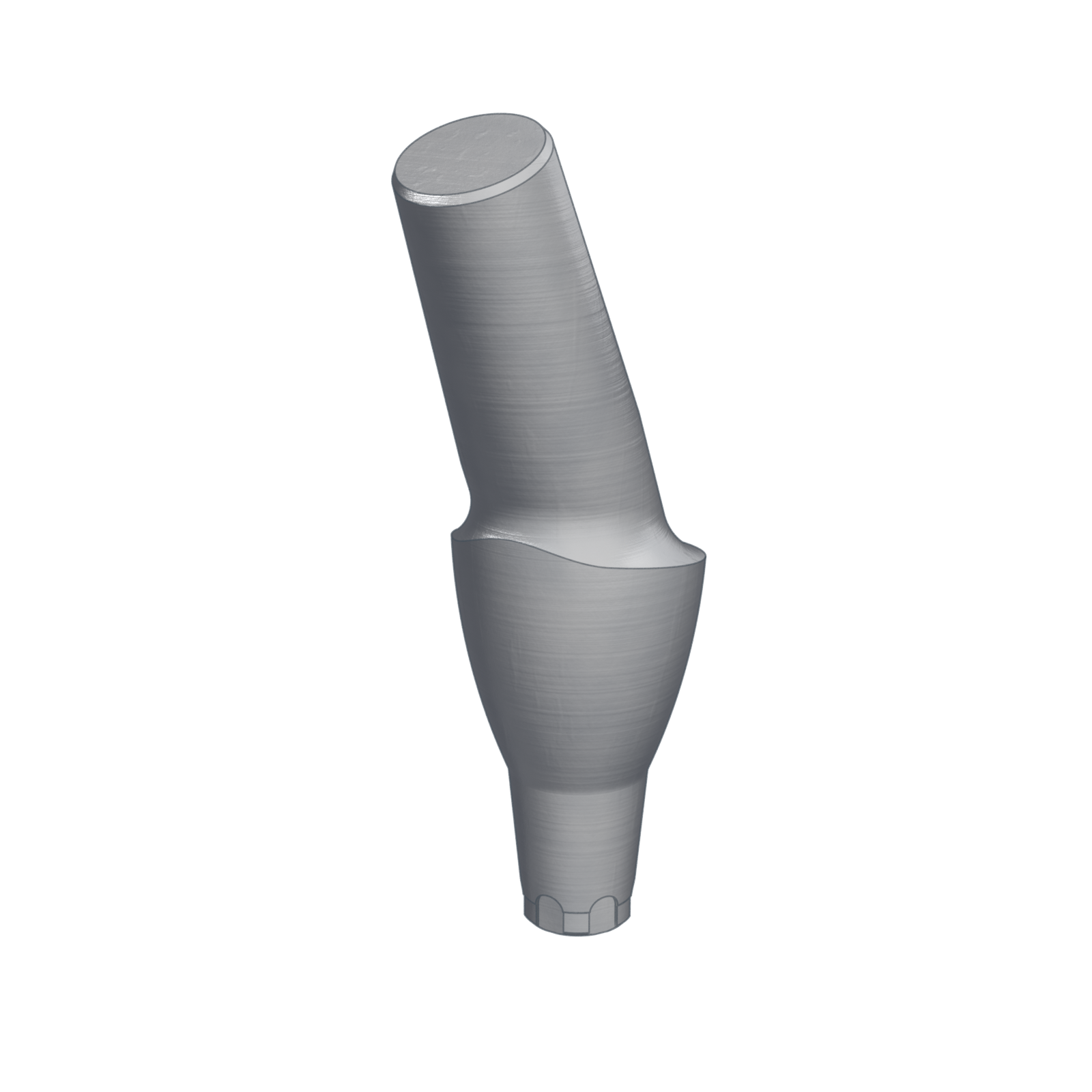

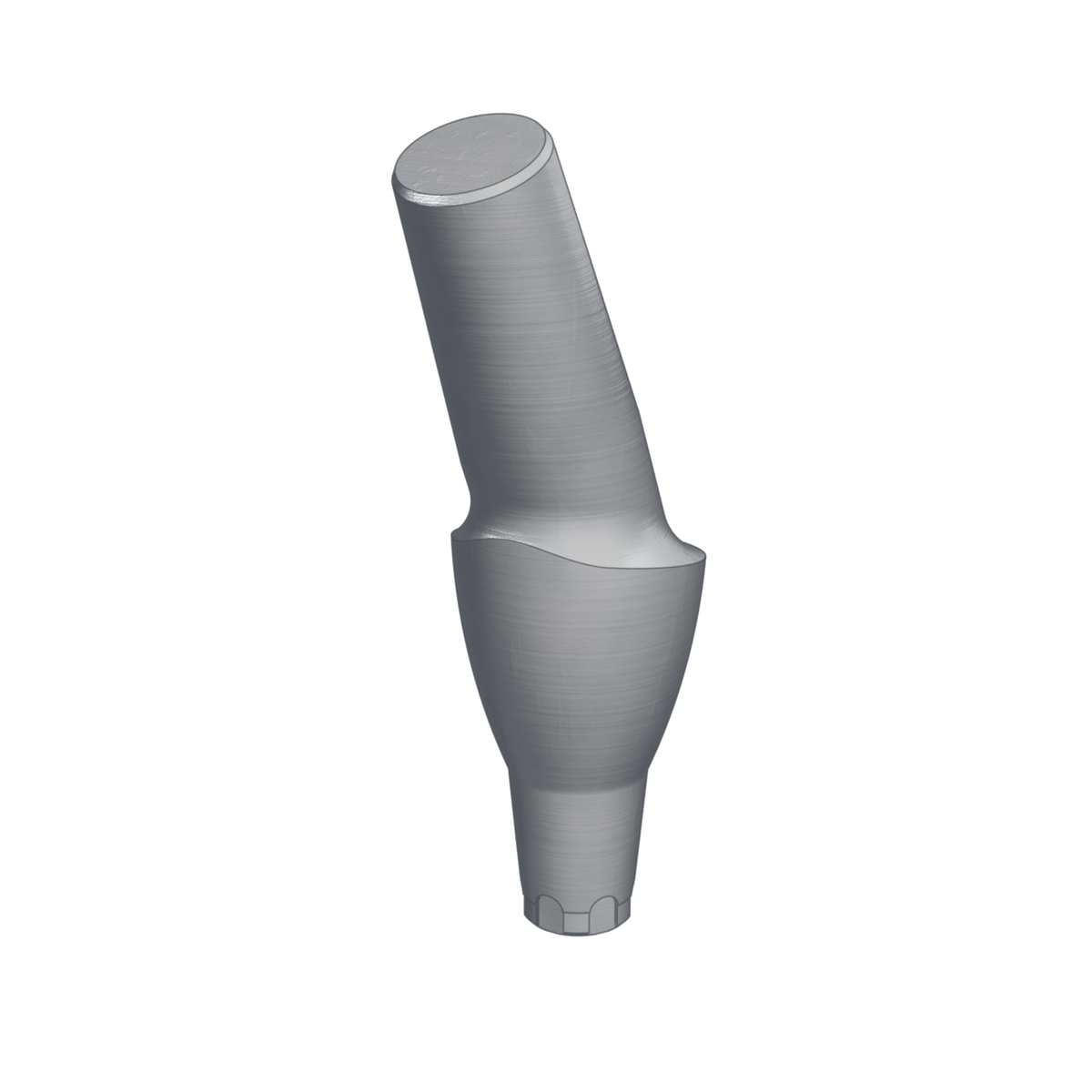

The Anatomic abutment, angled, 25°, positioned, type-A is an implant-level, customisable (grindable) abutment designed for cases requiring significant angle correction without compromising on aesthetic or functional outcomes. The 25° angulation allows for the compensation of major axis deviations, while the anatomical shape supports the creation and maintenance of a natural soft tissue profile.

The Type A indexed design ensures that a defined flat surface of the connection always aligns in the same direction relative to the top part of the abutment. This fixed orientation is particularly advantageous in multi-implant restorations, as it ensures precision in fit, aesthetics, and technical execution.

Main Advantages:

• 25° angle correction: Ideal for compensating substantial axial deviations.
• Anatomical shape: Preformed geometry supports the formation and preservation of natural gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures accurate repositioning every time.
• Customisable design: Allows individual shaping during laboratory or clinical procedures.
• Implant-level fit: Stable and reliable connection with the implant.
• Biocompatible titanium: Sterilisable, durable, and safe for long-term clinical use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-A is an ideal solution in cases where the implant axis significantly diverges from the intended prosthetic axis, and precise orientation and aesthetic integration are essential.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
