BIONIKA CORTICAL, Tubular abutment, stepped, implant level, positioned

Brand characteristics

The BIONIKA Cortical implant system features an advanced Hex@con conical connection with a 30° taper angle, providing exceptionally precise and micromovement-free engagement.

This design allows for accurate open and closed tray impressions even in cases of greater angulation, while ensuring optimal force transmission between the abutment and the implant.

Placement at or slightly below the cortical level (0.5–1 mm) enhances long-term implant stability and supports bone level preservation.

The internal platform-switching configuration enables the bone to naturally grow over the implant shoulder, while the soft tissue forms a biological seal around the contact zone.

The conical, spirally micro-grooved cortical surface and self-locking thread structure ensure efficient load distribution, rapid osseointegration, and micromovement-free stability.

Its anatomical root-shaped body with a high-pitch, bone-condensing thread geometry allows for immediate loading due to the excellent primary stability achieved upon insertion.

Geometry characteristics

Indexed Cylindrical Abutment with Stepped Design and Implant-Level Connection for Custom Restorations

The Tubular abutment, stepped, implant level, positioned is a precision prosthetic component that connects directly to the implant and enables the secure attachment of custom restorations—fabricated digitally or traditionally—such as zirconia or metal-ceramic crowns and bridges. The stepped design supports optimal soft tissue profile and aesthetic emergence between the restoration and the gingiva.

The indexed configuration ensures that a defined surface (e.g., flat or apex) of the connection always aligns in the same direction relative to the top part of the abutment during reinsertion. This is particularly beneficial for multi-implant restorations, where orientation coordination, aesthetic symmetry, and predictable prosthetic fit are essential.

Main Advantages:

• Stepped design: Aesthetic emergence profile and soft tissue support.
• Indexed orientation: Enables precise and repeatable repositioning.
• Implant-level connection: Stable and direct fit to the implant platform.
• Compatible with digital and conventional workflows: Ideal for custom restorations.
• Biocompatible titanium: Long-lasting, tissue-friendly, and sterilisable material.
• The screw is included.

Indications:

The Tubular abutment, stepped, implant level, positioned is the ideal solution for implant-level custom restorations, particularly in cases where precise repositioning, aesthetic adaptation, and long-term stability are critical to prosthetic success.

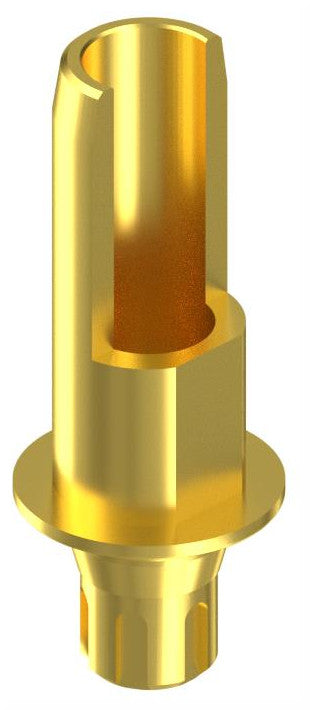

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
