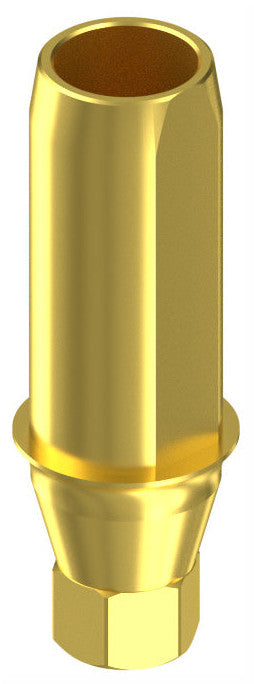

BIONIKA CORTICAL, Tubular abutment, positioned

Brand characteristics

The BIONIKA Cortical implant system features an advanced Hex@con conical connection with a 30° taper angle, providing exceptionally precise and micromovement-free engagement.

This design allows for accurate open and closed tray impressions even in cases of greater angulation, while ensuring optimal force transmission between the abutment and the implant.

Placement at or slightly below the cortical level (0.5–1 mm) enhances long-term implant stability and supports bone level preservation.

The internal platform-switching configuration enables the bone to naturally grow over the implant shoulder, while the soft tissue forms a biological seal around the contact zone.

The conical, spirally micro-grooved cortical surface and self-locking thread structure ensure efficient load distribution, rapid osseointegration, and micromovement-free stability.

Its anatomical root-shaped body with a high-pitch, bone-condensing thread geometry allows for immediate loading due to the excellent primary stability achieved upon insertion.

Geometry characteristics

Indexed Cylindrical Abutment with Implant-Level Connection for Custom Digital or Conventional Restorations

The Tubular abutment, positioned is a precision implant-level component that allows for the stable and repeatable fixation of screw-retained crowns, bridge frameworks, or custom abutments. Its indexed configuration ensures that a defined flat surface or apex on the connection is always aligned in the same direction relative to the top part of the restoration upon reinsertion. This enables precise fit and consistent restoration orientation, particularly in multi-implant cases.

The cylindrical design is well-suited for restorations manufactured via CAD/CAM or conventional methods and is especially advantageous when prosthetic axis alignment, contact point control, and aesthetic integration are critical.

Main Advantages:

• Indexed configuration: Ensures the abutment is always positioned in the same orientation upon reinsertion.
• Implant-level connection: Stable and precise fixation directly to the implant.
• Universal cylindrical shape: Reliable foundation for screw-retained crowns and bridges.
• Compatible with digital and conventional workflows: Flexible application in dental laboratories.
• Biocompatible titanium: Tissue-friendly, sterilisable, and designed for long-term use.
• The screw is included.

Indications:

The Tubular abutment, positioned is an excellent choice for implant-level custom restorations, especially where accurate repositioning and orientation stability are essential—such as in multi-unit restorations, CAD/CAM-designed components, or crowns in the aesthetic zone.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
