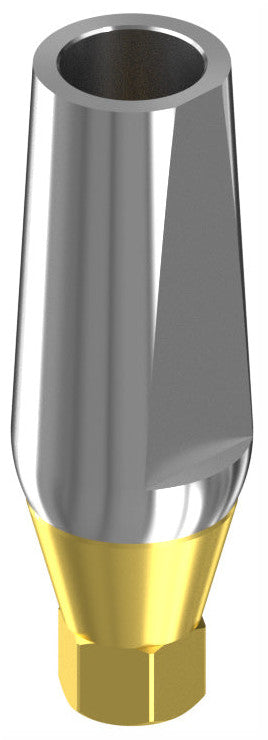

BIONIKA CORTICAL, Narrow abutment, straight, positioned

Brand characteristics

The BIONIKA Cortical implant system features an advanced Hex@con conical connection with a 30° taper angle, providing exceptionally precise and micromovement-free engagement.

This design allows for accurate open and closed tray impressions even in cases of greater angulation, while ensuring optimal force transmission between the abutment and the implant.

Placement at or slightly below the cortical level (0.5–1 mm) enhances long-term implant stability and supports bone level preservation.

The internal platform-switching configuration enables the bone to naturally grow over the implant shoulder, while the soft tissue forms a biological seal around the contact zone.

The conical, spirally micro-grooved cortical surface and self-locking thread structure ensure efficient load distribution, rapid osseointegration, and micromovement-free stability.

Its anatomical root-shaped body with a high-pitch, bone-condensing thread geometry allows for immediate loading due to the excellent primary stability achieved upon insertion.

Geometry characteristics

Precision Abutment for Narrow Implant Sites with Indexed Connection

The Narrow abutment, straight, positioned is an implant-level component specifically designed for use in narrow interproximal spaces. Its straight profile facilitates prosthetic procedures, while the narrow shape allows precise placement even in anatomically limited areas.

The indexed design ensures that the abutment consistently aligns in the same orientation upon insertion. This is particularly important in cases involving multiple implants, where consistent orientation plays a key role in achieving proper fit, aesthetics, and functionality of the prosthetic restoration.

Main Advantages:

• Narrow profile: Ideal for tight spaces, anterior regions, or limited gingival height.
• Straight shape: Simplifies prosthetic preparation and provides easy access.
• Indexed connection: Precise repositioning and prosthetic alignment across multiple implants.
• Implant-level fit: Secure and stable connection to the implant.
• Biocompatible titanium: Safe, sterilizable, and suitable for long-term clinical use.
• The product includes the screw.

Application Area:

The Narrow abutment, straight, positioned is an excellent choice in the aesthetic zone and narrow implant sites, where minimal spatial requirements and accurate repositioning are both essential.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
