BIONIKA CORTICAL, Multi-unit SR abutment, straight, screwable

Brand characteristics

The BIONIKA Cortical implant system features an advanced Hex@con conical connection with a 30° taper angle, providing exceptionally precise and micromovement-free engagement.

This design allows for accurate open and closed tray impressions even in cases of greater angulation, while ensuring optimal force transmission between the abutment and the implant.

Placement at or slightly below the cortical level (0.5–1 mm) enhances long-term implant stability and supports bone level preservation.

The internal platform-switching configuration enables the bone to naturally grow over the implant shoulder, while the soft tissue forms a biological seal around the contact zone.

The conical, spirally micro-grooved cortical surface and self-locking thread structure ensure efficient load distribution, rapid osseointegration, and micromovement-free stability.

Its anatomical root-shaped body with a high-pitch, bone-condensing thread geometry allows for immediate loading due to the excellent primary stability achieved upon insertion.

Geometry characteristics

Straight SR-Type Multi-Unit Abutment with Screw-In Design for Cement-Free Prosthetic Systems

The Multi-unit SR abutment, straight, screwable is a self-engaging, screw-in prosthetic abutment with a straight profile, designed to connect to an implant or intermediate SR (Screw-Retained) multi-unit system. Its screw-in design enables secure fixation to the platform without the need for an additional retaining screw, while the straight geometry makes it an ideal solution when the implant axis is well aligned and no angulation correction is required.

This SR-type abutment is particularly well-suited for fully screw-retained restorations where the final prosthesis is accessible and cement-free. This significantly simplifies potential removal, maintenance, and reinsertion, especially in restorations involving multiple implants.

Main Advantages:

• SR system compatibility: Ideal for cement-free, screw-retained restorations.
• Straight alignment: Easy and direct fit when angulation correction is not necessary.
• Screw-in design: The abutment features an internal thread and does not require a separate retaining screw.
• Suitable for multi-unit restorations: Especially recommended for full-arch and implant-supported bridges.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Indications:

The Multi-unit SR abutment, straight, screwable is an excellent choice for cement-free, screw-retained prosthetic restorations on multiple implants where the implant angulation allows for straight insertion. It offers a stable, easy-to-use solution that supports efficient and reliable clinical workflows.

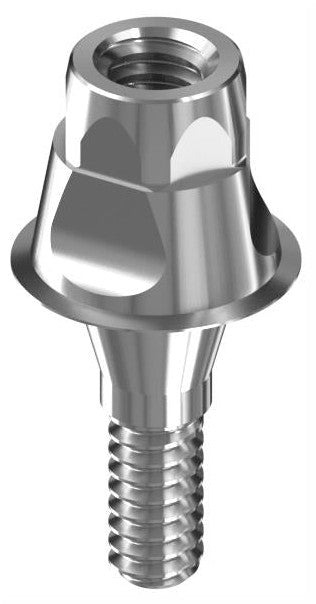

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected specifications.
