BIONIKA CORTICAL, Locator abutment, straight, mini

Brand characteristics

The BIONIKA Cortical implant system features an advanced Hex@con conical connection with a 30° taper angle, providing exceptionally precise and micromovement-free engagement.

This design allows for accurate open and closed tray impressions even in cases of greater angulation, while ensuring optimal force transmission between the abutment and the implant.

Placement at or slightly below the cortical level (0.5–1 mm) enhances long-term implant stability and supports bone level preservation.

The internal platform-switching configuration enables the bone to naturally grow over the implant shoulder, while the soft tissue forms a biological seal around the contact zone.

The conical, spirally micro-grooved cortical surface and self-locking thread structure ensure efficient load distribution, rapid osseointegration, and micromovement-free stability.

Its anatomical root-shaped body with a high-pitch, bone-condensing thread geometry allows for immediate loading due to the excellent primary stability achieved upon insertion.

Geometry characteristics

Compact Abutment for Locator System with Low Vertical Profile

The Locator abutment, straight, mini is an implant-level component designed for securing removable dentures, fully compatible with the widely used Locator retention system. The "mini" version offers an optimal solution in cases with limited interocclusal space, where the standard Locator abutment dimensions are not suitable.

Its straight design allows easy insertion when the implant axis is favourable. Thanks to the replaceable retention inserts of the Locator system, customisable retention strength can be achieved to suit individual patient needs. The reduced height of the mini version provides added flexibility for prosthetic and aesthetic planning in confined vertical spaces.

Main Advantages:

• Mini design: Extremely low vertical profile, ideal for space-limited cases.
• Implant-level connection: Provides direct and stable fixation to the implant.
• Straight form: Simple placement when no angulation correction is needed.
• Locator compatibility: Works with the proven system using replaceable retention inserts.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Application Area:

The Locator abutment, straight, mini is an excellent choice when a removable prosthesis must be retained but vertical space is limited. It is particularly recommended for fully edentulous cases requiring implant-supported overdenture solutions.

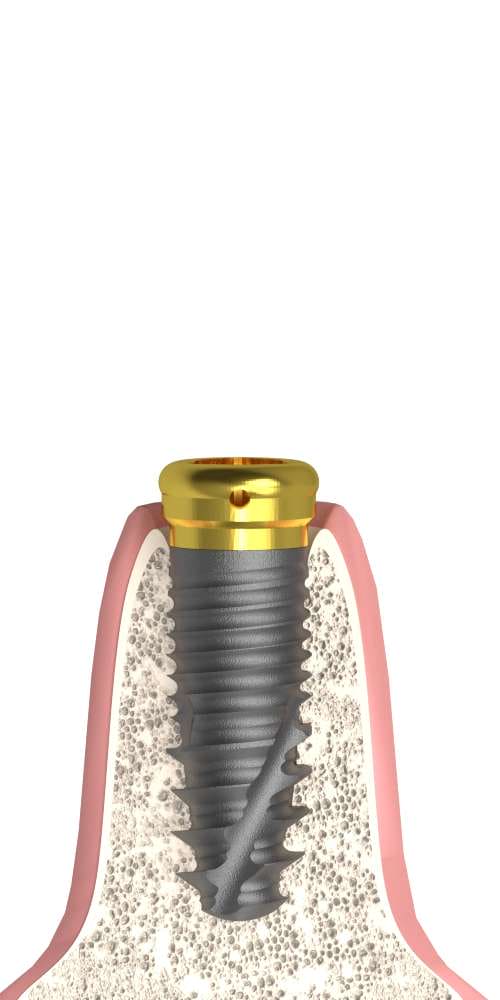

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
