BIONIKA CORTICAL, Impression coping for closed tray, parallel, positioned

Brand characteristics

The BIONIKA Cortical implant system features an advanced Hex@con conical connection with a 30° taper angle, providing exceptionally precise and micromovement-free engagement.

This design allows for accurate open and closed tray impressions even in cases of greater angulation, while ensuring optimal force transmission between the abutment and the implant.

Placement at or slightly below the cortical level (0.5–1 mm) enhances long-term implant stability and supports bone level preservation.

The internal platform-switching configuration enables the bone to naturally grow over the implant shoulder, while the soft tissue forms a biological seal around the contact zone.

The conical, spirally micro-grooved cortical surface and self-locking thread structure ensure efficient load distribution, rapid osseointegration, and micromovement-free stability.

Its anatomical root-shaped body with a high-pitch, bone-condensing thread geometry allows for immediate loading due to the excellent primary stability achieved upon insertion.

Geometry characteristics

Parallel-Walled, Indexed Impression Coping for Closed Tray Technique

The Impression coping for closed tray, parallel, positioned is an implant-level component specifically designed for accurate and stable impressions using the closed tray technique. The parallel-walled geometry enhances the fit and stability of the coping within the impression material, minimizing movement and distortion during removal. This shape is particularly advantageous when high retention and minimal deviation are clinical priorities.

The indexed design ensures that the coping is always repositioned in the exact same predefined orientation on the implant, enabling the precise transfer of spatial positioning to the dental laboratory. This feature is essential in multi-implant restorations where angular discrepancies between implants must be reliably reproduced.

Main Advantages:

• Parallel geometry: Straight walls for enhanced stability and precise fit within the impression material.
• Closed tray compatibility: Easier clinical procedure without removing the coping from the impression tray.
• Indexed connection: Fixed orientation for accurate and repeatable placement.
• Implant-level fit: Reliable, stable connection directly to the implant.
• Biocompatible, precision-machined material: Sterilizable and durable for long-term use.

Indications:

The Impression coping for closed tray, parallel, positioned is recommended in all clinical situations requiring highly accurate spatial transfer, particularly in multi-implant restorations with angulated positioning.

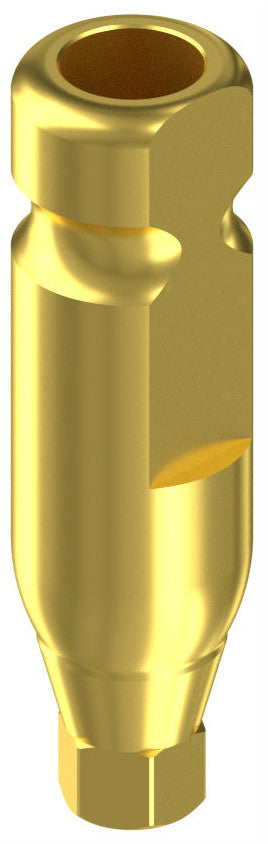

The product image is for illustration purposes only; colour and geometry may vary depending on selected specifications.
