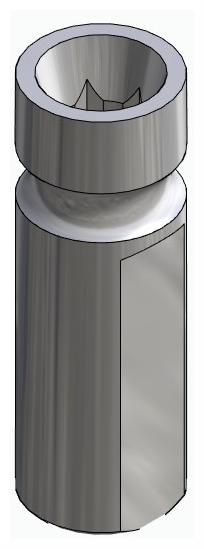

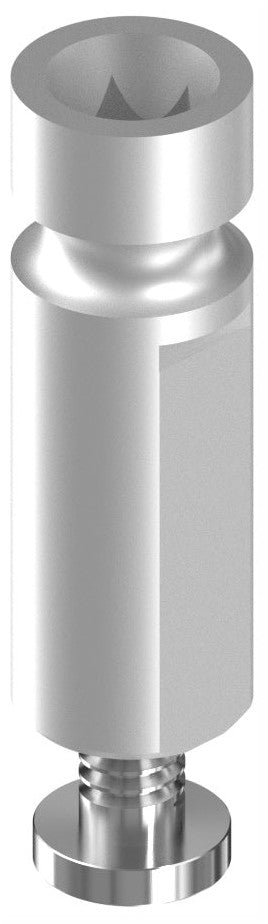

BIONIKA CORTICAL, Implant analog for digital scan

Brand characteristics

The BIONIKA Cortical implant system features an advanced Hex@con conical connection with a 30° taper angle, providing exceptionally precise and micromovement-free engagement.

This design allows for accurate open and closed tray impressions even in cases of greater angulation, while ensuring optimal force transmission between the abutment and the implant.

Placement at or slightly below the cortical level (0.5–1 mm) enhances long-term implant stability and supports bone level preservation.

The internal platform-switching configuration enables the bone to naturally grow over the implant shoulder, while the soft tissue forms a biological seal around the contact zone.

The conical, spirally micro-grooved cortical surface and self-locking thread structure ensure efficient load distribution, rapid osseointegration, and micromovement-free stability.

Its anatomical root-shaped body with a high-pitch, bone-condensing thread geometry allows for immediate loading due to the excellent primary stability achieved upon insertion.

Geometry characteristics

Model Implant for Digital Impression-Taking and CAD/CAM Workflows

The Implant analog for digital scan is a specially designed model implant intended for digital dental laboratory workflows. It accurately replicates the original implant’s connection geometry, while its surface is optimised for precise detection by both intraoral and laboratory scanners, ensuring distortion-free, high-resolution data capture.

Based on the digital impression, this model implant enables the accurate design and manufacturing of prosthetic components and restorations using CAD/CAM technology. It can be securely integrated into printed or moulded models, ensuring accurate spatial position transfer between digital and physical workflows.

Main Advantages:

• Scanner-optimised surface: Excellent visibility for digital scanners, ensuring high-precision scans.
• Implant-compatible interface: Precisely replicates the connection geometry of the original implant.
• For digital workflows: Enables full CAD/CAM integration from design to fabrication.
• Stable model fixation: Securely insertable into 3D-printed or conventional models.

Application:

The Implant analog for digital scan is an ideal solution for any dental laboratory working with digital workflows, where accurate and distortion-free modelling of implant-supported restorations is a critical requirement.

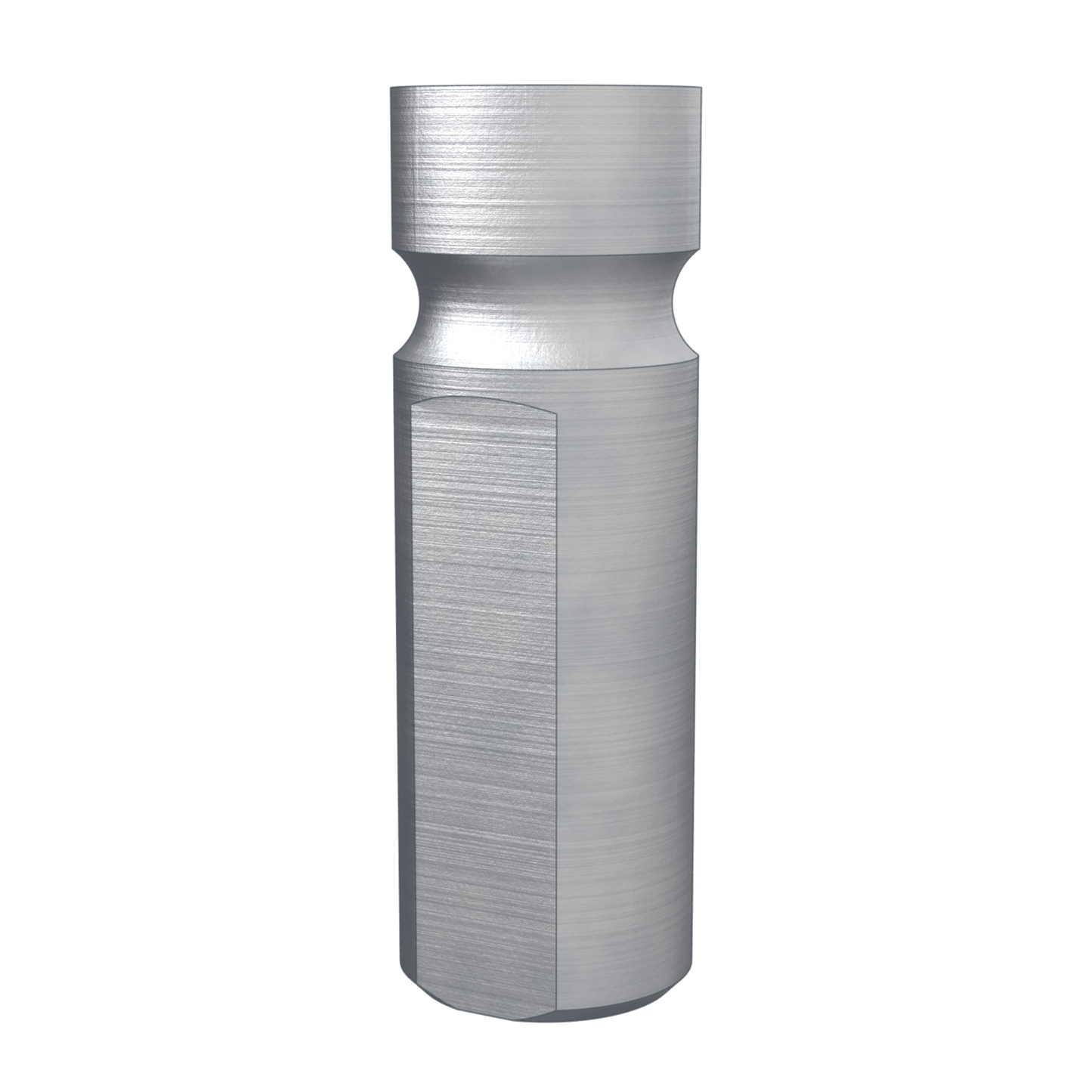

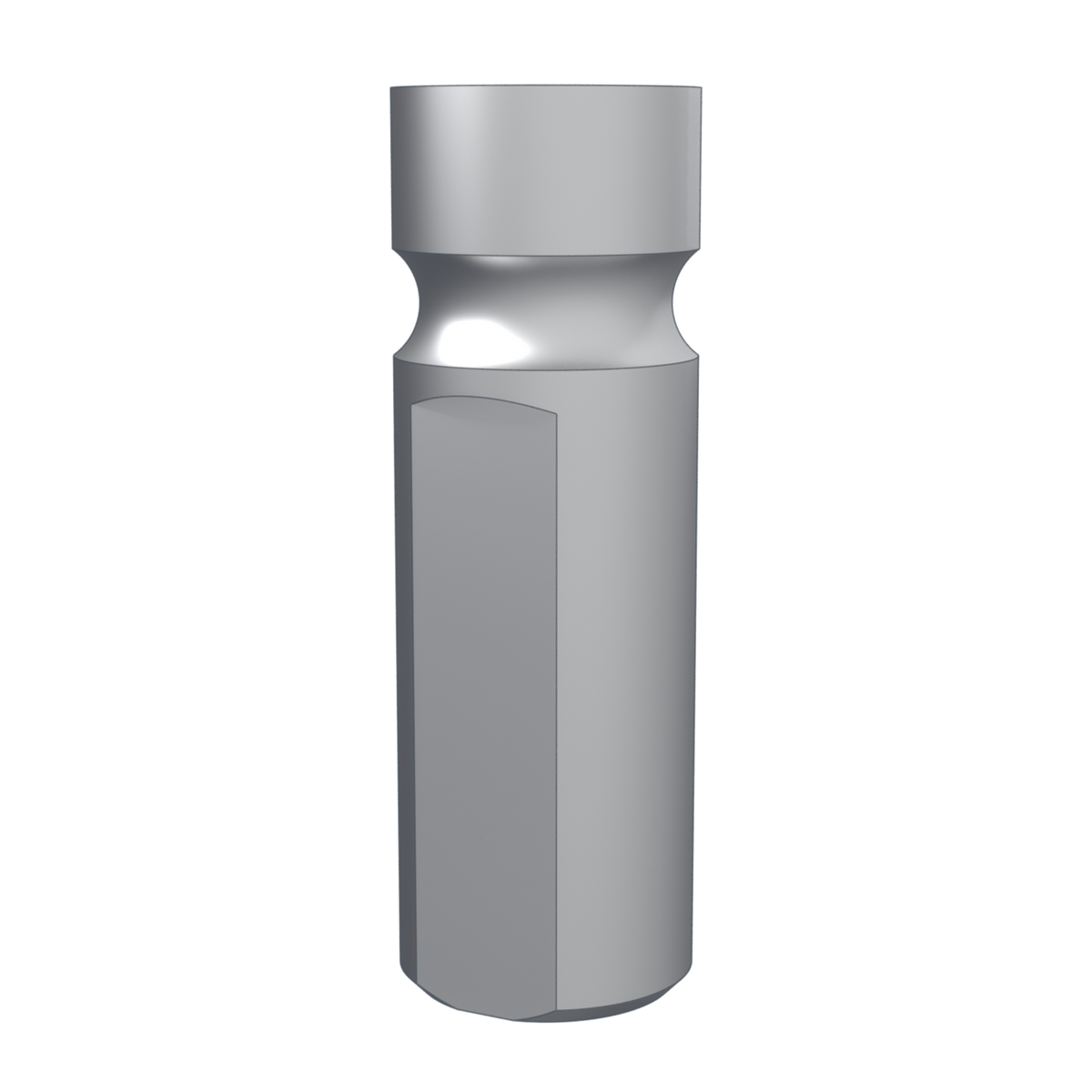

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected dimensions.
