BIONIKA CORTICAL, Implant analog

Brand characteristics

The BIONIKA Cortical implant system features an advanced Hex@con conical connection with a 30° taper angle, providing exceptionally precise and micromovement-free engagement.

This design allows for accurate open and closed tray impressions even in cases of greater angulation, while ensuring optimal force transmission between the abutment and the implant.

Placement at or slightly below the cortical level (0.5–1 mm) enhances long-term implant stability and supports bone level preservation.

The internal platform-switching configuration enables the bone to naturally grow over the implant shoulder, while the soft tissue forms a biological seal around the contact zone.

The conical, spirally micro-grooved cortical surface and self-locking thread structure ensure efficient load distribution, rapid osseointegration, and micromovement-free stability.

Its anatomical root-shaped body with a high-pitch, bone-condensing thread geometry allows for immediate loading due to the excellent primary stability achieved upon insertion.

Geometry characteristics

Precision Model Implant for Laboratory and Educational Use

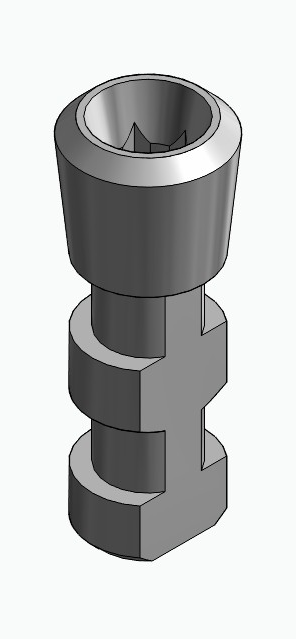

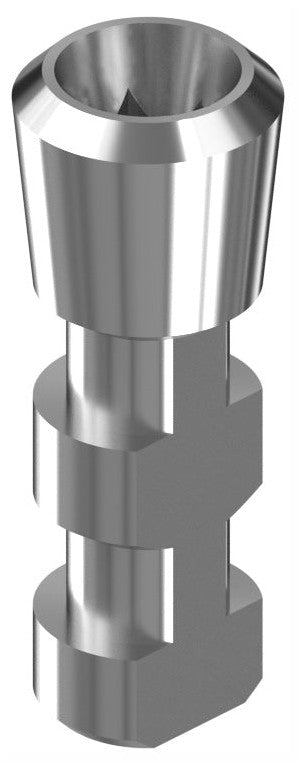

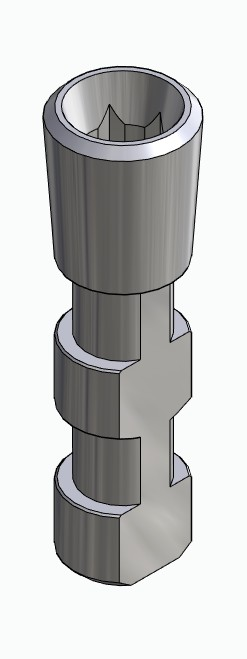

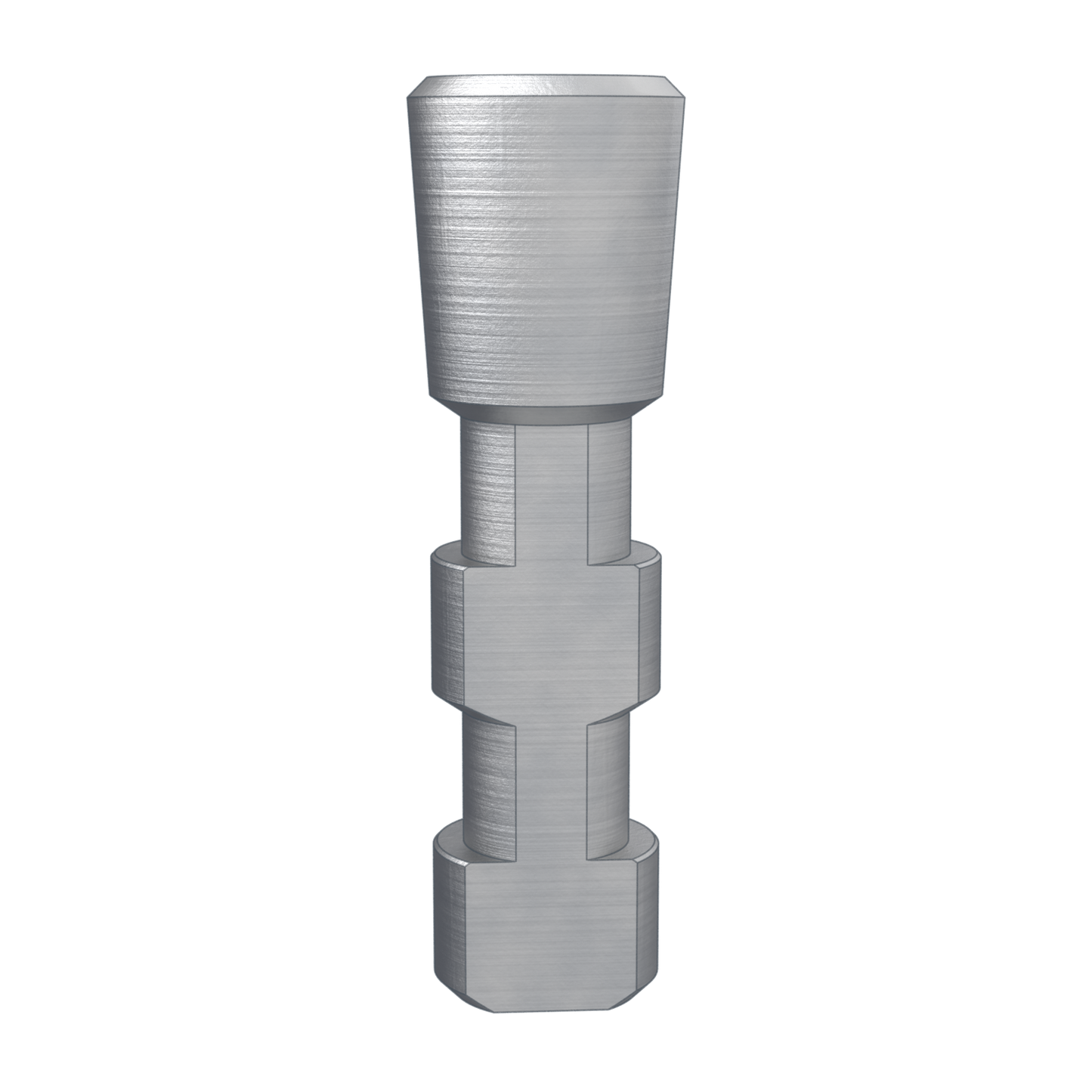

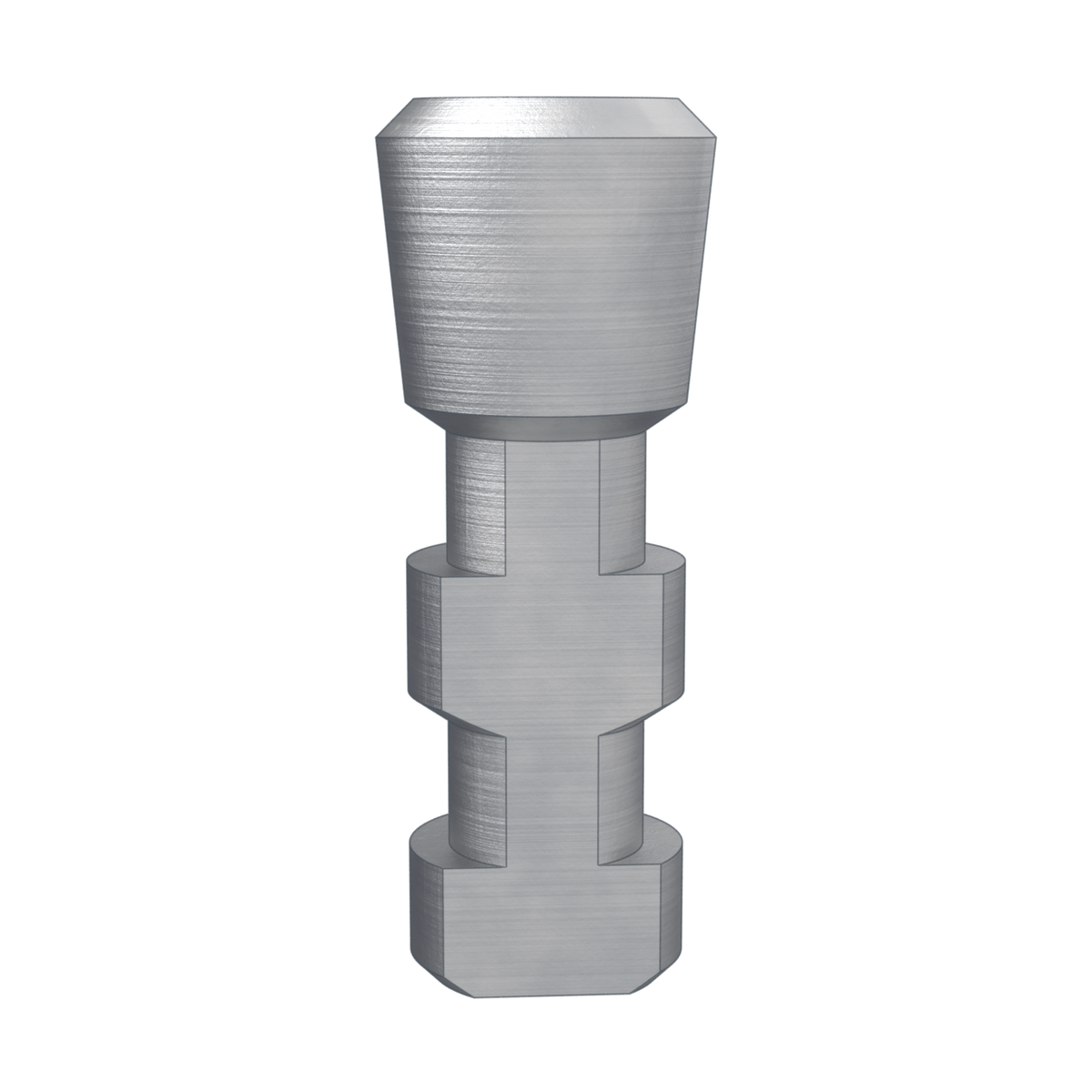

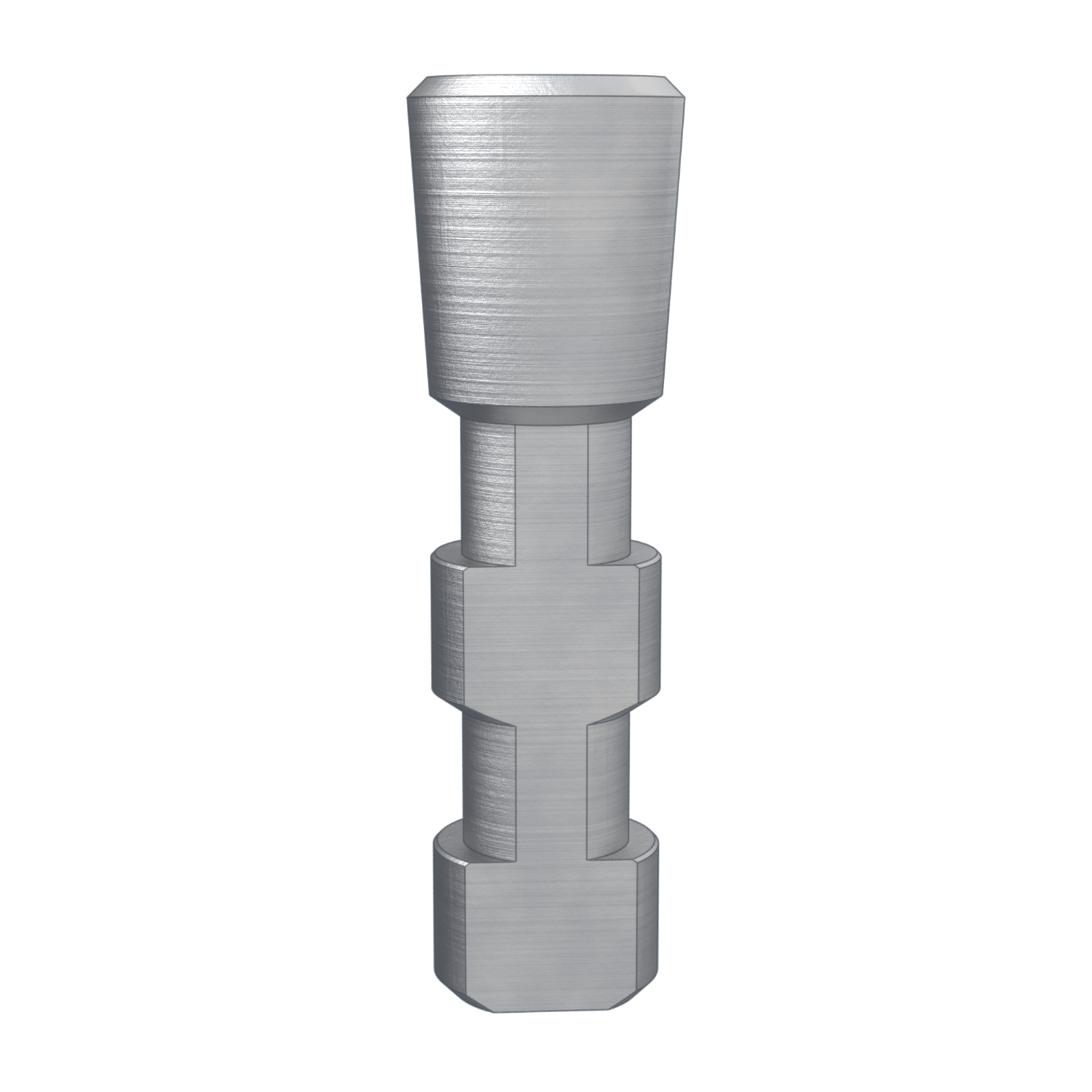

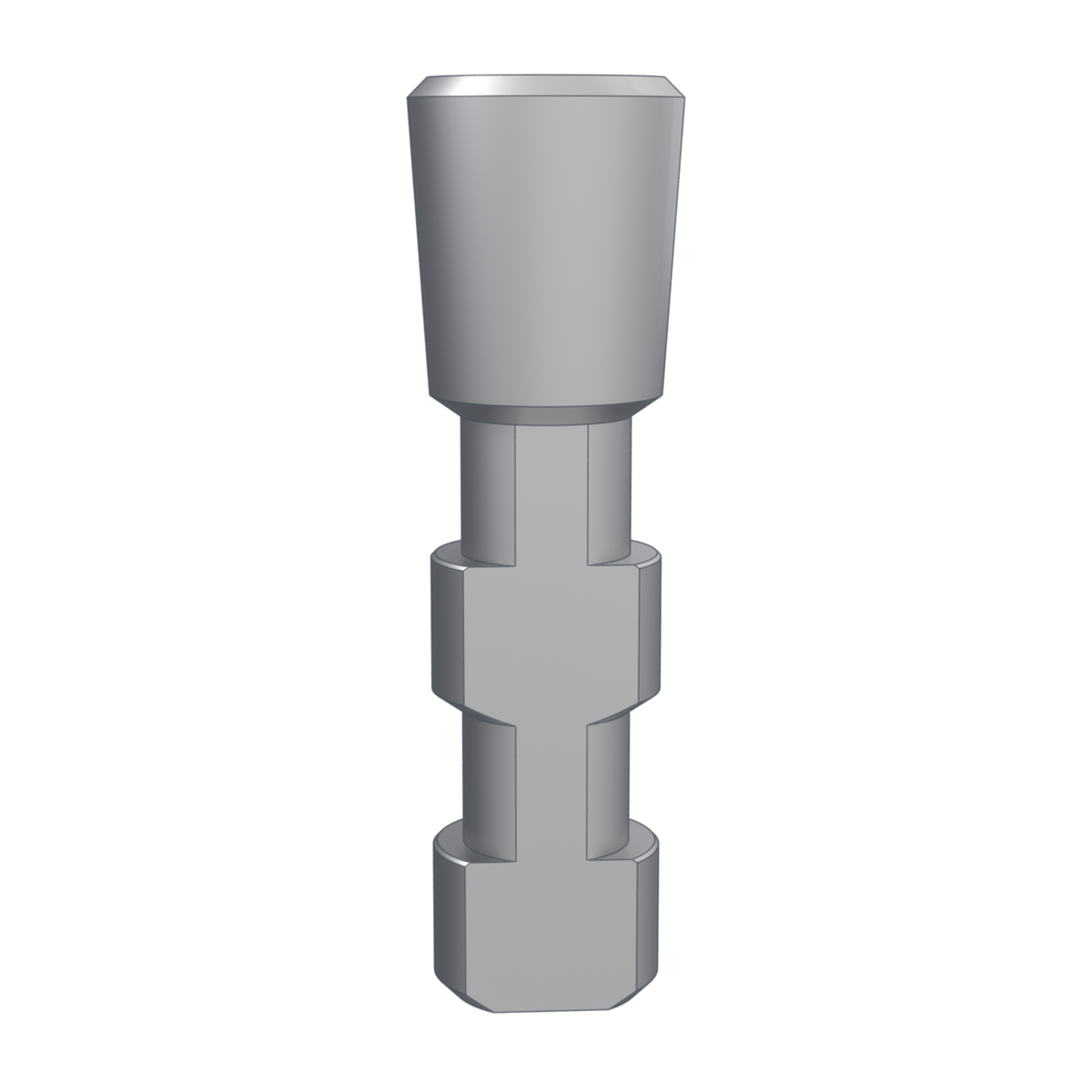

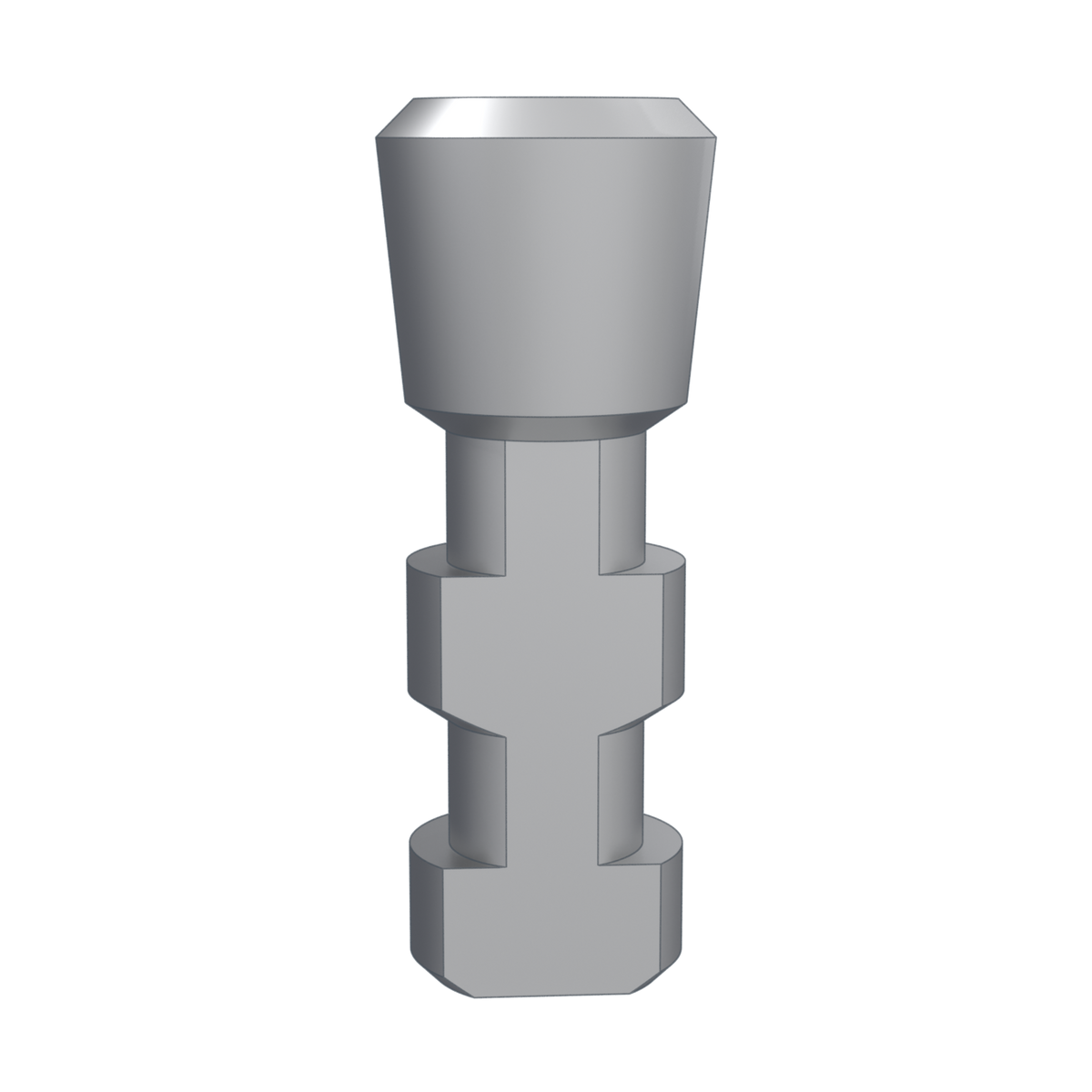

The Implant analog is a non-insertable model implant designed for laboratory use, accurately replicating the geometry and connection features of the original implant. It allows dental laboratories to safely and precisely fabricate prosthetic components without the need to handle the actual implant directly.

The technical implant is placed into a stone model, enabling all laboratory procedures—from model fabrication after impression-taking to trial fitting of prosthetic structures—to be carried out with the same accuracy as if working with the original implant. This ensures reliable fit and function of the final restoration during clinical application.

Main Advantages:

• Implant-compatible design: Precisely replicates the connection geometry of the original implant.
• For laboratory use: Inserted into a model made from the impression to allow prosthetic fabrication and test fitting.
• Durable, stable material: Precision-machined and suitable for multiple uses.
• Easy to use: Simple insertion into the stone model or working block.

Application:

The Implant analog is an essential tool in any dental laboratory working with implant-supported restorations, and is also ideal for training and demonstration purposes.

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected dimensions.
