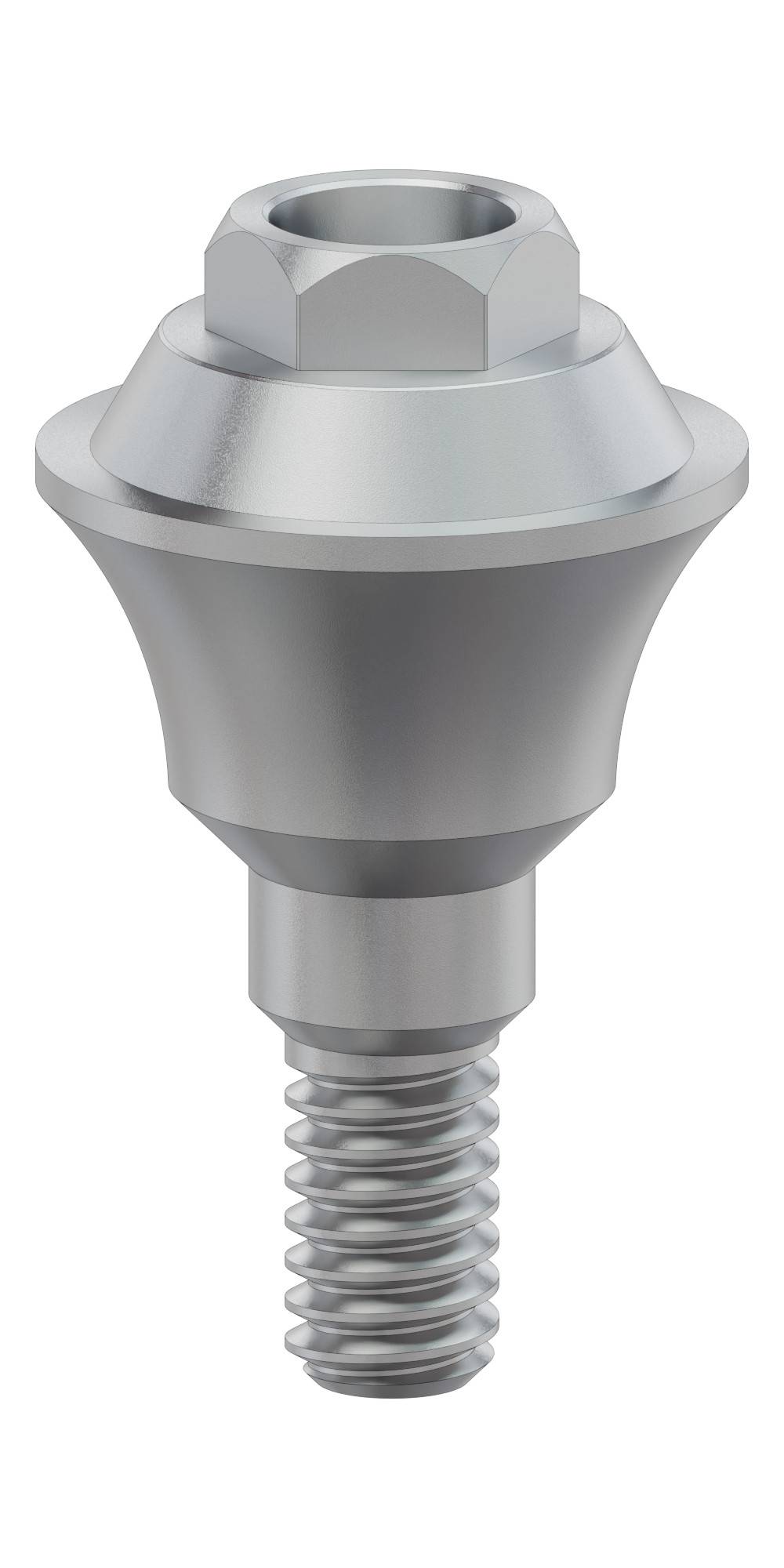

BIONIKA CORTICAL, Bite regsitration abutment, screwable, implant level

Brand characteristics

The BIONIKA Cortical implant system features an advanced Hex@con conical connection with a 30° taper angle, providing exceptionally precise and micromovement-free engagement.

This design allows for accurate open and closed tray impressions even in cases of greater angulation, while ensuring optimal force transmission between the abutment and the implant.

Placement at or slightly below the cortical level (0.5–1 mm) enhances long-term implant stability and supports bone level preservation.

The internal platform-switching configuration enables the bone to naturally grow over the implant shoulder, while the soft tissue forms a biological seal around the contact zone.

The conical, spirally micro-grooved cortical surface and self-locking thread structure ensure efficient load distribution, rapid osseointegration, and micromovement-free stability.

Its anatomical root-shaped body with a high-pitch, bone-condensing thread geometry allows for immediate loading due to the excellent primary stability achieved upon insertion.

Geometry characteristics

Screw-Retained Bite Registration Abutment for Implant-Level Use

The Bite regsitration abutment, screwable, implant level is a specialised component used to determine maxillomandibular relations during implant-supported prosthetic procedures. It is directly screwed into the implant, providing stable fixation throughout the bite registration process, eliminating inaccuracies caused by displacement.

The bite record enables the dental laboratory to produce a model that accurately reflects the patient’s oral anatomy—essential for creating a well-fitting, functional, and aesthetic restoration. The implant-level design allows for direct connection without the need for additional adapters.

Main Benefits:

• Implant-level retention: Direct connection to the implant – no accessories required.
• Screw-retained design: Provides a stable, non-moving position during registration.
• Accurate position transfer: Registered occlusion can be reliably transferred to the lab process.
• Biocompatible material: Sterilisable and suitable for clinical applications.
• The product includes the screw.

Application:

The Bite regsitration abutment, screwable, implant level is the ideal solution for single or multi-unit implant cases where a precise maxillomandibular registration is essential for fabricating the final prosthesis.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
