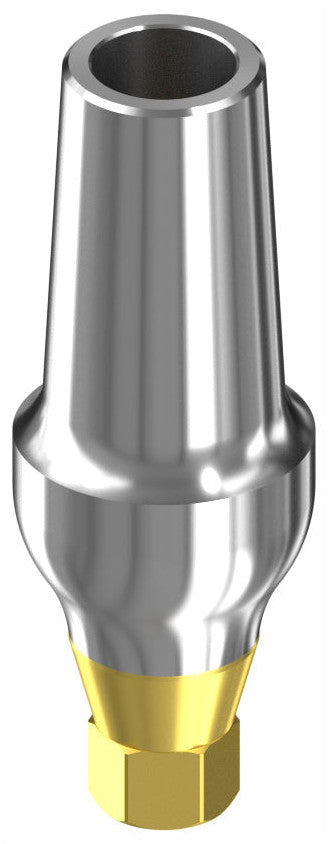

BIONIKA CORTICAL, Anatomic abutment, straight, positioned

Brand characteristics

The BIONIKA Cortical implant system features an advanced Hex@con conical connection with a 30° taper angle, providing exceptionally precise and micromovement-free engagement.

This design allows for accurate open and closed tray impressions even in cases of greater angulation, while ensuring optimal force transmission between the abutment and the implant.

Placement at or slightly below the cortical level (0.5–1 mm) enhances long-term implant stability and supports bone level preservation.

The internal platform-switching configuration enables the bone to naturally grow over the implant shoulder, while the soft tissue forms a biological seal around the contact zone.

The conical, spirally micro-grooved cortical surface and self-locking thread structure ensure efficient load distribution, rapid osseointegration, and micromovement-free stability.

Its anatomical root-shaped body with a high-pitch, bone-condensing thread geometry allows for immediate loading due to the excellent primary stability achieved upon insertion.

Geometry characteristics

Anatomically Shaped, Customisable Abutment for Implants with Indexed Orientation

The Anatomic abutment, straight, positioned is an implant-level, customisable (grindable) abutment designed to follow the natural tooth shape, facilitating the creation of aesthetically pleasing and functional prosthetic restorations. Its preformed anatomical contour requires less grinding while still allowing for individual adjustment during the clinical or laboratory procedure.

The indexed design ensures that the abutment is always repositioned in the same orientation, which is essential in multi-implant restorations or anterior aesthetic zone reconstructions, where the uniform fit of soft tissue contours and crown shapes is critical.

Main Advantages:

• Anatomical shape: Preformed abutment supports the creation of a natural-looking restoration.
• Straight design: Ideal when the prosthetic axis is aligned with or close to the implant axis.
• Indexed orientation: Fixed positioning ensures accurate re-insertion and alignment.
• Implant-level connection: Stable, direct fit to the implant.
• Biocompatible titanium: Sterilisable, durable and tissue-friendly material for long-term clinical use.
• The screw is included.

Indications:

The Anatomic abutment, straight, positioned is an ideal solution for implant cases requiring an aesthetic, natural appearance and precise repositioning—particularly in anterior zones or restorations supported by multiple implants.

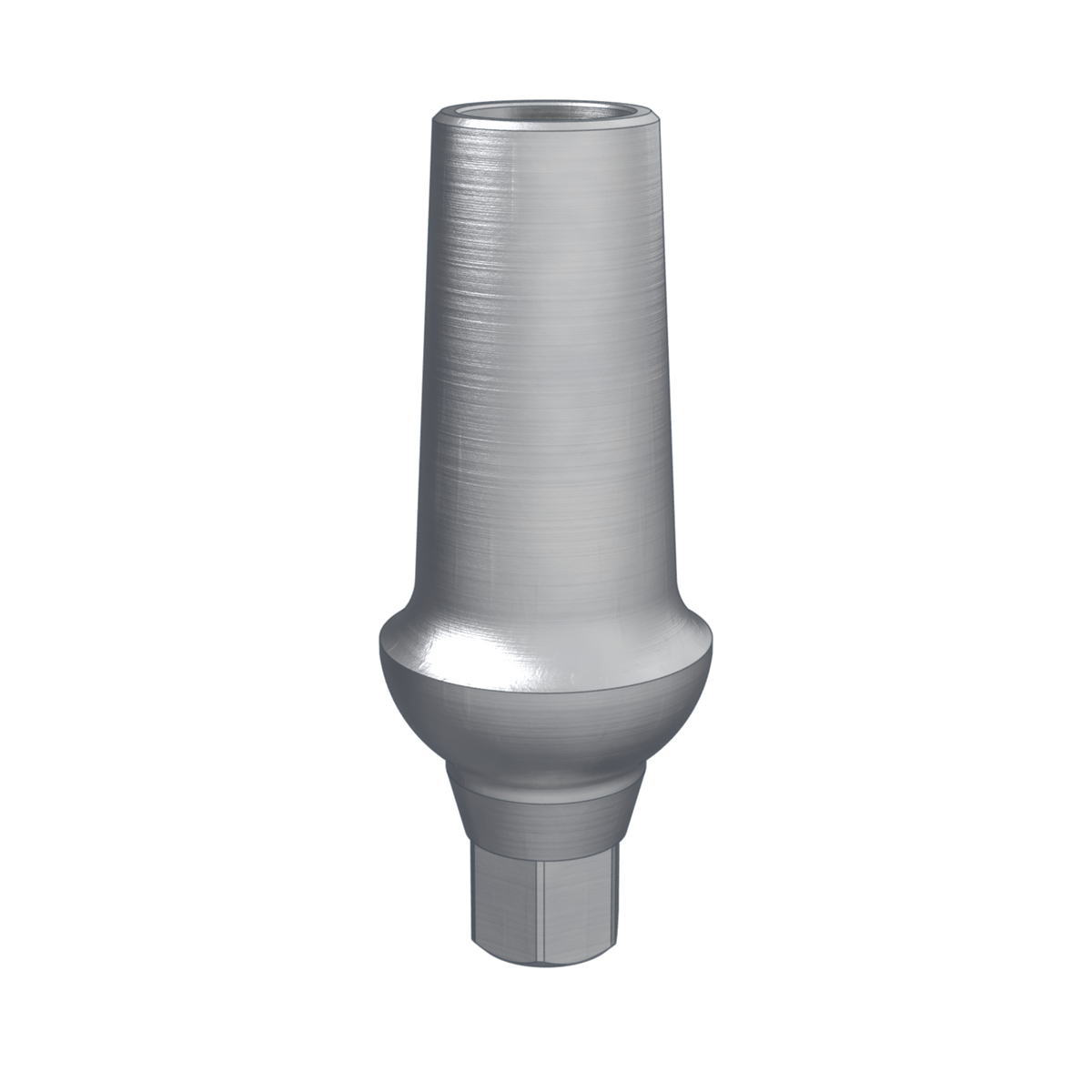

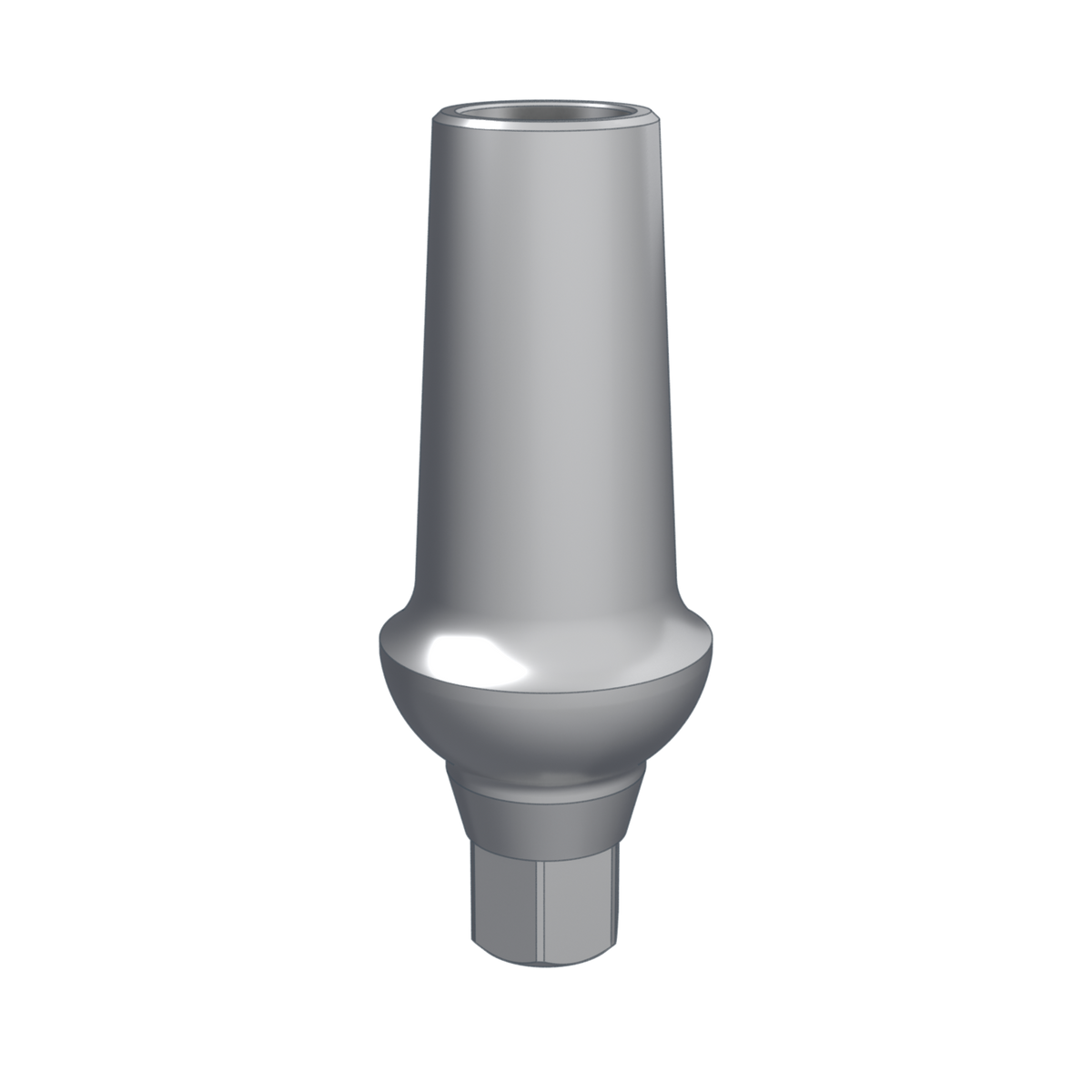

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
