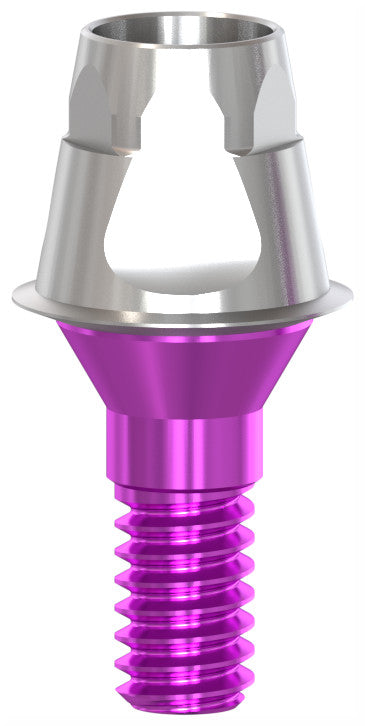

BIONIKA CONEFIT, Multi-unit SR abutment, straight, screwable

Brand characteristics

The BIONIKA Conefit implant system is based on a combination of a 60° centering Morse taper and a hexagonal connection, providing precise fit and micromovement-free stability between the abutment and the implant.

The two-piece version of the system offers outstanding versatility, accommodating more than 40 abutment geometries, while the one-piece variant is available with a collar or anatomical head design, featuring a neck height adapted to the mucosal thickness.

Implant placement at or slightly below the cortical level enhances long-term stability and supports bone level preservation.

Through its platform-switching design, the soft tissues form a biological seal around the implant shoulder, effectively preventing bacterial penetration.

The spirally micro-grooved, self-locking thread structure combined with the anatomical root-shaped body exerts a bone-condensing effect, facilitating dynamic load distribution and rapid osseointegration.

The rounded implant apex further improves surgical precision, allowing for subtle directional adjustments and secure positioning during placement.

Geometry characteristics

Straight SR-Type Multi-Unit Abutment with Screw-In Design for Cement-Free Prosthetic Systems

The Multi-unit SR abutment, straight, screwable is a self-engaging, screw-in prosthetic abutment with a straight profile, designed to connect to an implant or intermediate SR (Screw-Retained) multi-unit system. Its screw-in design enables secure fixation to the platform without the need for an additional retaining screw, while the straight geometry makes it an ideal solution when the implant axis is well aligned and no angulation correction is required.

This SR-type abutment is particularly well-suited for fully screw-retained restorations where the final prosthesis is accessible and cement-free. This significantly simplifies potential removal, maintenance, and reinsertion, especially in restorations involving multiple implants.

Main Advantages:

• SR system compatibility: Ideal for cement-free, screw-retained restorations.
• Straight alignment: Easy and direct fit when angulation correction is not necessary.
• Screw-in design: The abutment features an internal thread and does not require a separate retaining screw.
• Suitable for multi-unit restorations: Especially recommended for full-arch and implant-supported bridges.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Indications:

The Multi-unit SR abutment, straight, screwable is an excellent choice for cement-free, screw-retained prosthetic restorations on multiple implants where the implant angulation allows for straight insertion. It offers a stable, easy-to-use solution that supports efficient and reliable clinical workflows.

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected specifications.
