BIONIKA CONEFIT, Multi-unit SR abutment, angled, positioned, type-B

Brand characteristics

The BIONIKA Conefit implant system is based on a combination of a 60° centering Morse taper and a hexagonal connection, providing precise fit and micromovement-free stability between the abutment and the implant.

The two-piece version of the system offers outstanding versatility, accommodating more than 40 abutment geometries, while the one-piece variant is available with a collar or anatomical head design, featuring a neck height adapted to the mucosal thickness.

Implant placement at or slightly below the cortical level enhances long-term stability and supports bone level preservation.

Through its platform-switching design, the soft tissues form a biological seal around the implant shoulder, effectively preventing bacterial penetration.

The spirally micro-grooved, self-locking thread structure combined with the anatomical root-shaped body exerts a bone-condensing effect, facilitating dynamic load distribution and rapid osseointegration.

The rounded implant apex further improves surgical precision, allowing for subtle directional adjustments and secure positioning during placement.

Geometry characteristics

Angled, Indexed SR-Type Abutment for Screw-Retained Restorations with B-Type Orientation

The Multi-unit SR abutment, angled, positioned, type-B is an angulated prosthetic abutment for the SR (Screw-Retained) system, designed to compensate for non-ideal implant angulation. Its angled form allows alignment of the prosthetic axis with functional and aesthetic requirements, while providing precise indexed positioning.

The B-Type orientation ensures that a specific point (corner) on the connection surface always returns to the same position relative to the top of the abutment upon reinsertion. This guarantees consistent and repeatable positioning of the restoration, which is particularly important in multi-implant, screw-retained solutions.

A key benefit of the SR system is that the entire prosthetic structure can be screw-retained without cement, allowing restorations to remain accessible and removable for maintenance or servicing. The lower part of the abutment fits the SR-compatible multi-unit platform, while the upper part is designed to accept the screw-retained prosthetic component.

Main Advantages:

• Angulation correction: Enables compensation for implant misalignment.
• B-Type orientation: The connector’s corner always aligns in the same direction on reinsertion.
• SR system compatibility: Suitable for cement-free, screw-retained restorations.
• Precise positioning: Ensures optimal fit for multi-implant prosthetics.
• Biocompatible titanium: Durable, sterilisable, and tissue-friendly material.
• The product includes the retaining screw.

Indications:

The Multi-unit SR abutment, angled, positioned, type-B is the ideal solution for screw-retained, angulated restorations supported by multiple implants, where precise orientation, removability, and full system compatibility are essential.

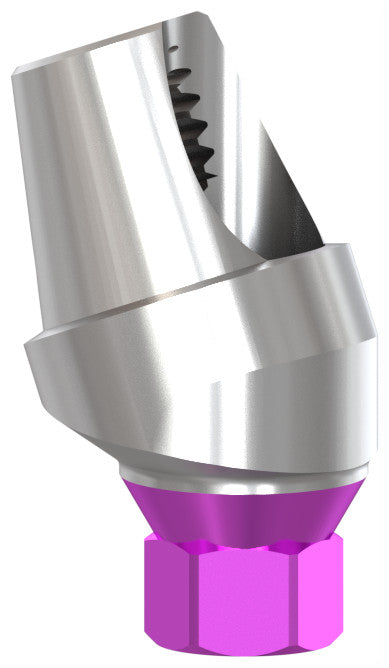

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected specifications.
