BIONIKA CONEFIT, Multi-unit SR abutment, angled, positioned, type-A

Brand characteristics

The BIONIKA Conefit implant system is based on a combination of a 60° centering Morse taper and a hexagonal connection, providing precise fit and micromovement-free stability between the abutment and the implant.

The two-piece version of the system offers outstanding versatility, accommodating more than 40 abutment geometries, while the one-piece variant is available with a collar or anatomical head design, featuring a neck height adapted to the mucosal thickness.

Implant placement at or slightly below the cortical level enhances long-term stability and supports bone level preservation.

Through its platform-switching design, the soft tissues form a biological seal around the implant shoulder, effectively preventing bacterial penetration.

The spirally micro-grooved, self-locking thread structure combined with the anatomical root-shaped body exerts a bone-condensing effect, facilitating dynamic load distribution and rapid osseointegration.

The rounded implant apex further improves surgical precision, allowing for subtle directional adjustments and secure positioning during placement.

Geometry characteristics

Angled, Indexed SR-Type Multi-Unit Abutment with A-Type Orientation for Screw-Retained Restorations

The Multi-unit SR abutment, angled, positioned, type-A is an angulated prosthetic abutment designed for the SR (Screw-Retained) system, which allows for correction of implant angulation while ensuring precise orientation of the final restoration. The angled design is ideal in cases where implants are not placed parallel and require angular compensation.

The A-Type indexing ensures that a specific flat surface of the abutment's connection always returns to the same position relative to the top part of the abutment with every reinsertion. This provides precise and repeatable alignment, which is especially important in multi-implant, screw-retained restorations where alignment of prosthetic axes is critical.

A major advantage of the SR system is that it is entirely cement-free, allowing the prosthesis to be easily accessed, removed, and reattached when needed. The lower part of the abutment fits into the compatible multi-unit platform, while the upper section is designed for secure fixation of the prosthetic components using the appropriate system screw.

Main Advantages:

• Angulation correction: Compensates for unfavourable implant angulations.
• A-Type orientation: The flat connection surface always aligns in the same position.
• SR system compatibility: Designed for cement-free, screw-retained restorations.
• Reliable positioning: Ideal for precise fit in multi-implant restorations.
• Biocompatible titanium: Sterilisable, durable, and tissue-friendly material for clinical use.
• The product includes the retaining screw.

Indications:

The Multi-unit SR abutment, angled, positioned, type-A is the ideal choice for full-arch or partial screw-retained restorations where angulation correction, precise orientation, and cement-free prosthetic attachment are of critical importance.

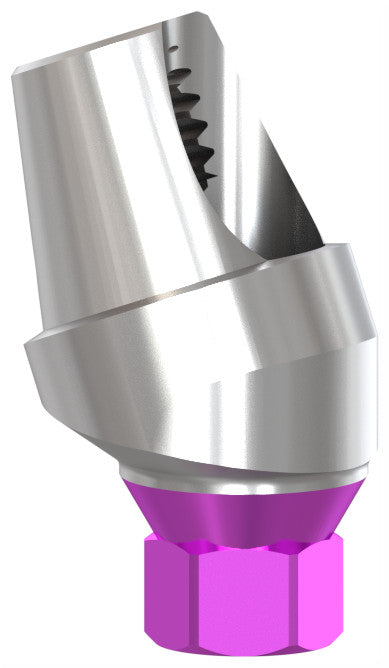

The product image is for illustration purposes only; actual colour and geometry may vary depending on the selected specifications.
