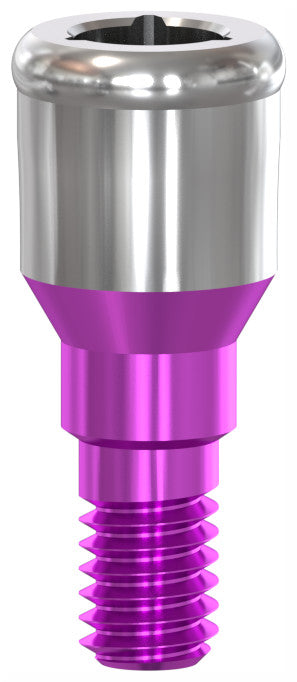

BIONIKA CONEFIT, Locator abutment, straight

Brand characteristics

The BIONIKA Conefit implant system is based on a combination of a 60° centering Morse taper and a hexagonal connection, providing precise fit and micromovement-free stability between the abutment and the implant.

The two-piece version of the system offers outstanding versatility, accommodating more than 40 abutment geometries, while the one-piece variant is available with a collar or anatomical head design, featuring a neck height adapted to the mucosal thickness.

Implant placement at or slightly below the cortical level enhances long-term stability and supports bone level preservation.

Through its platform-switching design, the soft tissues form a biological seal around the implant shoulder, effectively preventing bacterial penetration.

The spirally micro-grooved, self-locking thread structure combined with the anatomical root-shaped body exerts a bone-condensing effect, facilitating dynamic load distribution and rapid osseointegration.

The rounded implant apex further improves surgical precision, allowing for subtle directional adjustments and secure positioning during placement.

Geometry characteristics

Precision Attachment with Low Profile Design for Removable Dentures

The Locator abutment, straight is an implant-level precision component designed for securing removable prostheses, compatible with the well-established Locator retention system. Its straight configuration is ideal when the implant and prosthesis axes are well aligned, and no angulation correction is required.

The low-profile design enhances patient comfort, especially in cases with limited interocclusal space. The Locator system functions with flexible retention inserts that are interchangeable and available in various retention strengths, allowing customisation of retention and removability to suit individual anatomical and clinical needs.

Main Advantages:

• Implant-level connection: Provides a stable, direct fit to the implant.
• Straight design: Suitable for cases without the need for angulation correction.
• Locator compatibility: Works with proven, replaceable retention inserts.
• Low profile: Ideal for limited vertical space and ensures patient comfort.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Application Area:

The Locator abutment, straight is an excellent solution for retaining removable dentures where reliable retention, low profile, and user-friendly handling are key. It is suitable for both fully and partially edentulous cases.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
