BIONIKA CONEFIT, Ball abutment, OC, normal

Brand characteristics

The BIONIKA Conefit implant system is based on a combination of a 60° centering Morse taper and a hexagonal connection, providing precise fit and micromovement-free stability between the abutment and the implant.

The two-piece version of the system offers outstanding versatility, accommodating more than 40 abutment geometries, while the one-piece variant is available with a collar or anatomical head design, featuring a neck height adapted to the mucosal thickness.

Implant placement at or slightly below the cortical level enhances long-term stability and supports bone level preservation.

Through its platform-switching design, the soft tissues form a biological seal around the implant shoulder, effectively preventing bacterial penetration.

The spirally micro-grooved, self-locking thread structure combined with the anatomical root-shaped body exerts a bone-condensing effect, facilitating dynamic load distribution and rapid osseointegration.

The rounded implant apex further improves surgical precision, allowing for subtle directional adjustments and secure positioning during placement.

Geometry characteristics

Implant-level ball abutment designed for securing removable dentures with OT-CAP retention

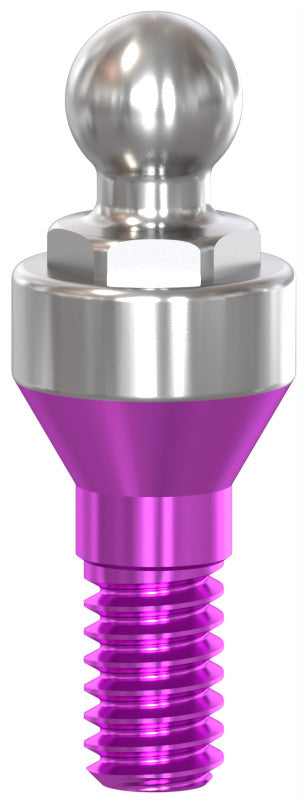

The Ball abutment, OC, normal is an implant-level attachment for removable prostheses, fully compatible with the OT-CAP retention system. The standard version features a 2.5 mm diameter ball head, offering reliable retention for most clinical scenarios and ensuring long-term stability for the denture during daily use.

OC-type ball abutments are used in combination with the OT-CAP system’s specialized plastic matrices, which are designed to fit the ball head precisely. This configuration allows the patient to easily remove and reinsert the prosthesis, while maintaining secure retention throughout daily wear.

Main Benefits:

• Standard ball size (Ø2.5 mm): Excellent retention force and broad clinical applicability.
• OT-CAP compatibility: Proven and user-friendly retention system.
• Implant-level connection: Secure and precise fit with the implant.
• Ideal for removable prostheses: Easy for the patient to manage, yet stable and reliable.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Application:

The Ball abutment, OC, normal is an excellent solution for retaining full or partial removable dentures when strong and reliable retention is required, and the implant angulation is suitable for ball attachment use.

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
