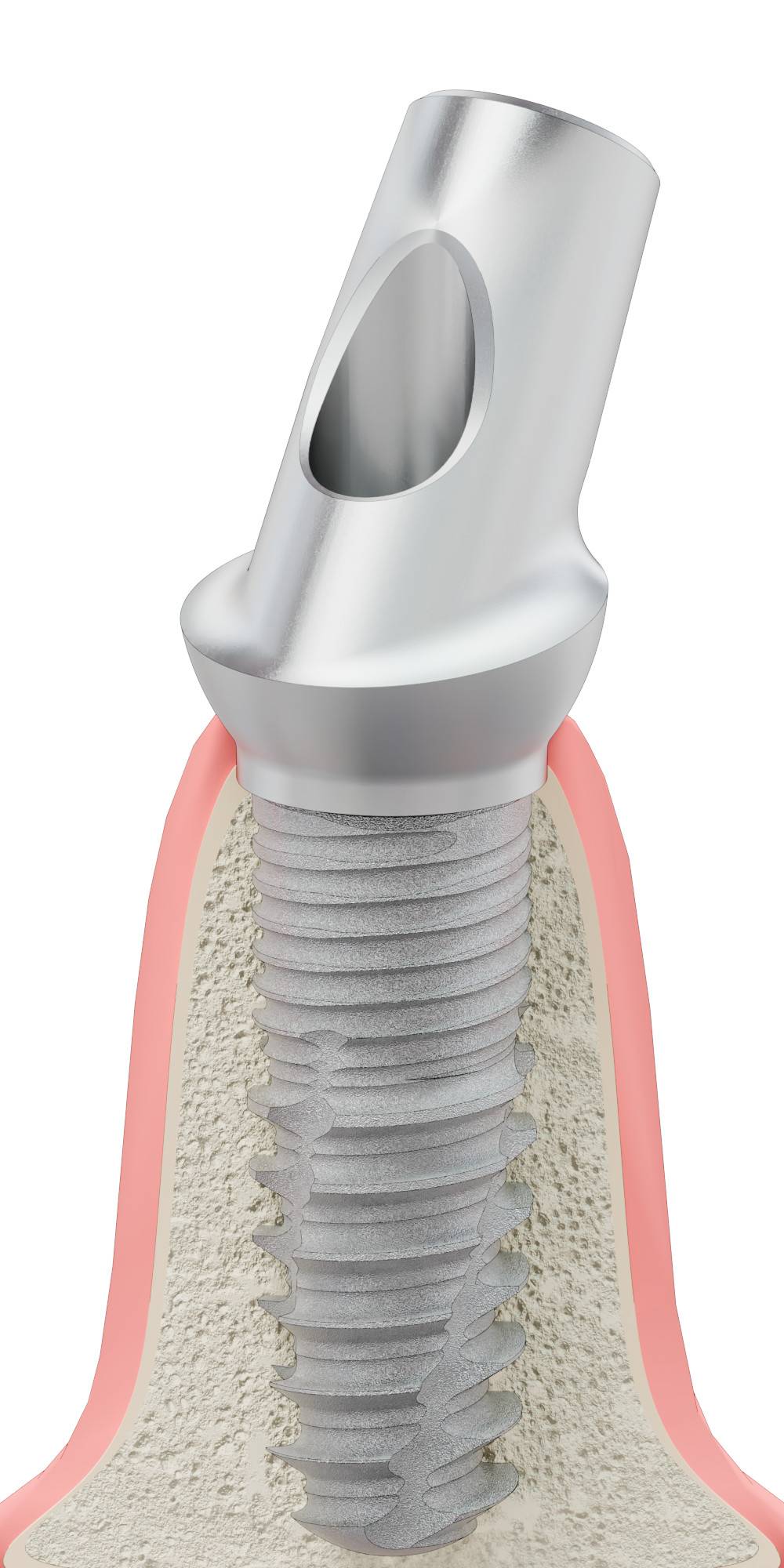

BIONIKA CONEFIT, Anatomic abutment, angled, 35°, positioned, type-A

Brand characteristics

The BIONIKA Conefit implant system is based on a combination of a 60° centering Morse taper and a hexagonal connection, providing precise fit and micromovement-free stability between the abutment and the implant.

The two-piece version of the system offers outstanding versatility, accommodating more than 40 abutment geometries, while the one-piece variant is available with a collar or anatomical head design, featuring a neck height adapted to the mucosal thickness.

Implant placement at or slightly below the cortical level enhances long-term stability and supports bone level preservation.

Through its platform-switching design, the soft tissues form a biological seal around the implant shoulder, effectively preventing bacterial penetration.

The spirally micro-grooved, self-locking thread structure combined with the anatomical root-shaped body exerts a bone-condensing effect, facilitating dynamic load distribution and rapid osseointegration.

The rounded implant apex further improves surgical precision, allowing for subtle directional adjustments and secure positioning during placement.

Geometry characteristics

Customisable Abutment for High-Angle Correction with Natural Contour and Precise Orientation

The Anatomic abutment, angled, 35°, positioned, type-A is an implant-level, customisable (grindable) abutment developed for implants exhibiting significant axial deviation. The 35° angulation allows for the correction of major discrepancies between the implant and prosthetic axes without compromising aesthetics or functionality.

The Type A indexed design ensures that the abutment is always repositioned in the same orientation. In this design, a specific flat surface of the connection consistently aligns with the same direction relative to the top of the abutment. This guarantees precise orientation, which is essential in multi-implant restorations.

Main Advantages:

• 35° angle correction: Outstanding capability to correct major axial deviations.
• Anatomical shape: Preformed design promotes natural appearance and gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures precise repositioning.
• Customisable design: Individually shapeable according to clinical or laboratory needs.
• Implant-level connection: Stable and reliable fit to the implant.
• Biocompatible titanium: Durable, tissue-friendly, and sterilisable material.
• The screw is included.

Indications:

The Anatomic abutment, angled, 35°, positioned, type-A is the ideal solution when the implant is significantly misaligned with the desired prosthetic axis and precise orientation along with a natural appearance are key—such as in restorations involving multiple implants.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
