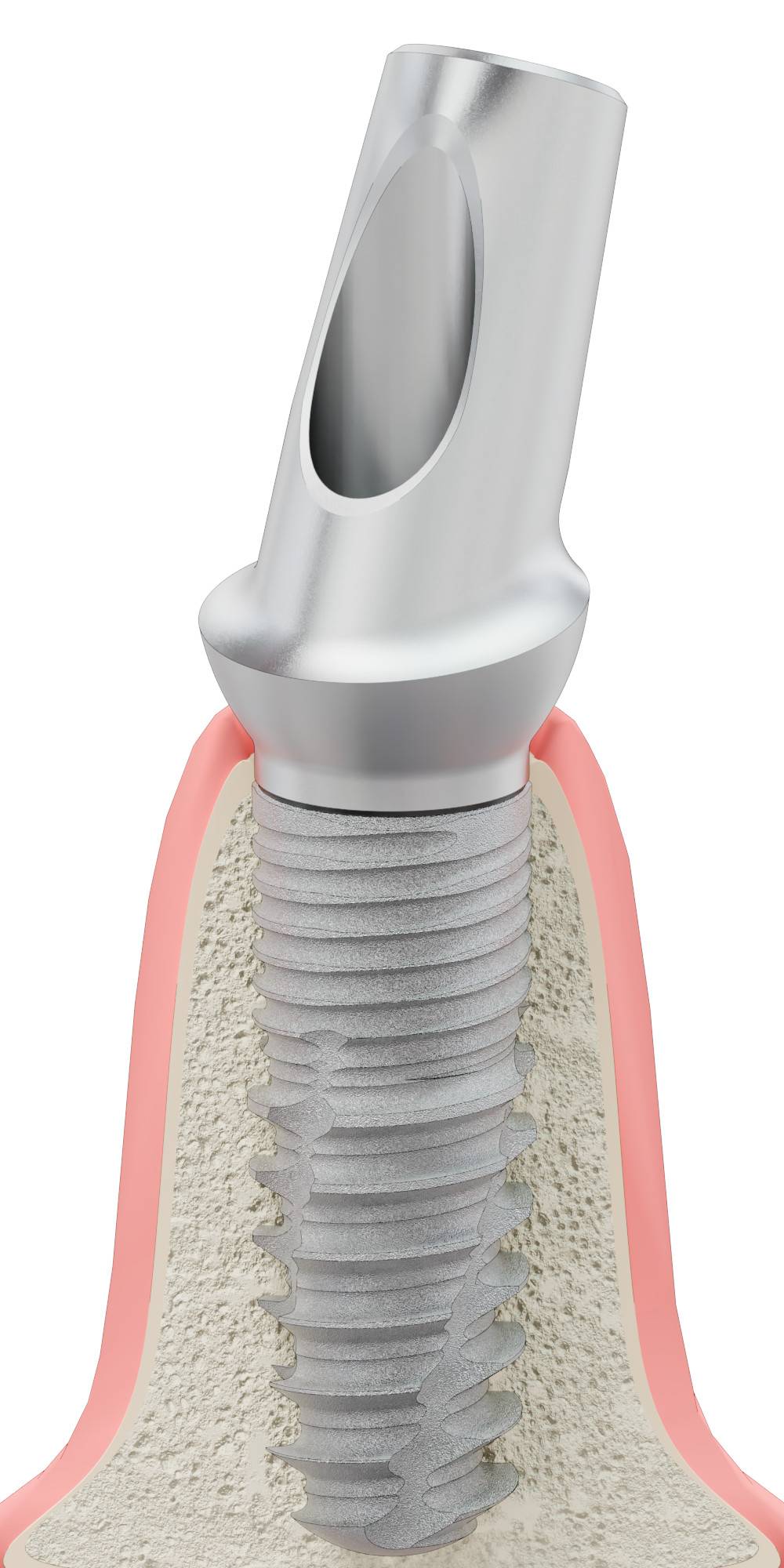

BIONIKA CONEFIT, Anatomic abutment, angled, 25°, positioned, type-A

Brand characteristics

The BIONIKA Conefit implant system is based on a combination of a 60° centering Morse taper and a hexagonal connection, providing precise fit and micromovement-free stability between the abutment and the implant.

The two-piece version of the system offers outstanding versatility, accommodating more than 40 abutment geometries, while the one-piece variant is available with a collar or anatomical head design, featuring a neck height adapted to the mucosal thickness.

Implant placement at or slightly below the cortical level enhances long-term stability and supports bone level preservation.

Through its platform-switching design, the soft tissues form a biological seal around the implant shoulder, effectively preventing bacterial penetration.

The spirally micro-grooved, self-locking thread structure combined with the anatomical root-shaped body exerts a bone-condensing effect, facilitating dynamic load distribution and rapid osseointegration.

The rounded implant apex further improves surgical precision, allowing for subtle directional adjustments and secure positioning during placement.

Geometry characteristics

Customisable Abutment with Natural Contour and Precise Orientation for Extended Angle Correction

The Anatomic abutment, angled, 25°, positioned, type-A is an implant-level, customisable (grindable) abutment designed for cases requiring significant angle correction without compromising on aesthetic or functional outcomes. The 25° angulation allows for the compensation of major axis deviations, while the anatomical shape supports the creation and maintenance of a natural soft tissue profile.

The Type A indexed design ensures that a defined flat surface of the connection always aligns in the same direction relative to the top part of the abutment. This fixed orientation is particularly advantageous in multi-implant restorations, as it ensures precision in fit, aesthetics, and technical execution.

Main Advantages:

• 25° angle correction: Ideal for compensating substantial axial deviations.
• Anatomical shape: Preformed geometry supports the formation and preservation of natural gingival contours.
• Indexed orientation (Type A): Fixed flat surface ensures accurate repositioning every time.
• Customisable design: Allows individual shaping during laboratory or clinical procedures.
• Implant-level fit: Stable and reliable connection with the implant.
• Biocompatible titanium: Sterilisable, durable, and safe for long-term clinical use.
• The screw is included.

Indications:

The Anatomic abutment, angled, 25°, positioned, type-A is an ideal solution in cases where the implant axis significantly diverges from the intended prosthetic axis, and precise orientation and aesthetic integration are essential.

The product image is for illustration purposes only. The colour and geometry of the product may vary depending on the selected size.
