BIONIKA C1, Ball abutment, OC, normal

Brand characteristics

The BIONIKA C1 implant system is compatible with the MIS® C1® platform and features an internal conical connection (Conical-Connection) that ensures micromovement-free fitting and optimal load distribution. The 12° Morse taper provides a stable, bacteria-tight seal between the abutment and the implant, promoting long-term bone and soft tissue preservation.

The spirally micro-grooved, self-compressing thread design offers high primary stability, while the platform switching configuration supports biological width maintenance and bone-level protection. Its anatomical root-shaped body and self-cutting, self-locking threads allow for quick and precise insertion with minimal surgical trauma.

The BIONIKA C1 system is an ideal solution for aesthetic and functional implant restorations where bone preservation, stability, and long-term reliability are essential.

Geometry characteristics

Implant-level ball abutment designed for securing removable dentures with OT-CAP retention

The Ball abutment, OC, normal is an implant-level attachment for removable prostheses, fully compatible with the OT-CAP retention system. The standard version features a 2.5 mm diameter ball head, offering reliable retention for most clinical scenarios and ensuring long-term stability for the denture during daily use.

OC-type ball abutments are used in combination with the OT-CAP system’s specialized plastic matrices, which are designed to fit the ball head precisely. This configuration allows the patient to easily remove and reinsert the prosthesis, while maintaining secure retention throughout daily wear.

Main Benefits:

• Standard ball size (Ø2.5 mm): Excellent retention force and broad clinical applicability.
• OT-CAP compatibility: Proven and user-friendly retention system.
• Implant-level connection: Secure and precise fit with the implant.
• Ideal for removable prostheses: Easy for the patient to manage, yet stable and reliable.
• Biocompatible titanium: Durable, sterilizable, and tissue-friendly material.

Application:

The Ball abutment, OC, normal is an excellent solution for retaining full or partial removable dentures when strong and reliable retention is required, and the implant angulation is suitable for ball attachment use.

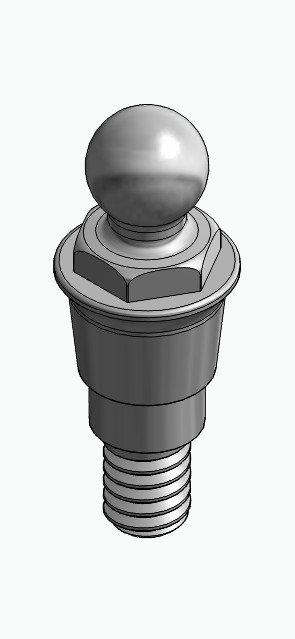

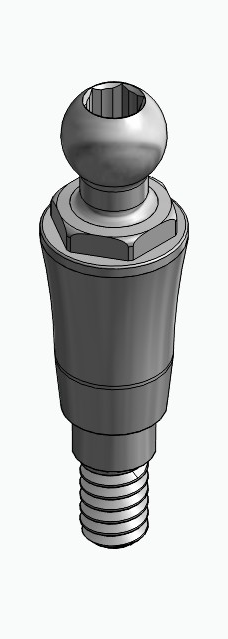

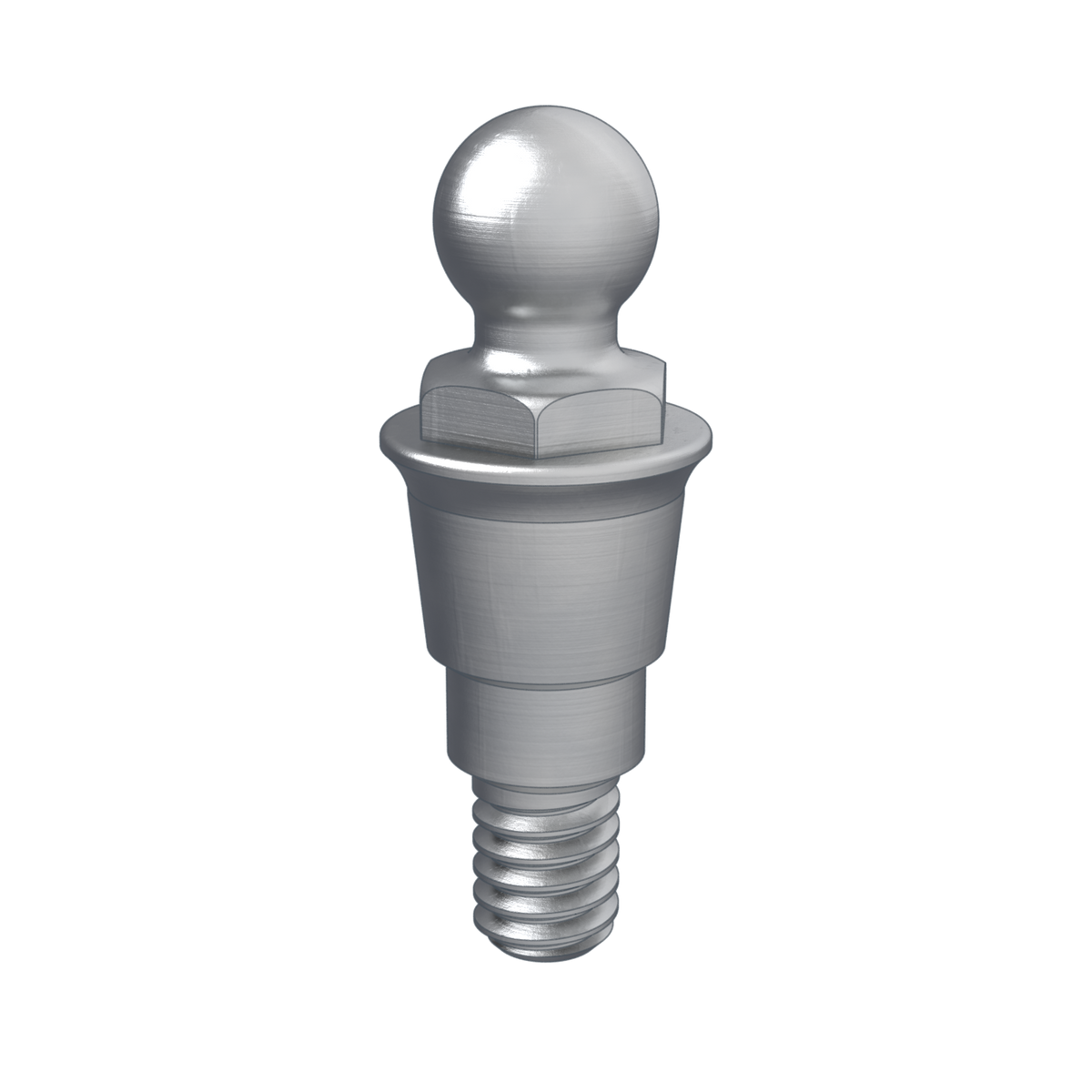

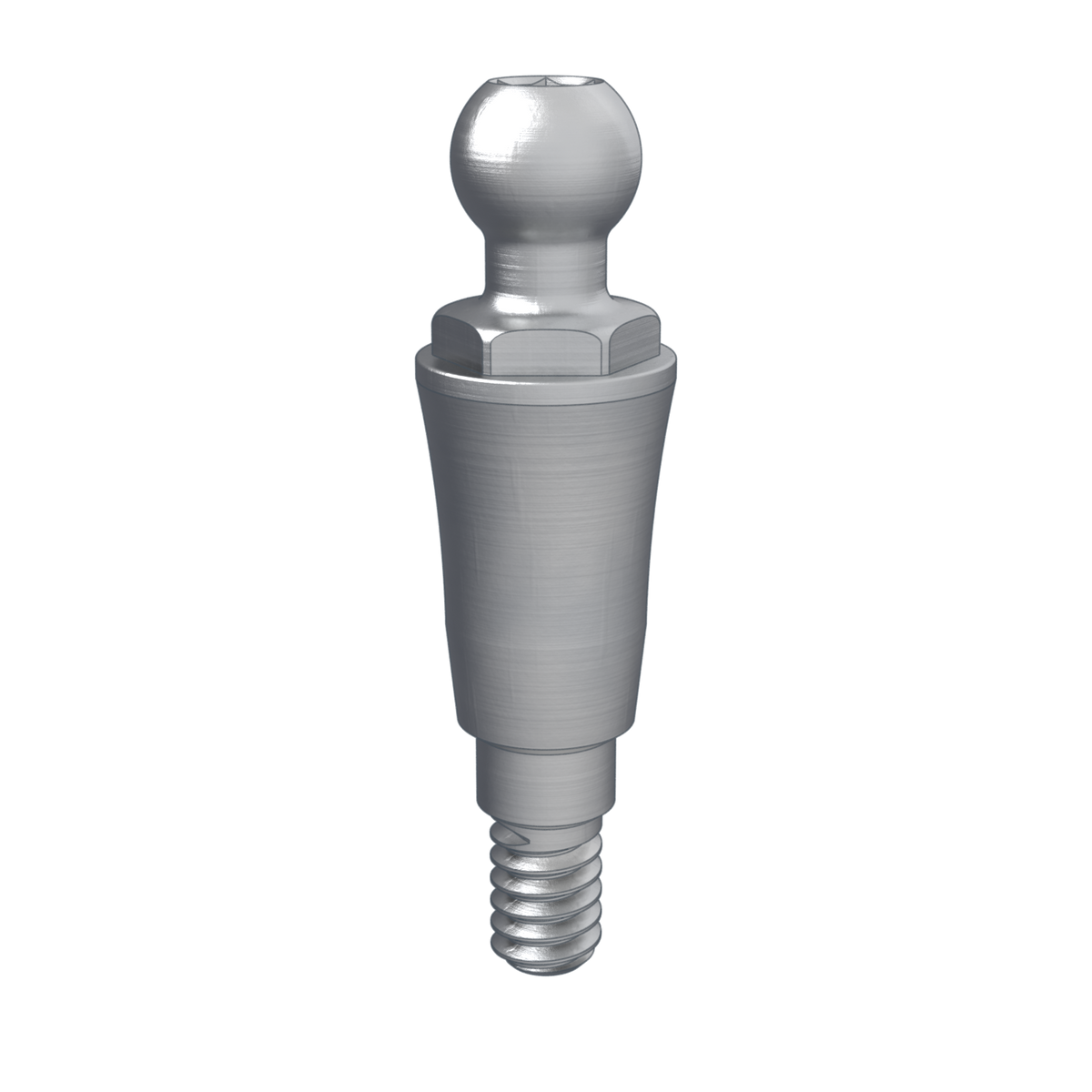

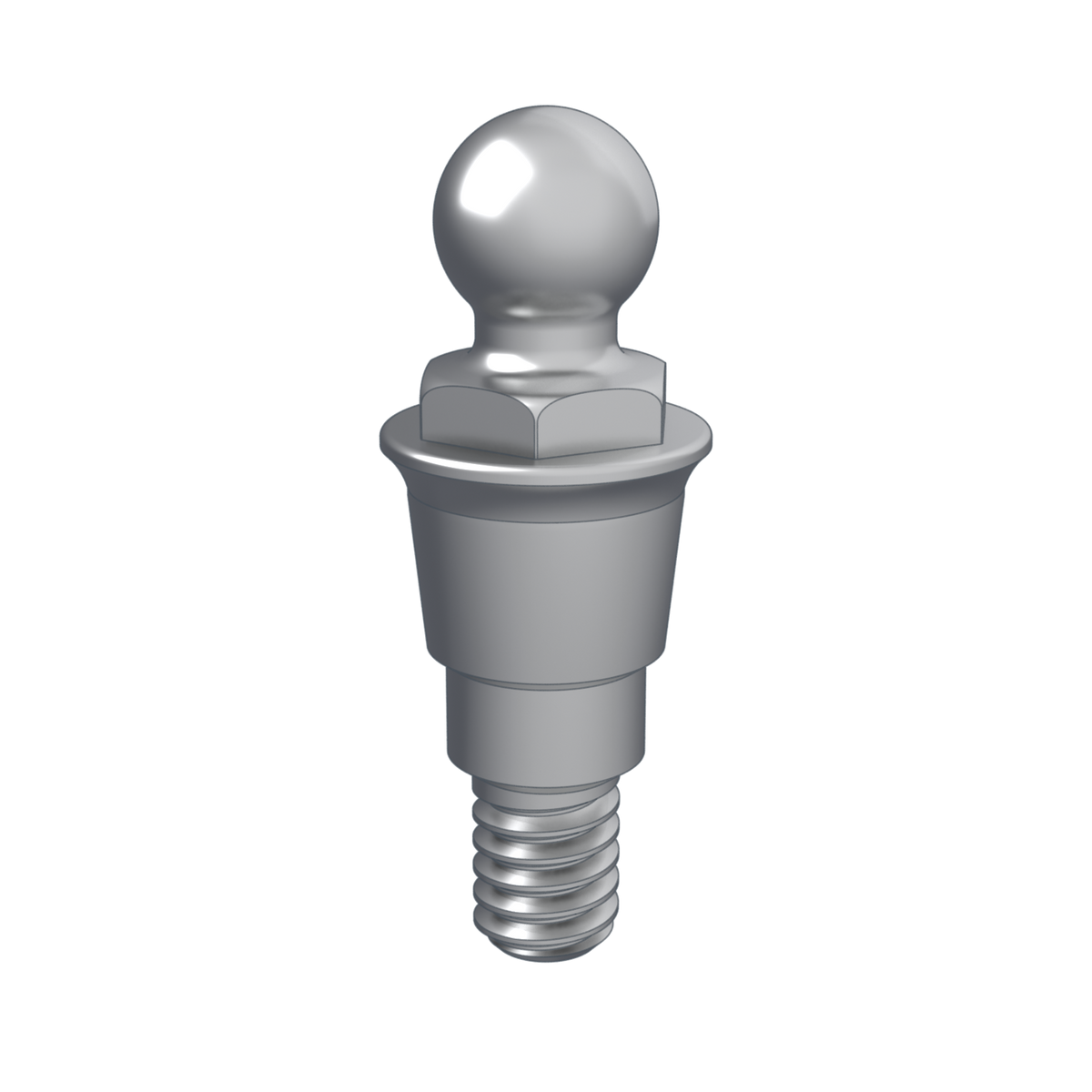

The product image is for illustration purposes only. Colour and geometry may vary depending on the selected dimensions.
